| Item | Pneumatic Vibrator |
|---|---|
| Adjustable Speed | Yes |
| Air Flow Rate | 2.5 CFM @ 60 psi, 5.5 CFM @ 80 psi |
| Application | Automotive, Bio-Tech, Chemical, Plastics, Plating And Food Industries |
| Bin Weight Capacity | 750 lbs. |
| Cfm @ 60 Psi | 4.5 CFM |
| Cfm @ 80 Psi | 5.5 CFM |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Force @ Psi | 45 lbf. @ 60 psi, 75 lbf. @ 80 psi |
| Force Rating | 75 lbs. |
| Housing Material | Cast Iron |
| Inlet Connection Type | NPT |
| Inlet Port Size | 1/8" |
| Inlet Port Type | NPT |
| Max. Pressure | 80 psi |
| Max. Temp. | 350°F |
| Maximum Force | 75 lbf. |
| Maximum Inlet Pressure | 80 psi |
| Maximum Vibration Speed | 10500 VPM |
|---|---|
| Mount Plate Included | No |
| Mount Plate Required | Yes |
| Mount Type | Foot |
| Mounting | Foot |
| Mounting Plate | Sold Separately |
| Muffler | Included |
| Overall Dim. | 4.88" x 2.01" x 2.32" |
| Overall Height | 2.312" |
| Overall Length | 4 7/8" |
| Overall Width | 2" |
| Pneumatic Vibrator Type | Turbine |
| Series | VS Series |
| Sound Level | 67 dBA |
| Speed @ 60 Psi | 8000 VPM |
| Speed @ 80 Psi | 10500 VPM |
| Vibration Speeds @ Psi | 10500 VPM @ 80 psi, 8000 VPM @ 60 psi |
| Vibrator Type | Turbine |
| standard | ATEX CERTIFIED, CE CERTIFIED |
| Height (cm) | 5.87 |
|---|---|
| Length (cm) | 12.38 |
| Width (cm) | 5.08 |
| HS Code | 8479899895 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.315 |
| Style | Model | Overall Length | Overall Width | Bin Weight Capacity | Overall Height | Speed @ 60 Psi | Force Rating | Max. Pressure | Speed @ 80 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

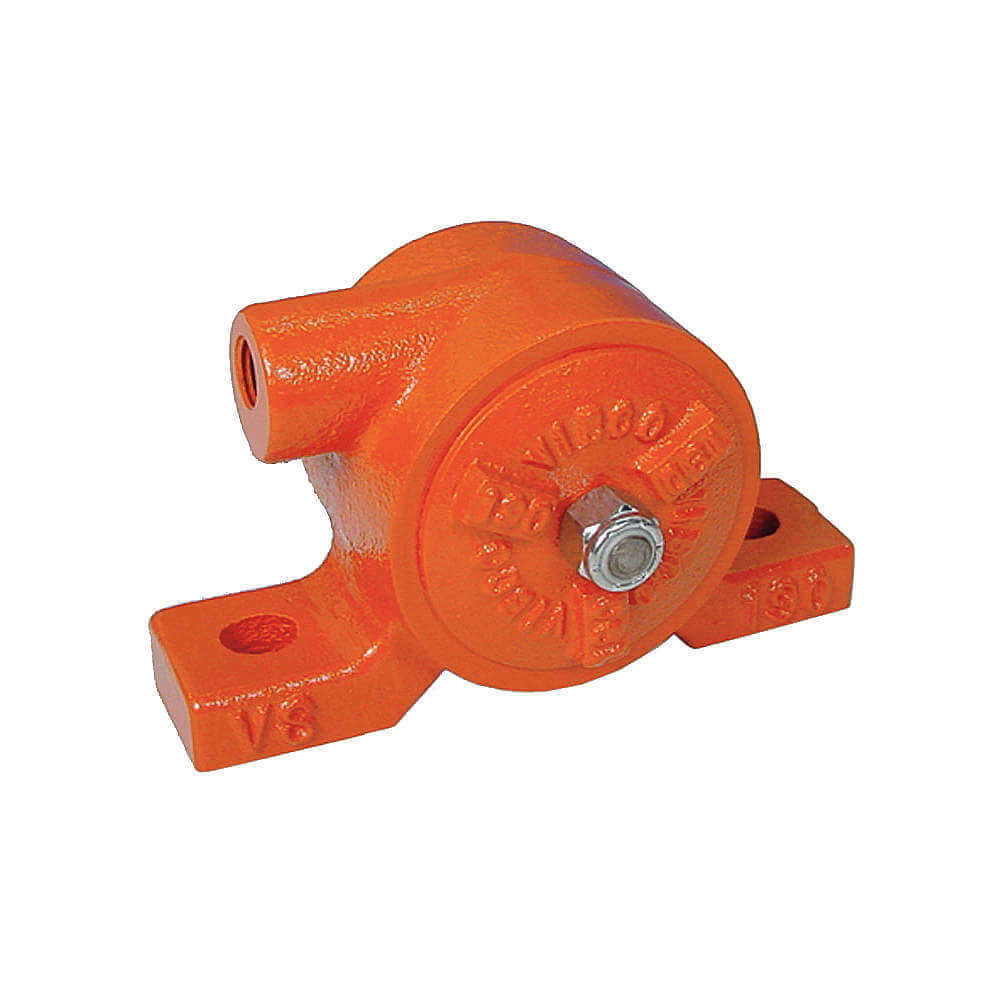

| A | VS-190 | 5.437" | 3 1/4" | 5000 lbs. | 3.062" | 4200 VPM | 270 lbs. | 80 psi | 7200 VPM | $421.04 | |

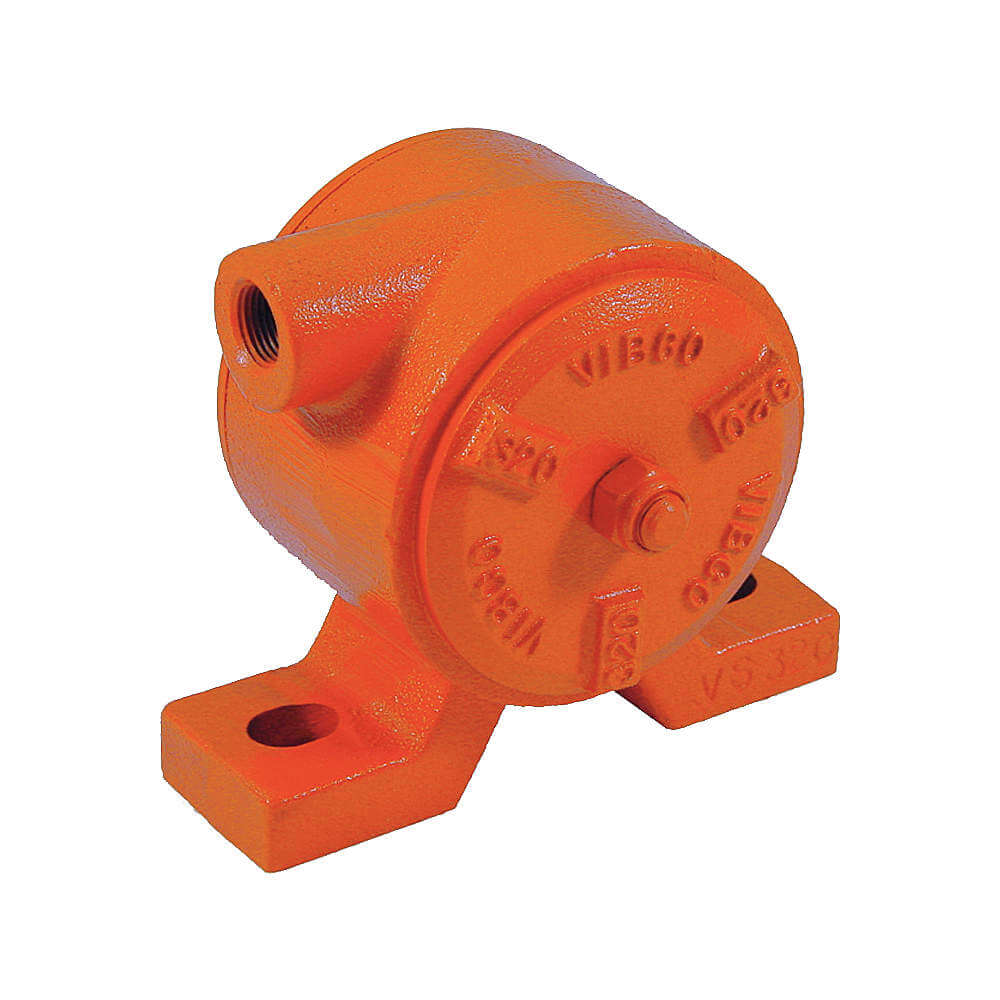

| B | VS-320 | 5 1/2" | 4" | 7000 lbs. | 4 3/4" | 5200 VPM | 600 lbs. | 80 psi | 6800 VPM | $515.06 | |

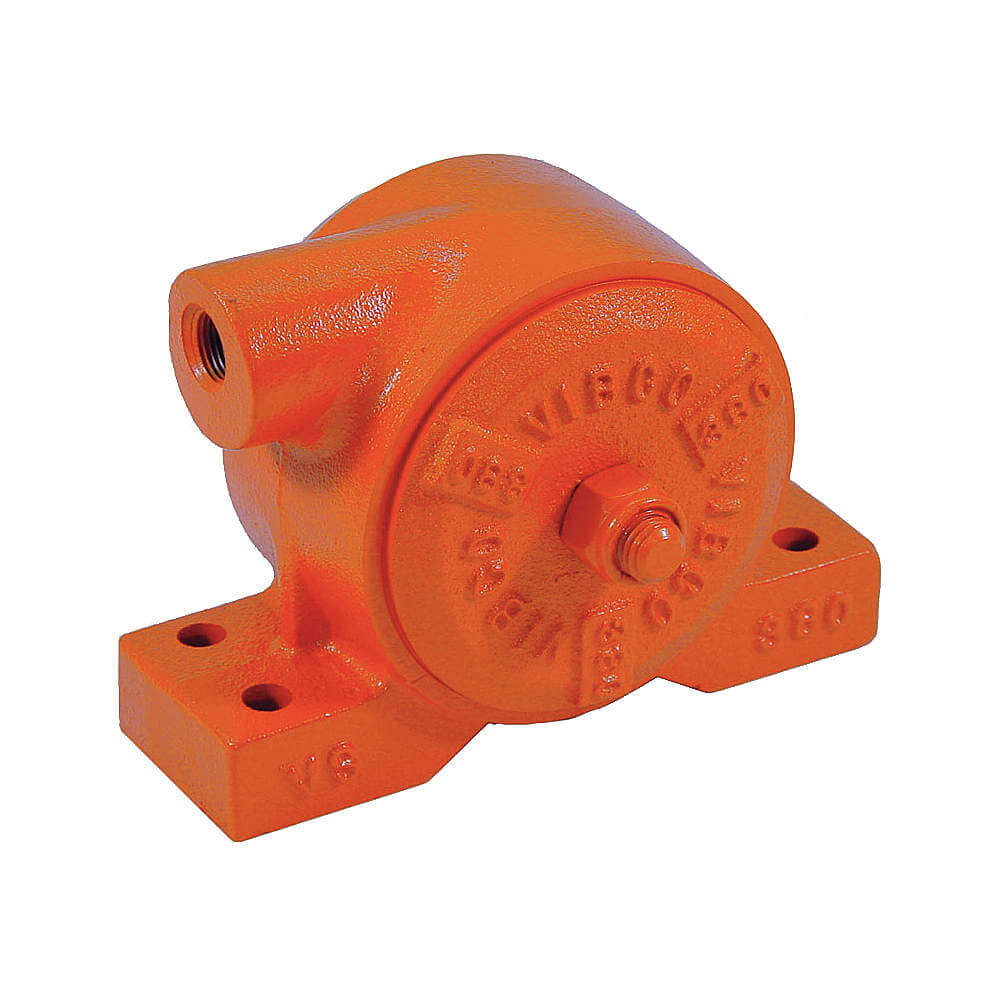

| C | VS-380 | 6 7/8" | 4 3/4" | 7250 lbs. | - | 4600 VPM | 725 lbs. | 80 psi | 5200 VPM | $618.84 | |

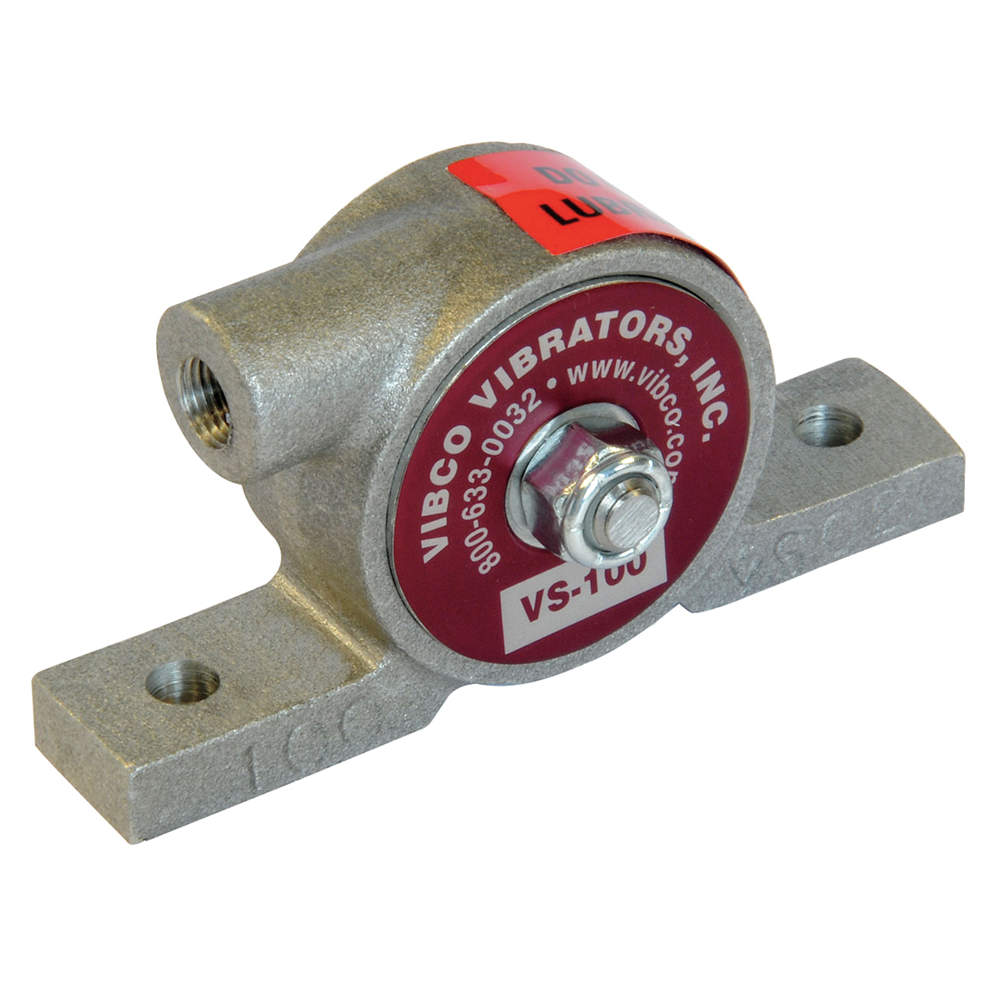

| D | VS-100 | 3 7/8" | 1 7/8" | - | 2" | 12000 VPM | 20 lbs. | 60 psi | - | $312.07 | |

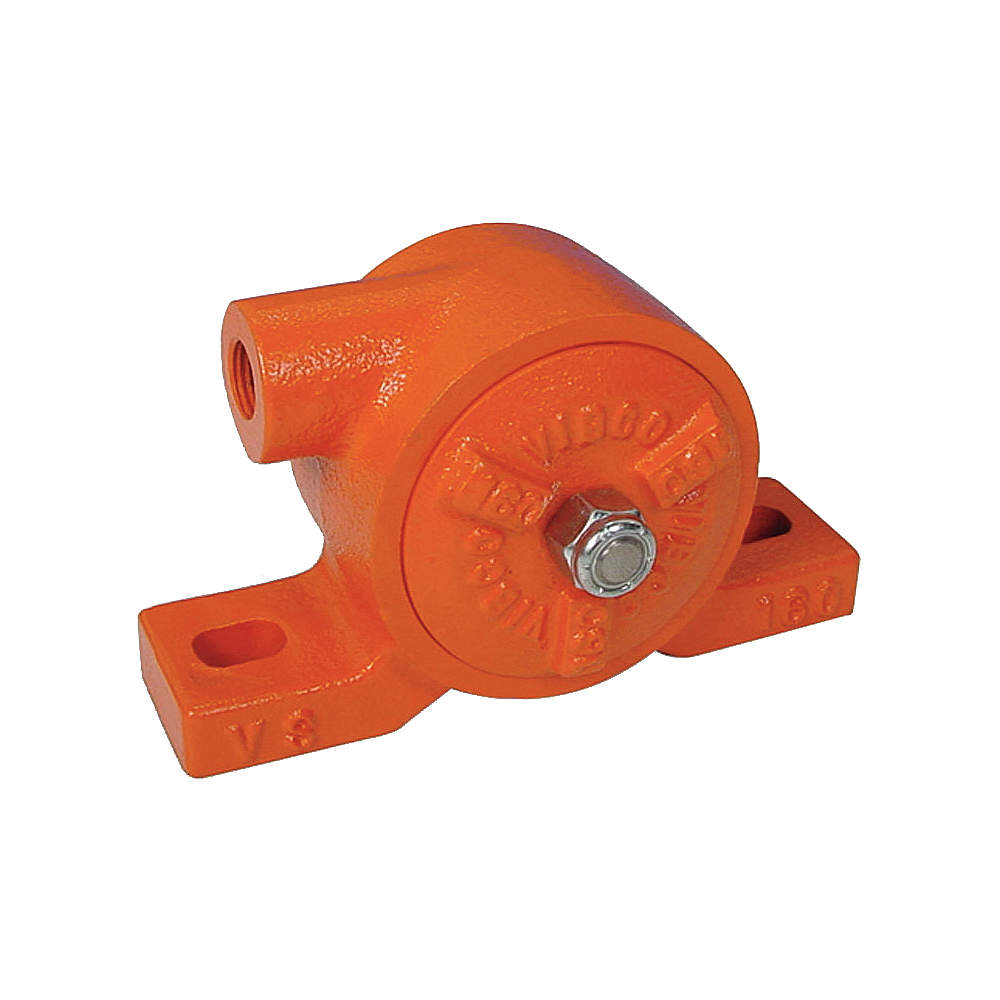

| E | VS-160 | 5 1/8" | 2 7/8" | 1600 lbs. | - | 10000 VPM | 160 lbs. | 80 psi | 12000 VPM | $355.81 | |

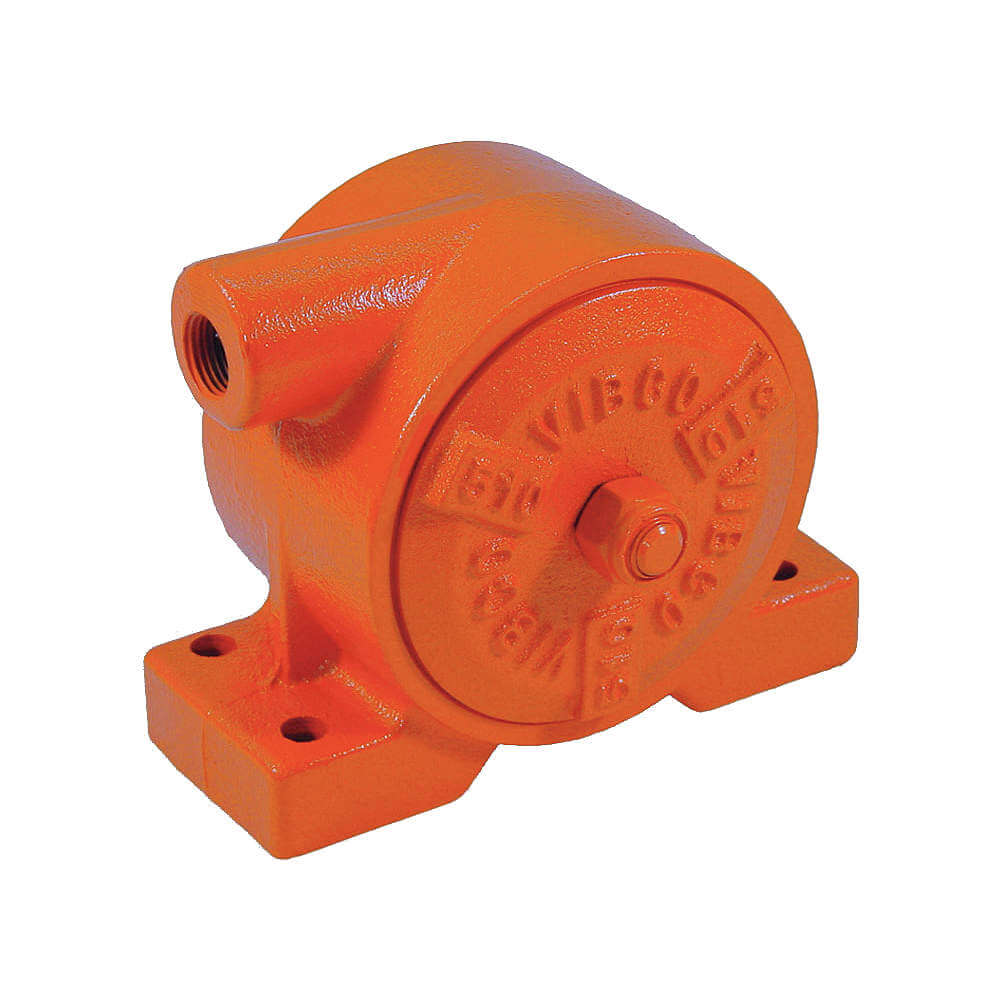

| F | VS-510 | 6.938" | 4 3/4" | 9000 lbs. | 5 3/8" | 4000 VPM | 900 lbs. | 80 psi | 4500 VPM | $719.74 | |

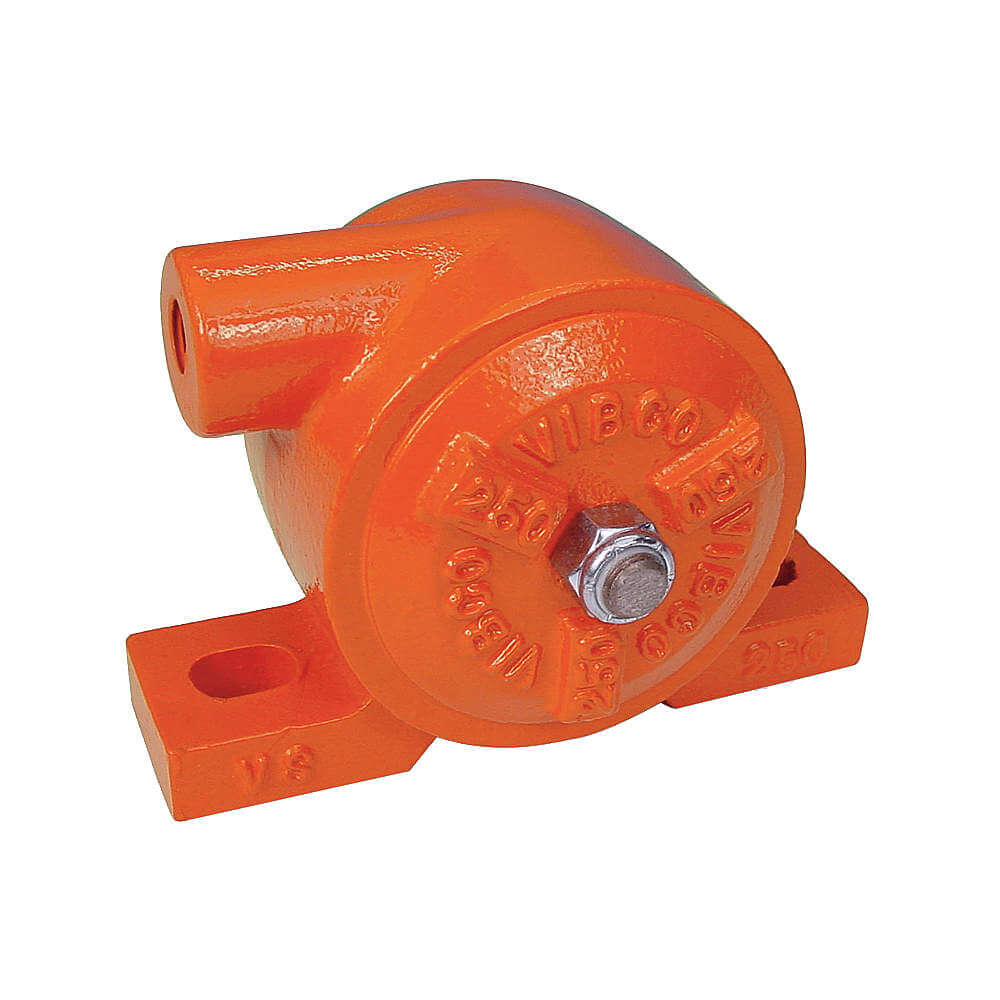

| G | VS-250 | 5 1/2" | 3 5/8" | 5000 lbs. | 3.688" | 5500 VPM | 500 lbs. | 80 psi | 7200 VPM | $556.43 |
