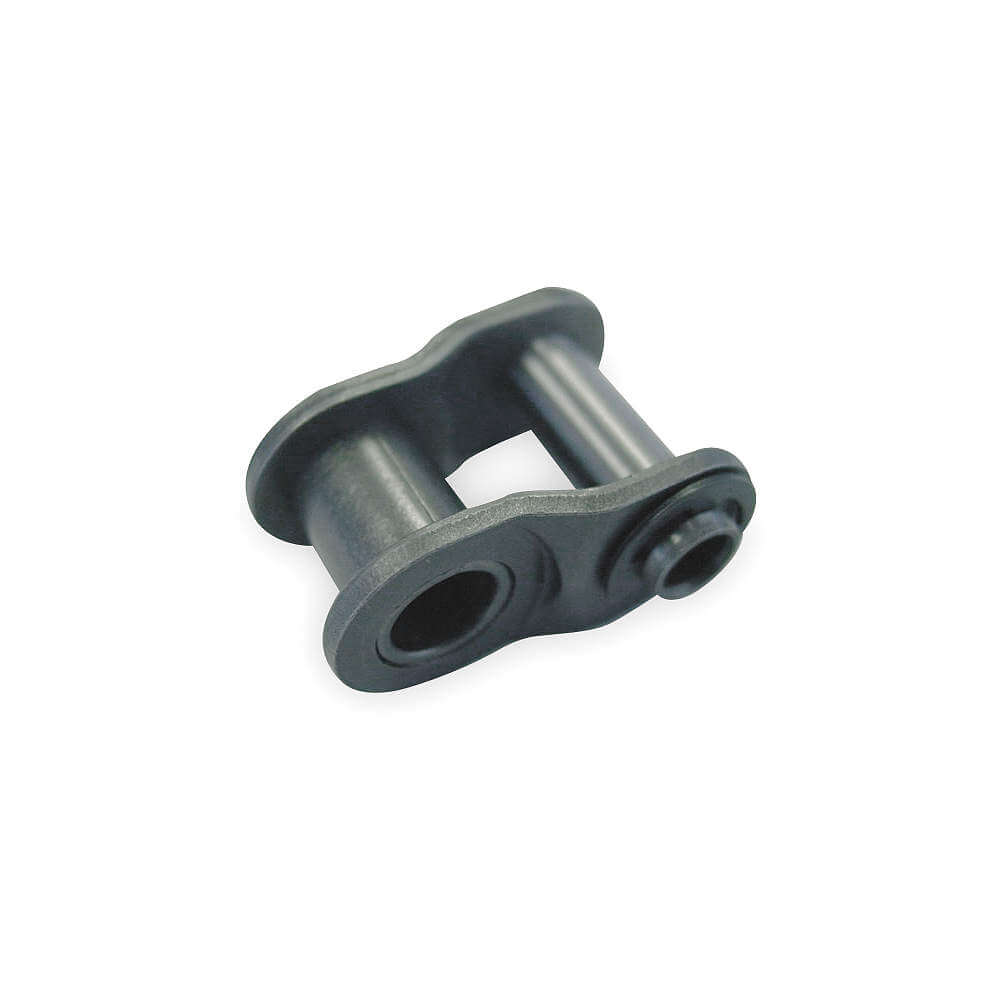

| Item | Offset Link |
|---|---|
| Ansi Chain Size | C2060H |
| Bushing Dia. (in.) | 0.469" |
| Chain Construction | Riveted Pin |
| Chain Number | C2060 |
| Chain Overall Width | 1 1/16" |
| Connecting End To Center Line | 0.561" |
| Display Qty | 1 |
| For Chain Material | Steel |
| For Chain Style (combined) | Yes |
| Heavy Series | Yes |
| Inside Pin Dia. | 0.33" |
| Inside Width | 1/2" |
| Length | 1 1/2" |
| Link Type | Offset |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 948 lbs. |
| Maximum Operating Temperature | 300°F |
| Minimum Operating Temperature | 15°F |
| Number Of Strands | 1 |
|---|---|
| Outside Pin Dia. | 0.33" |
| Overall Width | 1.055" |
| Pin Contruction | Riveted Pin |
| Pin Length | 1.055" |
| Pin Link Plate Thickness | 1/8" |
| Pin Outside Diameter | 21/64" |
| Pin Type | Riveted |
| Pitch Type | Double Pitch |
| Plate Height | 43/64" |
| Plate Thickness | 3/32" |
| Rivet End To Center Line | 0.494" |
| Roller Chain Standard | ANSI |
| Roller Dia. | 0.469" |
| Roller Diameter | 15/32" |
| Roller Link Plate Height | 0.713" |
| Tensile Strength | 5950 lbf. |
| Type | Hollow Pin |
| Width Between Roller Link Plates | 1/2" |
| Working Load Limit | 948 lbs. |
| Height (cm) | 1.78 |
|---|---|
| Length (cm) | 3.81 |
| Width (cm) | 2.68 |
| HS Code | 7315190000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.036 |
| Style | Model | Material | Roller Dia. | Ansi Chain Size | Tensile Strength | Inside Pin Dia. | Overall Width | Outside Pin Dia. | Pin Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 80HPOL | Stainless Steel | 5/8" | 80 | - | 0.448" | 1.398" | 0.448" | 1.341" | $72.34 | |
| B | C2040HPOL | Steel | 0.312" | C2040 | 2430 lbf. | 0.224" | 0.689" | 0.224" | 0.689" | $28.56 | |
| B | C2042HPOL | Steel | 5/8" | C2042 | 2430 lbf. | 0.224" | 0.717" | 0.224" | 0.689" | $41.79 | |
| B | C2050HPOL | Steel | 2/5" | C2050 | 4410 lbf. | 0.284" | 0.878" | 0.284" | 0.855" | $39.36 | |
| B | C2052HPOL | Steel | 3/4" | C2052 | 4410 lbf. | 0.284" | 0.878" | 0.284" | 0.855" | $53.53 |
