| Item | Roller Chain Link |
|---|---|
| Ansi Chain Size | C2042 |
| Attachment Number | SA-1 |
| Attachment Type | Tab |
| Centerline To Attachment End | 0.38" |
| Centerline To Hole Center | 0.325" |
| Chain Number | C2042 |
| Chain Overall Width | 0.717" |
| Connecting End To Center Line | 0.38" |
| Display Qty | 1 |
| Extended Pin Diameter | 0.156" |
| Finish | Plain |
| For Chain Style (combined) | Plain Steel |
| Inside Pin Dia. | 0.156" |
| Length | 1" |
| Link Type | Roller Attachment |
| Lubrication | SAE 10 To SAE 50 |
| Material | Steel |
| Max. Allowable Load | 595 lbs. |
| Maximum Operating Temperature | 300°F |
|---|---|
| Minimum Operating Temperature | 15°F |
| Number Of Tab Holes | 1 |
| Outside Pin Dia. | 0.156" |
| Overall Width | 0.717" |
| Pin Contruction | Riveted Pin |
| Pin Length | 0.705" |
| Pin Link Plate Thickness | 0.06" |
| Pin Type | Riveted |
| Pitch | 1" |
| Plate Height | 0.472" |
| Plate Thickness | 0.312" |
| Rivet End To Center Line | 0.325" |
| Roller Diameter | 5/8" |
| Roller Link Plate Height | 0.472" |
| Temp. Range | +15°F to +300°F |
| Tensile Strength | 3750 lbs.-in. |
| Width Between Roller Link Plates | 0.312" |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 1.82 |
| HS Code | 7315190000 |
|---|---|
| Country Of Origin | JP |
| Weight (kg) | 0.036 |
| Style | Model | Material | Ansi Chain Size | Finish | Roller Dia. | Pitch | Temp. Range | Tensile Strength | Inside Pin Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 80LSA1RL | Steel | 80L | Black Oxide | 5/8" | 1" | - | 17600 lbs.-in. | 0.312" | $61.00 | |
| B | 80SA1RL | Steel | 80 | Plain | 5/8" | 1" | - | 15400 lbs.-in. | 0.312" | $27.66 | |
| C | 80ASSA1RL | Stainless Steel | 80AS | Plain | 5/8" | 1" | -40°F to +750°F | - | 0.312" | $99.29 | |
| D | C2040LSA1RL | Steel | C2040L | Black Oxide | 0.312" | 1" | - | 3530 lbs.-in. | 0.156" | $23.71 | |

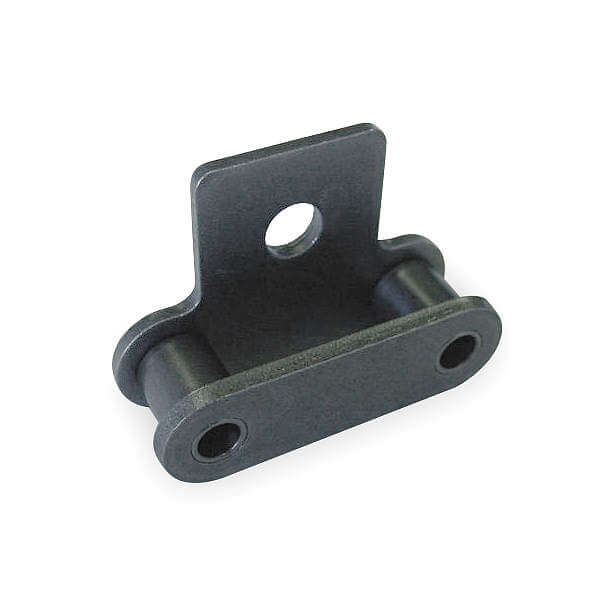

| E | C2040SA1RL | Steel | C2040 | Plain | 0.312" | 1" | +15°F to +300°F | 3750 lbs.-in. | 0.156" | $13.76 | |
| F | C2040ASSA1RL | Stainless Steel | C2040AS | Plain | 0.312" | 1" | -40°F to +750°F | - | 0.156" | $56.49 | |
| F | C2042ASSA1RL | Stainless Steel | C2042AS | Plain | - | 1" | -40°F to +750°F | - | 0.156" | $71.41 |
