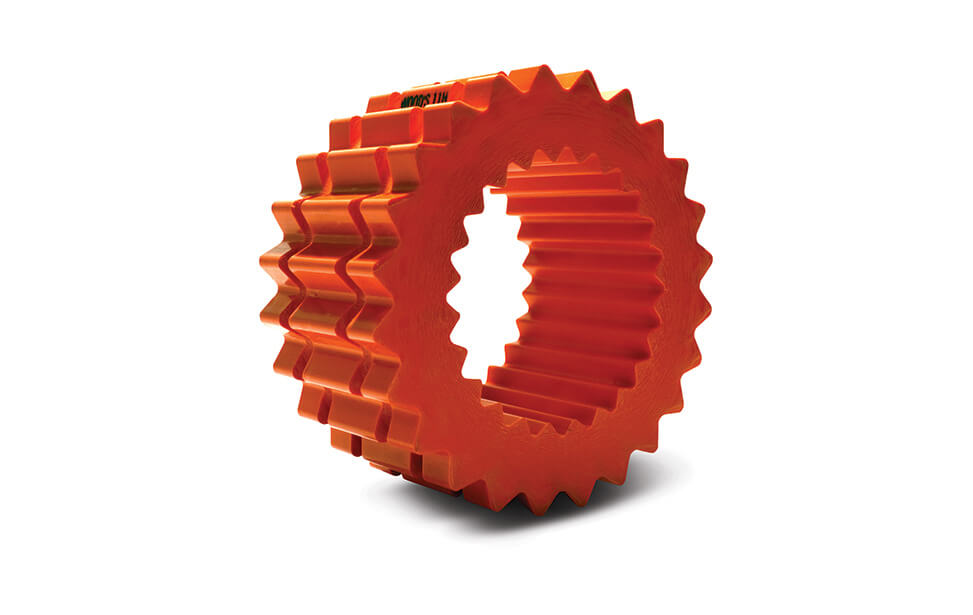

| Item | Sure-Flex Sleeve |
|---|---|
| Angular Misalignment | 1° |
| Application | Blowers, Compressors, Conveyors, Mixers, Motors, Pumps |
| Body Style | 9JE |
| Coupling Size | 9 |
| Features | 4-Way Flexing Action Absorbs Shock, Misalignment And End Float, Vibration |
| For Misalignment Type | Angular, Parallel |
| Horsepower @ 100 Rpm | 3.7 hp |
| Horsepower @ Rpm | 134 hp @3, 600 RPM, 67 hp @1, 800 RPM |
| Hp @ Rpm | 134 hp @ 3600 RPM, 67 hp @ 1800 RPM |
| Hp Rating @ 100 Rpm | 3 7/10 hp |
| Hp Rating @ 1200 Rpm | 44 11/20 hp |
| Hp Rating @ 1800 Rpm | 67 hp |
| Hp Rating @ 3600 Rpm | 134 hp |
| Insert Construction | One Piece Solid |
| Insert Material | EPDM |
| Insert Width | 3" |
|---|---|
| Material | EPDM |
| Max. Angular Gap Misalignment | 0.109" |
| Max. Angular Misalignment | 1° |
| Max. Parallel Misalignment | 1/40" |
| Max. Speed | 3750 RPM |
| Maximum Operating Temperature | 275°F |
| Minimum Operating Temperature | -30°F |
| Operating Temp. | -30°F to +275°F |
| Outside Dia. | 6" |
| Parallel Misalignment | 0.025" |
| Rated Torque | 2340 lbs.-in. |
| Resistance Properties | Chemical Resistant, Oil Resistant |
| System Of Measurement | Imperial |
| Torsional Stiffness | 6875 lbs.-in./deg. |
| Width | 3" |
| Height (cm) | 7.87 |
|---|---|
| Length (cm) | 17.27 |
| Width (cm) | 16.76 |
| HS Code | 8483608000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.675 |
| Style | Model | Max. Speed | Rated Torque | Coupling Size | Insert Material | Torsional Stiffness | Angular Misalignment | Parallel Misalignment | Outside Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3JNS | 9200 RPM | 78 lbs.-in. | 3 | Neoprene | 229 lbs.-in./deg. | 1° | 0.01" | 1 7/8" | $25.61 | |
| A | 4JNS | 7600 RPM | 156 lbs.-in. | 4 | Neoprene | 458 lbs.-in./deg. | 1° | 0.01" | 2.312" | $32.11 | |
| A | 5JNS | 7600 RPM | 312 lbs.-in. | 5 | Neoprene | 916 lbs.-in./deg. | 1° | 0.015" | 2.938" | $39.58 | |
| A | 6JNS | 6000 RPM | 585 lbs.-in. | 6 | Neoprene | 1718 lbs.-in./deg. | 1° | 0.015" | - | $78.61 | |
| B | 3J | 9200 RPM | 78 lbs.-in. | 3 | EPDM | 229 lbs.-in./deg. | 1° | 0.01" | 1 7/8" | $10.38 | |
| B | 4J | 7600 RPM | 156 lbs.-in. | 4 | EPDM | 458 lbs.-in./deg. | 1° | 0.01" | 2.312" | $20.54 | |
| B | 5J | 7600 RPM | 312 lbs.-in. | 5 | EPDM | 916 lbs.-in./deg. | 1° | 0.015" | 2.938" | $41.34 |
