| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Dia. | 12.75" |
| Bolt Center-to-center Length | 9.016" |
| Bolt Circle Dia. | 12.75" |
| Bolt Circle Diameter | 12.75" |
| Bolt Size | 7/8" |
| Bore Dia. | 4 15/16" |
| Bore Diameter | 4 15/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 4 3/8" |
| Closure | Double Sealed |
| Collar Outer Dia. | 7.313" |
| Collar Outer Diameter | 7.313" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 35520 lbf. |
| Dynamic Radial Load Capacity | 35520 lbs. |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 1 1/4" |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 8.13" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Outside Dia. | 14 3/4" |
| Housing Outside Diameter | 14 3/4" |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| I.d. | 4 15/16" |
| Included Bearing | Rfp-415 |
| Includes | Set Screw |
|---|---|
| Includes Mounting Hardware | Yes |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
| Inner Race Length | 7 1/4" |
| Inner Ring Width | 7.406" |
| Insert Material | Steel |
| Insert Material Grade | 52100 |
| Insert Number | RCI-415 |
| Internal Clearance | Standard |
| Length | 16 1/4" |
| Load Direction | Radial, Thr.Ust |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1000 RPM |
| Maximum Misalignment Angle | 3° |
| Maximum Speed | 1000 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 9 1/64" |
| Mount Hole Center-to-center Length | 9 1/64" |
| Mounting Bolt Size | 7/8" |
| Number Of Mount Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 14 3/4" |
| Overall Length | 14 3/4" |
| Pilot Configuration | With Pilot |
| Pilot Diameter | 11" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Rolling Element Rows | 2 |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Series | Rfp |
| Shaft Locking Type | Set Screws |
| Shaft Size | 4 15/16" |
| Static Radial Load Capacity | 16000 lbf. |
| Width | 16 1/4" |
| Height (cm) | 41.28 |
|---|---|
| Length (cm) | 41.28 |
| Width (cm) | 20.65 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 51.75 |
| Style | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|
| A | RFP 104 | 1 1/4" | Cast Iron | 4 | $1,751.77 | |
| B | RFP 112 | 1 3/4" | Cast Iron | 4 | $1,862.14 | |
| C | RFP 208 | 2 1/2" | Cast Iron | 4 | $2,096.69 | |
| D | RFP 211 | 2 11/16" | Cast Iron | 4 | $3,925.00 | |

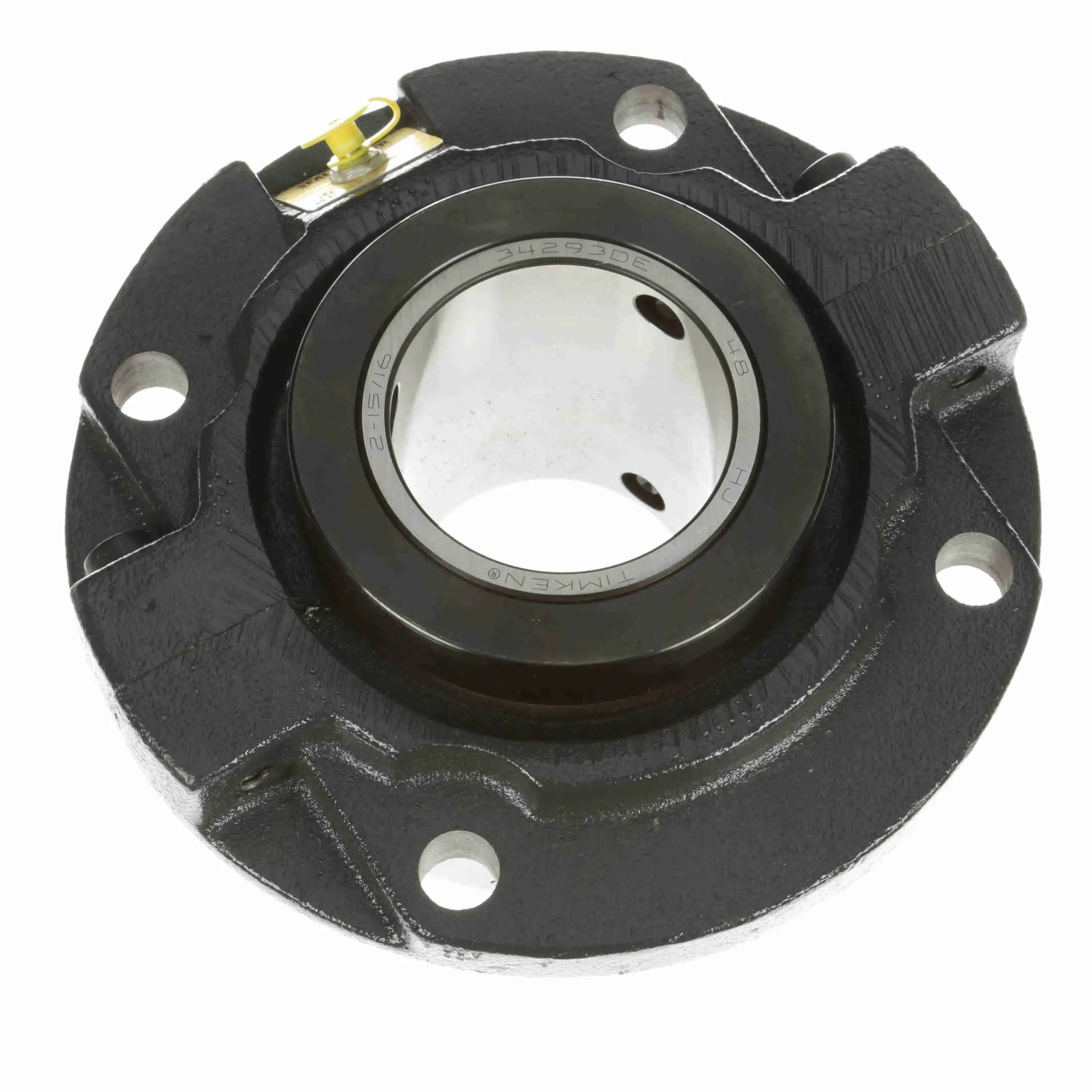

| E | RFP 300 | 3" | Cast Iron | 4 | $3,452.66 | |
| F | RFP 103 | - | Cast Iron | - | $5,144.25 | |
| G | RFP 103C | - | Cast Iron | - | $545.95 |
