| Item | Bearing |
|---|---|
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Uncoated |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Tapered Roller |
| Bearing Material Grade | Grade 52100 |
| Bolt Center Dia. | 6.5" |
| Bolt Center-to-center Length | 4.596" |
| Bolt Circle Dia. | 6 1/2" |
| Bolt Circle Diameter | 6.5" |
| Bolt Size | 1/2" |
| Bore Dia. | 2 1/2" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Centerline To Front Face | 2.563" |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Collar Outer Dia. | 3.938" |
| Collar Outer Diameter | 3.938" |
| Duty Series | Standard |
| Duty/series | Standard Series |
| Dynamic Load Capacity | 9030 lbf. |
| Dynamic Radial Load Capacity | 9030 lbs. |
| End Cap | No |
| Expansion | Non Expansion Bearing Fixed |
| Expansion Type | Fixed |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 5/8" |
| Foot Height | 5/8" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 8.63" |
| Housing Base | Solid |
| Housing Color | Gray |
| Housing Construction | Split Two Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Outside Dia. | 7 5/8" |
| Housing Outside Diameter | 7 5/8" |
| Housing Style | Flange Block |
| Htc | 8483.20.4080 |
| I.d. | 2 1/2" |

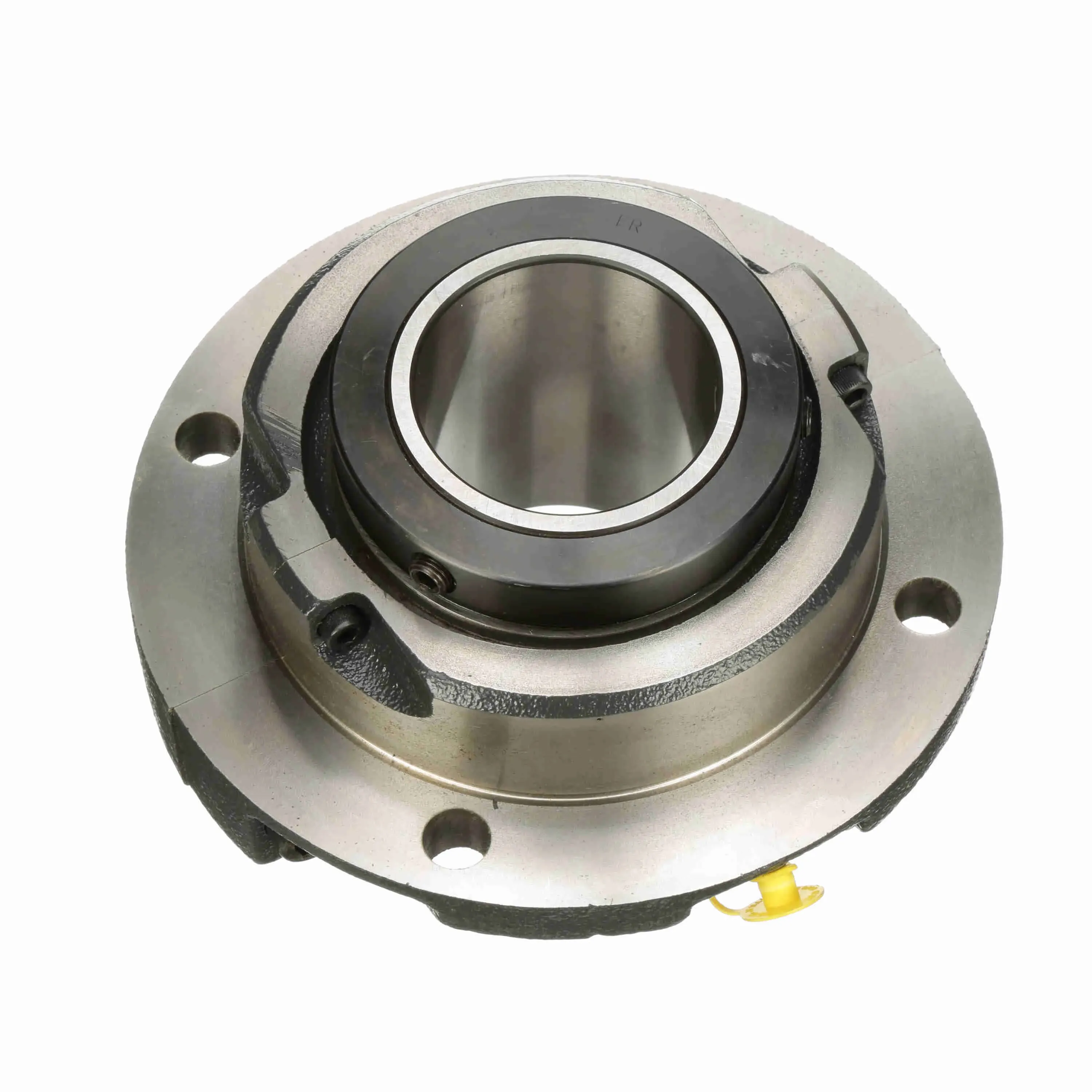

| Included Bearing | RFP-208 |
| Includes | Set Screw |
| Includes Mounting Hardware | Yes |
| Inner Race Heat Treat Method | Case Carburized Inner Ring |
|---|---|
| Inner Race Length | 4" |
| Inner Ring Width | 3.937" |
| Insert Material Grade | 52100 |
| Insert Number | RCI-208 |
| Insert Type | Tapered Roller |
| Internal Clearance | Standard |
| Length | 8.88" |
| Load Direction | Radial, Thrust |
| Locking Device | Double Set Screw |
| Locking Type | Double Collar Mount |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubricant Material Class | NLGI#2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium, EP, NLGI |
| Max. Angular Misalignment | 3° |
| Max. Speed | 2000 RPM |
| Max. Temp. | 220°F |
| Maximum Misalignment Angle | 3° |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 4 19/32" |
| Mount Hole Center-to-center Length | 4 19/32" |
| Mounting Bolt Size | 1/2" |
| Mounting Hardware Included | Yes |
| Number Of Mounting Holes | 4 |
| Outer Ring Land Profile | Standard |
| Overall Height | 4" |
| Overall Length | 7 5/8" |
| Pilot Configuration | With Pilot |
| Pilot Diameter | 5 1/2" |
| Platform | RPB Series |
| Replaceable Insert | Yes |
| Retainer Material | Steel |
| Retainer Type | Metal |
| Rolling Element Rows | 2 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Series | Rfp |
| Shaft Locking Type | Set Screws |
| Shaft Size | 2 1/2" |
| Static Radial Load Capacity | 3470 lbf. |
| Width | 8.88" |
| No. Links/ft. | 0 |
| Height (cm) | 22.56 |
|---|---|
| Length (cm) | 22.56 |
| Width (cm) | 21.92 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 8.1 |
| Style | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|

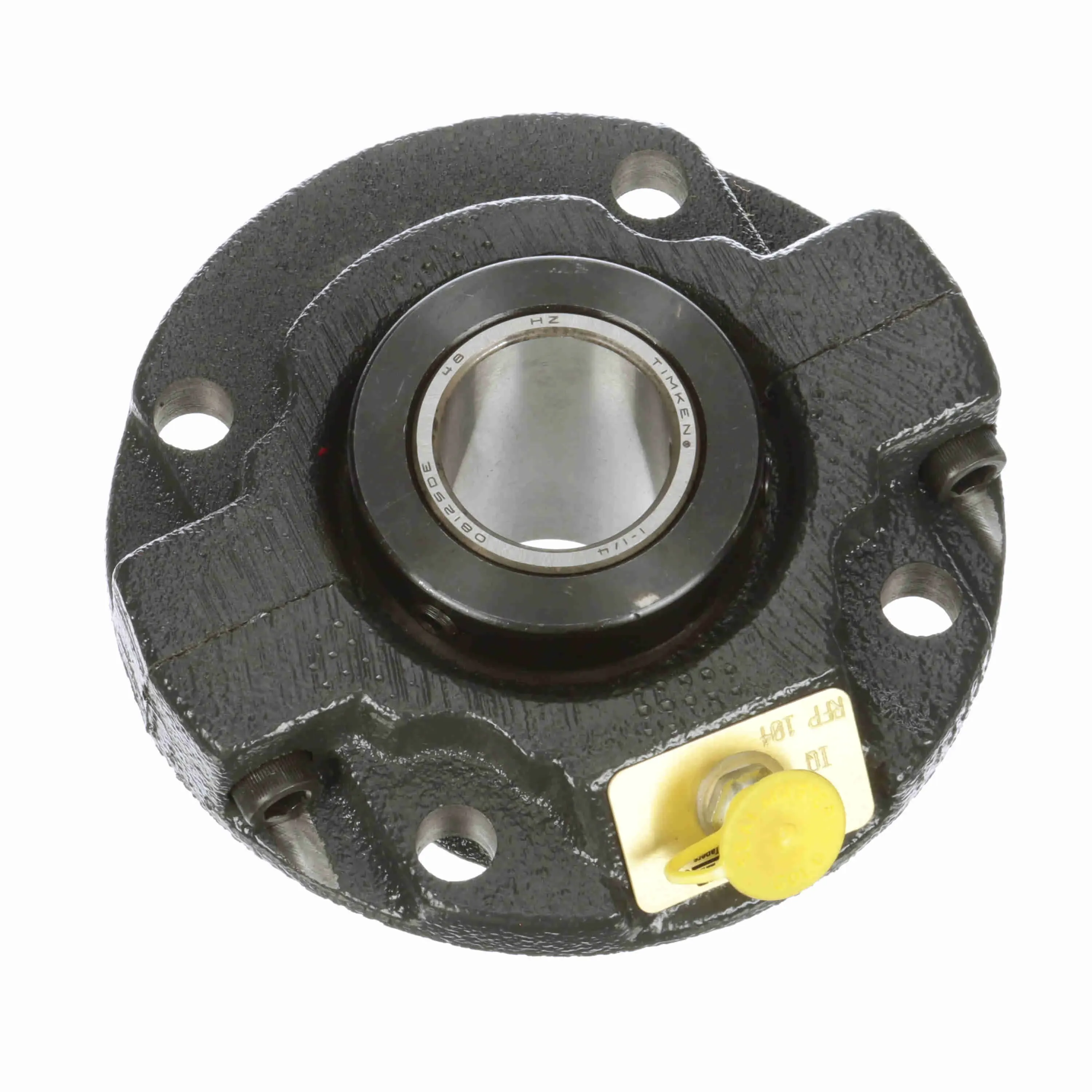

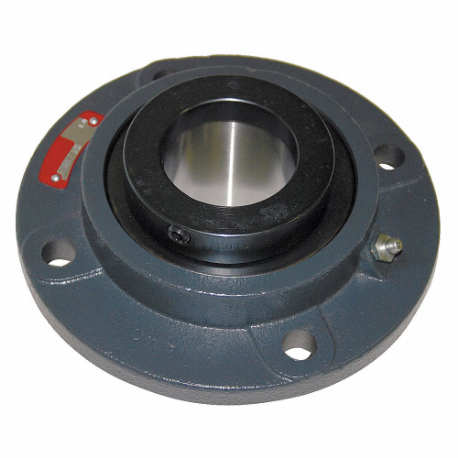

| A | RFP 104 | 1 1/4" | Cast Iron | 4 | $1,751.77 | |
| B | RFP 112 | 1 3/4" | Cast Iron | 4 | $1,862.14 | |
| C | RFP 211 | 2 11/16" | Cast Iron | 4 | $3,925.00 | |

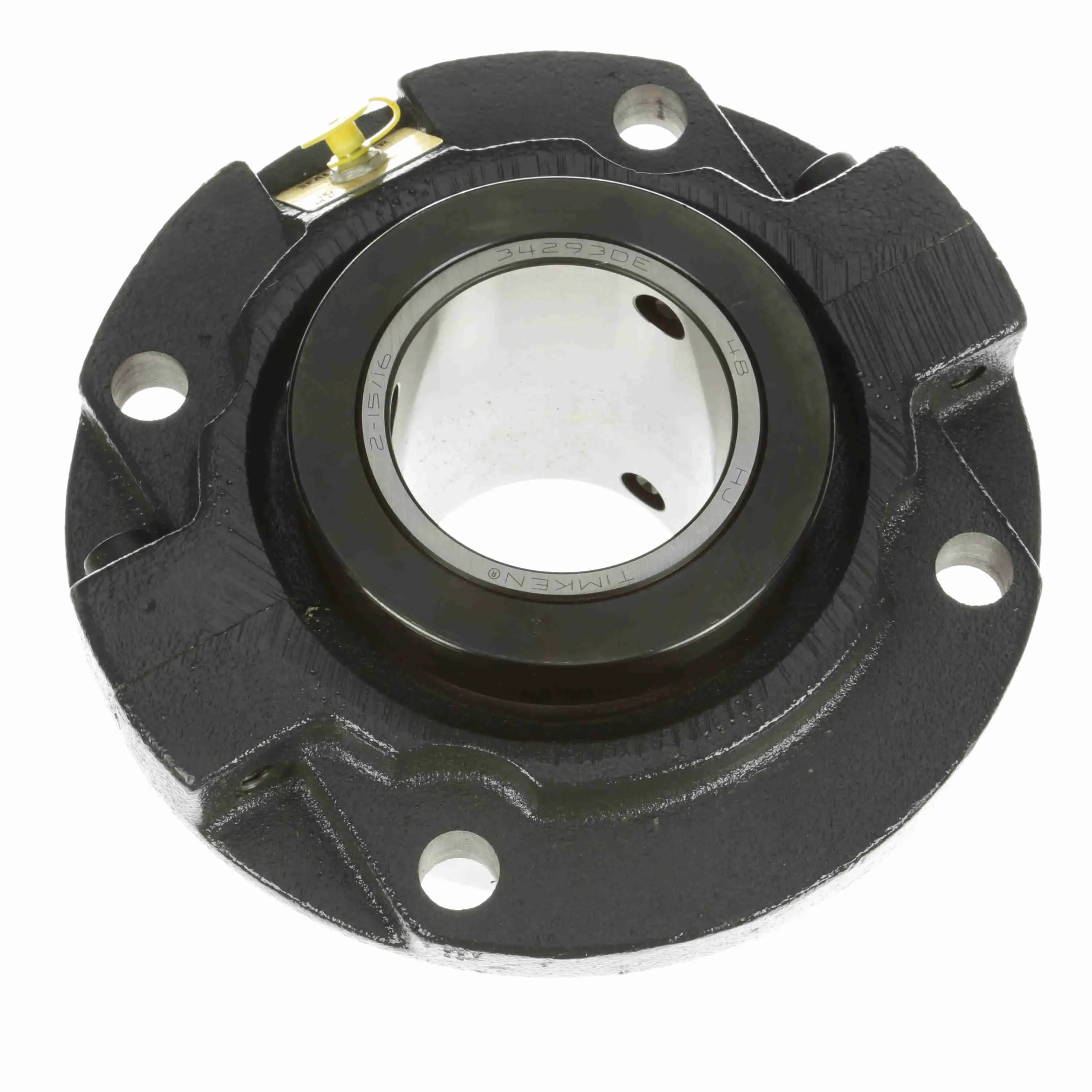

| D | RFP 300 | 3" | Cast Iron | 4 | $3,452.66 | |
| E | RFP 103 | - | Cast Iron | - | $5,144.25 | |

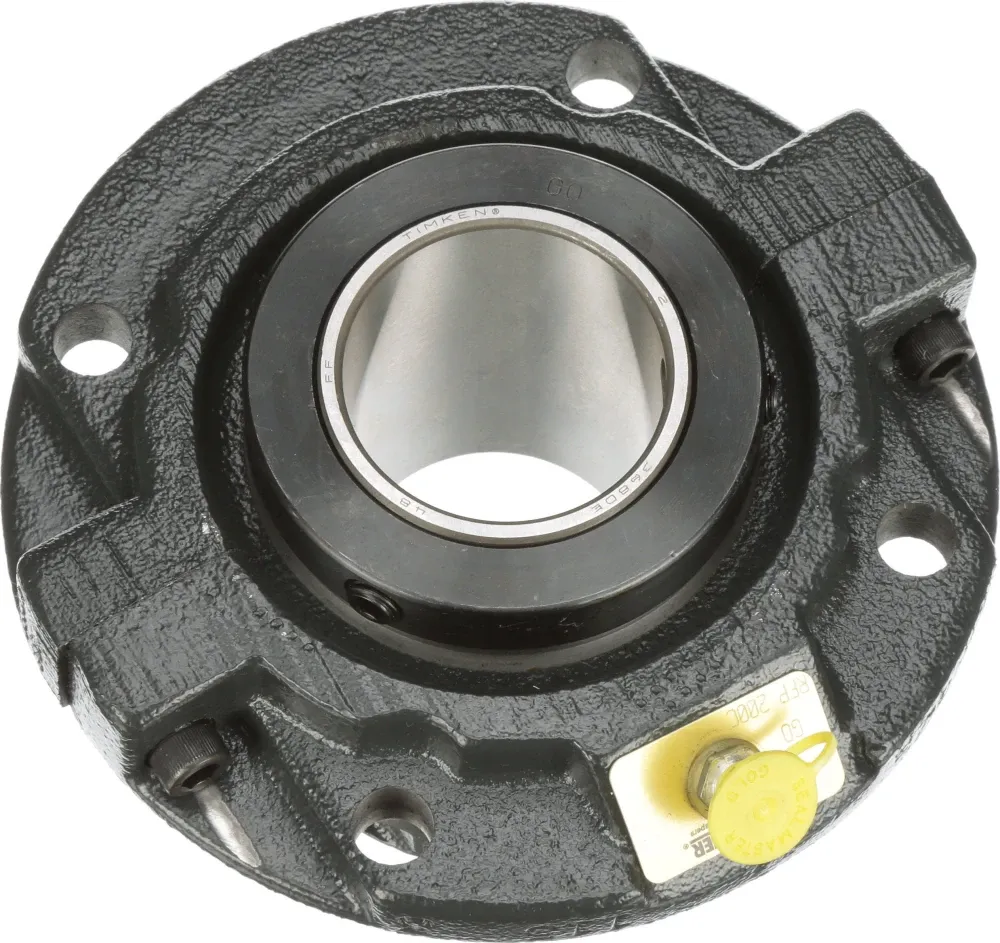

| F | RFP 103C | - | Cast Iron | - | $545.95 | |
| G | RFP 104C | 1 1/4" | Cast Iron | - | $844.88 |
