| Item | Enclosed Pre-Wired Relay |
|---|---|
| Body Depth | 1.8" |
| Body Height | 1.8" |
| Body Width | 3.2" |
| Coil Voltage | 24V AC/DC/120V AC |
| Contact Amp Rating (resistive) | 5/20A |
| Contact Form | SPDT |
| Contact Material | Silver Cadmium Oxide |
| Contact Rating (ac) | 5A @ 480V, 10A @ 120V, 16A @ 277V, 20A @ 277V |
| Current Rating | 20A |
| Depth | 1 4/5" |
| Electrical Connection Type | Wire Lead |
| For Use With | Exhaust Fans, Motors, Vacuums |
| Frequency | 50/60 Hz |
| Height | 2.3" |
| Hp @ 120v | 1 hp |
|---|---|
| Hp @ 240v | 2 hp |
| Lead Length | 16" |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -30°F |
| Nema Enclosure Rating | 1 |
| Nipple Size | 0.5" |
| Nipple Size Type | NPT |
| Relay Mounting Style | Surface |
| Response Time | 18 ms |
| Sealing | Enclosed |
| Status Indicator | LED Indicator |
| Width | 3 1/5" |
| standard | CE CERTIFIED, CSFM, ROHS COMPLIANT, UL 864, UL 916, UL LISTED |

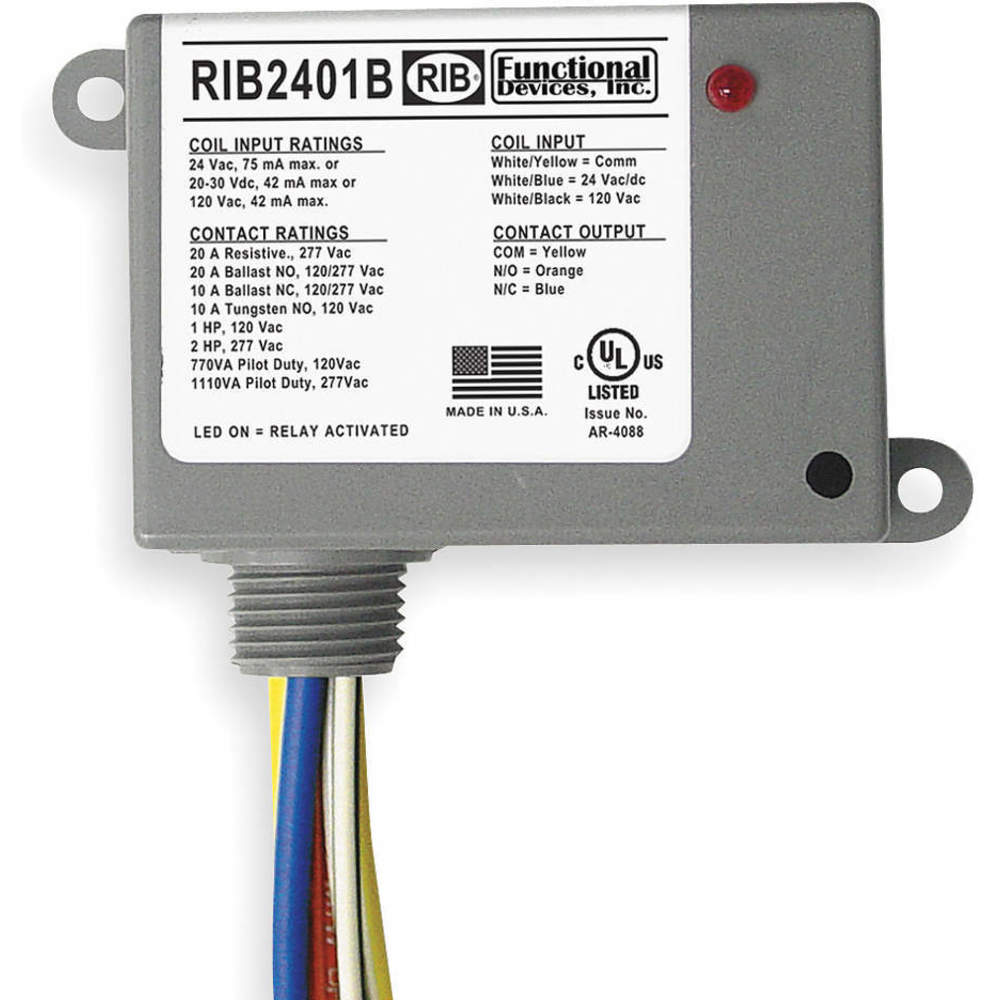

Functional Devices RIB2401B enclosed pre-wired relay controls the flow of electricity. It acts as a switch that opens or closes the electrical circuit. This relay is useful in the manufacturing, energy, telecommunication and transportation industries. It can manage high-power loads, safeguard equipment and prevent damage from electrical overloads.
| Height (cm) | 16.76 |
|---|---|
| Length (cm) | 11.18 |
| Width (cm) | 6.35 |
| HS Code | 8536490075 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.225 |
Yes, it can handle up to 167 degrees F.
Contact ratings indicate the maximum voltage and current that a relay can safely handle.
Relays have low maintenance requirements. Regular inspections for signs of wear, checking connections and ensuring the environment is within specified limits are advisable.
| Style | Model | Contact Form | Coil Voltage | Response Time | Hp @ 120v | Hp @ 240v | Depth | Height | Dimensions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RIBU1C-N4 | SPDT | 10-30V AC/DC/120V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 1/2" | 1.7" | - | $42.34 | |
| B | RIBH1S | SPST/NO | 10-30V AC/DC/208-277V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | - | $55.74 | |
| C | RIBU1S | SPST/NO | 10-30V AC/DC/120V AC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 2.3" | - | $52.33 | |
| D | RIBL3C | 3PST/NO | 10-30V AC/DC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | - | $86.61 | |
| E | RIBL4C | SPDT/3PST/NO | 10-30V AC/DC | 20 ms | 1/3 hp, 1/6 hp | 1/3 hp, 1/6 hp | 1 4/5" | 4" | - | $109.64 | |
| F | RIB2401D | DPDT | 24V AC/DC/120V AC | 8 ms | 1/2 hp, 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | - | $41.83 | |
| G | RIB2402D | DPDT | 24V AC/DC/208-277V AC | 8 ms | 1/2 hp, 1/3 hp | 1/2 hp, 1/3 hp | 1 1/2" | 1.7" | - | $46.70 |
