| Item | Squeeze Action Clamp |
|---|---|
| Clamping Force | 700 lbs. |
| Holding Capacity - Maximum | 700 lbf. |
| Holding Capacity - Minimum | 7 lbf. |
| Jaw Depth | 2 18/25" |
| Jaw Width | 3" |
| Load Capacity | 700 lbs. |
| Locking Mechanism | Quick Release Trigger |
| Material | Steel |
| Max. Clamping Thickness | 54.2 mm |
|---|---|
| Number Of Spindles | 2 |
| Overall Length | 8.51" |
| Release Mechanism | Two Way Trigger |
| Spindle | No |
| Spindle Material | Steel |
| Spindle Thread Size | M10 |
| Type | Squeeze Action |

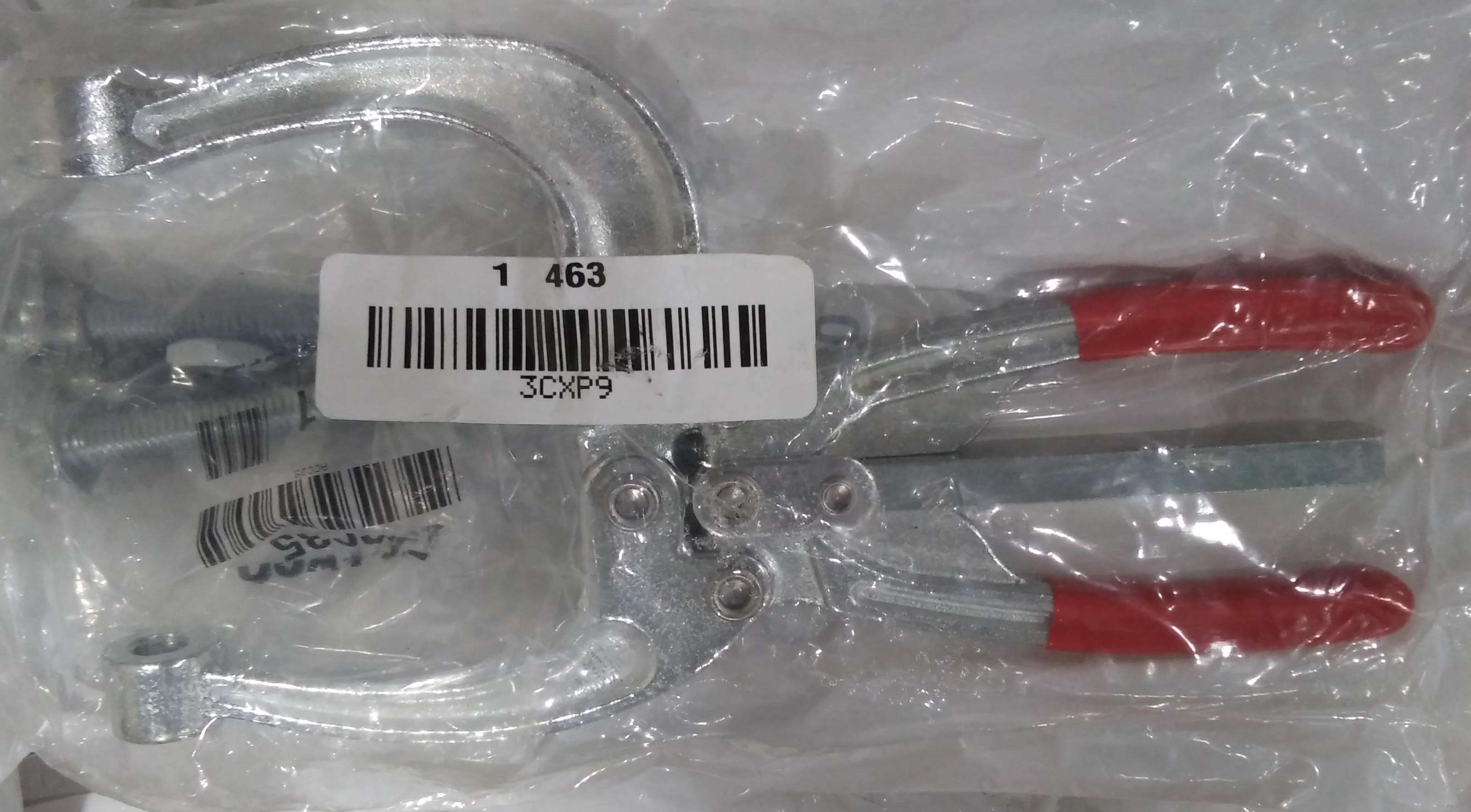

Destaco 463 squeeze action plier clamp, also known as plier clamp or portable clamp, is suitable for holding single / multiple workpieces together in automotive, plastic moulding, aerospace and food & packaging facilities. Squeeze action clamp is ideal for providing quick & flexible clamping in high workload environments. This squeeze action clamp features drop forged alloy steel construction that ensures durability & delivers high abrasion resistance against harsh industrial conditions. It operates a two way trigger release mechanism for enabling quick & easy opening of the clamp. Destaco squeeze action clamp features dual spindle arrangement (hex head & swivel foot spindle) that can be adjusted to accommodate varied size workpieces. The clamp's metal handle features an easy to hold, insulated plastic grip that ensures user comfort & safety for prolonged usage. For applications that require quick clamp installation & removal, 460 Seriessqueeze action plier clamps with single spindle arrangement are also available.
| Height (cm) | 1.78 |
|---|---|
| Length (cm) | 25.4 |
| Width (cm) | 25.4 |
| HS Code | 8205700090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.657 |
Yes, apart from Destaco 463 squeeze action plier clamp (with double adjustable spindle), various Destaco 462 clamps having single hex head adjustable spindle are also available.
Clamps are application flexible tools that serve to hold a workpiece securely in its place for temporary operations. They are used in a range of applications, such as furniture making, metal working, construction, carpentry and welding.
Unlike straight line action pneumatic clamps, regular manual style clamps from Destaco feature a separate handle for engaging the plunger to hold the workpiece in place.
Destaco squeeze action plier clamps are manually operated squeeze style clamps that are used for various applications including plastic injection moulding, welding & assembly operations in automotive, aerospace and food & packaging industries.
The holding capacity or the holding force depicts the clamp's capability to hold down the equipment or sheet metal on the assembly line or during any other manufacturing process.
Some squeeze action plier clamps, such as Destaco 463 clamp, feature jaw style holding arms. These jaws / clamp arms are opened / closed using the handle and are locked in place using automatic locking mechanism.
For ensuring smooth operation & durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.
The red coloured handles alert the user about the location of the operating handle and when he should grab it. The red colour has no additional advantage to the working of the clamps.
Yes, carbon steel clamps from Destaco are zinc plated for withstanding & minimising wear against harsh industrial environments. For applications that require clamping in outdoor conditions, stainless steel clamps are also available.
