WATTS

WATTS 3/4 LF15M2-B 0750161 Water Hammer Arrestor, 3/4 Inch Pipe Size

Item: AA3YLN
Model: 3/4 LF15M2-B
Cross Ref: 11Y819 / 0750161
24 In Stock.

Ships within 2 days via

Connection Type
Number of Fixture Units

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$65.24
10% off
$58.72 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now
FREE delivery on orders over $ 150.00

Payment

Specifications

Item Water Hammer Arrestor
Air Precharge 60 psi
Air Valve No
Body Material Brass
Buy American Act Compliant No
Connection Size 3/4"
Connection Type NPT
Diameter 1 3/8"
Factory Set Pressure 60 psi
Lead Free Yes
Max. Operating Pressure 150 psi
Max. Pressure 150 psi
Maximum Operating Temperature 180°F
Minimum Temp. 33°F
Number Of Fixture Units 12 to 32
Overall Height 8 9/16"
Pipe Size 3/4"
Product Overall Height 8.5625"
Product Overall Width 1.375"
Series LF15M2 Series
Temp. Range 33°F to 180°F
Thread Type NPT
Standards ANSI A112.26.1M, ASSE 1010, IAPMO

Product Details

    • The Watts LF15M2-B water hammer arrestor is ideal for commercial dishwashers and quick closing faucets to control water hammer (water pressure shock) damages in piping systems.
    • These water shock waves need a point of relief which is provided by the LF15M2-B as it has a permanent and pre-loaded air (60 psi) chamber with a movable polypropylene piston to absorb shocks.
    • This water hammer arrestor has a copper body which comes with a lead-free brass-built threaded adapter for easy installation in a new or existing piping system at any desired angle.
    • Sealed with EPDM and packed in a height of 8-9 / 16 inches (21.75 cm), the LF15M2-B works efficiently within the temperature range of 33-180 degrees Fahrenheit and under 150 psi working pressure.

Shipping Information

Height (cm) 3.81
Length (cm) 23.37
Width (cm) 4.06
HS Code 7419995050
Country Of Origin KR
Weight (kg) 0.3465

Certifications

certificatecertificate

Other Also Viewed

Ratcheting Combo Wrench Reversible 12 Point 10mm
PROTO

Ratcheting Combo Wrench Reversible 12 Point 10mm
Model No. JSCVM10T
SKU AF7NRV
$42.21 10% off$37.99 /unit (ex. VAT)
Add to Cart

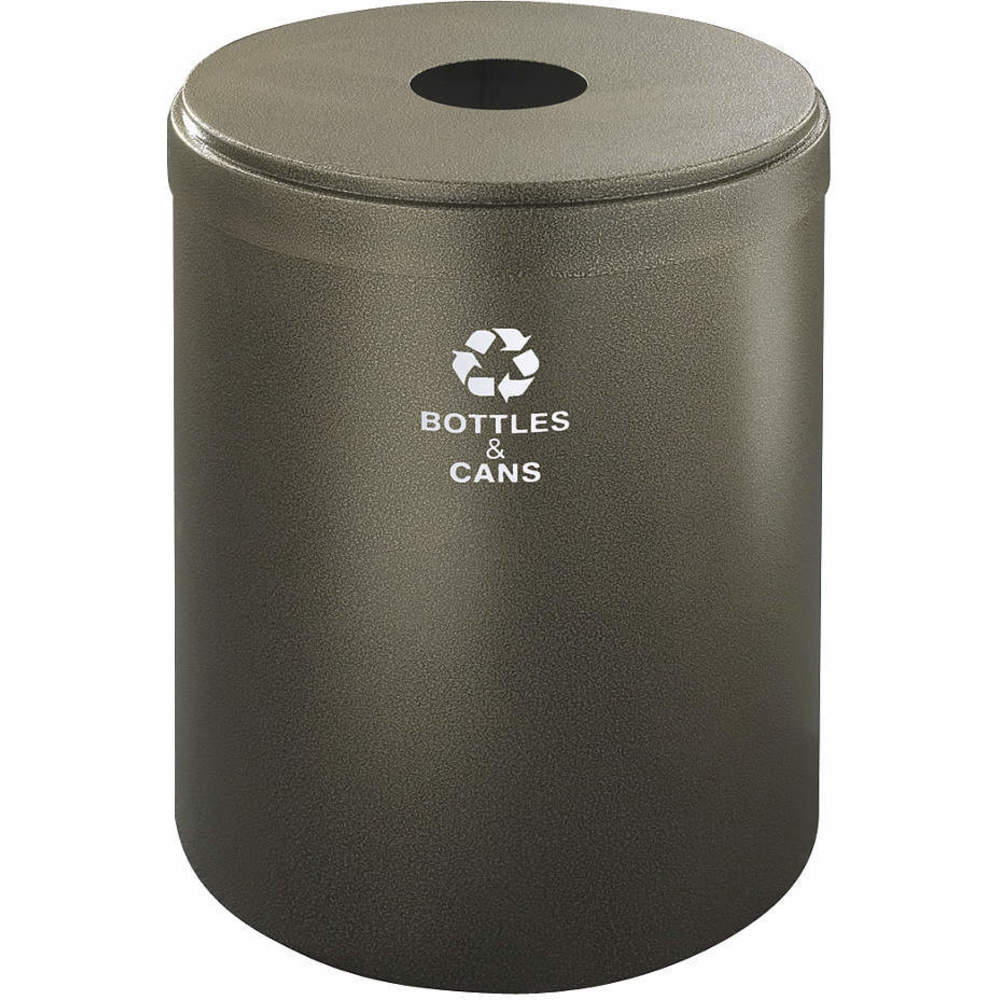

Stationary Recycling Container Can/bottles Brown
GLARO

Stationary Recycling Container Can/bottles Brown
Model No. B-2042BV-BV-B&C
SKU AG4KGG
$862.44 10% off$776.20 /unit (ex. VAT)
Add to Cart

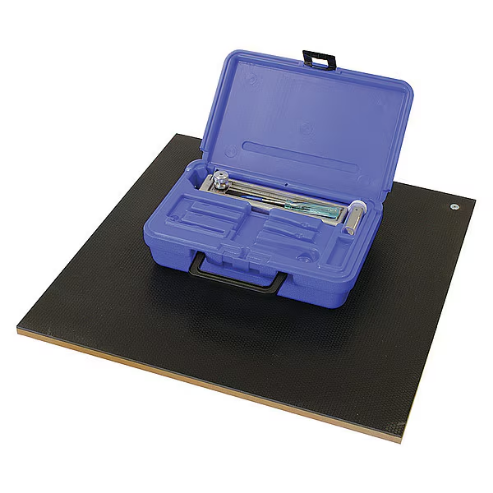

Gasket Cutter Kit, Medium Duty, No Cut Board, 1 to 13 Inch Cut Range, 3/4 Inch Max. Thickness
ALLPAX GASKET CUTTER SYSTEMS

Gasket Cutter Kit, Medium Duty, No Cut Board, 1 to 13 Inch Cut Range, 3/4 Inch Max. Thickness
Model No. AX4010
SKU AG8XTH
Pipe 1/2 Inch 316 Stainless Steel 60 Inch Length Schedule 80
APPROVED VENDOR

Pipe 1/2 Inch 316 Stainless Steel 60 Inch Length Schedule 80
Model No. 4WKH3
SKU AE2CQL
Heat Pump Riser 12 Inch Gray
DIVERSITECH

Heat Pump Riser 12 Inch Gray
Model No. HPR-12
SKU AF2RTG
$18.34 10% off$16.51 /unit (ex. VAT)
Add to Cart

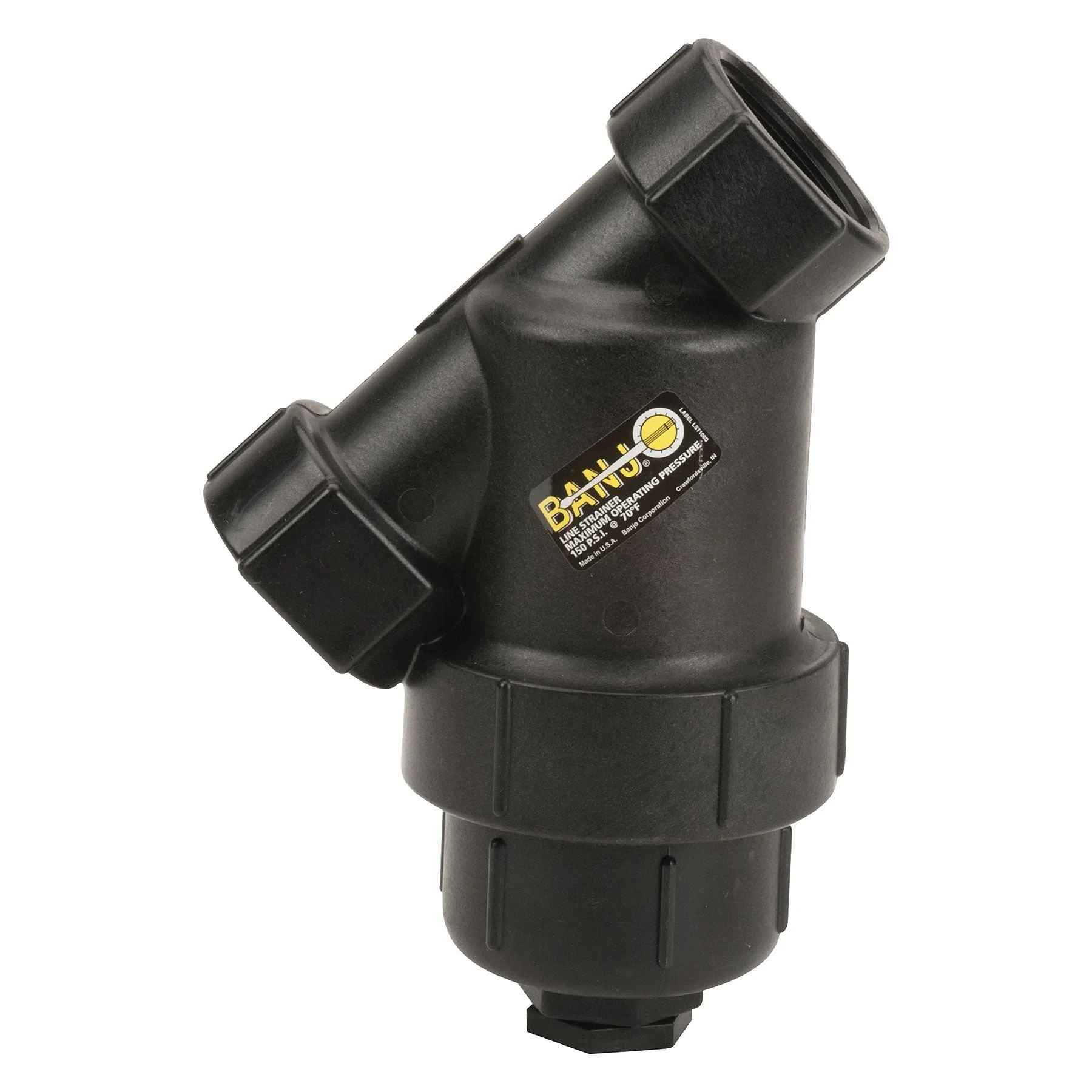

Y Strainer With 80 Mesh Poly Ribbed Stainless Steel Screen, 2 X 2 Inch Size
BANJO FITTINGS

Y Strainer With 80 Mesh Poly Ribbed Stainless Steel Screen, 2 X 2 Inch Size
Model No. LS200-80
SKU AC8UAR
$123.31 10% off$110.98 /unit (ex. VAT)
Add to Cart
Elbow 90 Deg 2 Inch Fpt 150 Psi Black
BANJO FITTINGS

Elbow 90 Deg 2 Inch Fpt 150 Psi Black
Model No. EL200-90
SKU AB2KEE
$19.51 10% off$17.56 /unit (ex. VAT)
Add to Cart
Reducing Street Elbow, 90 Degree, Standard, Class 150, Galvanized, 3/4 Inch Nominal Size (a), 1/2 Inch Nominal Size (b)
ANVIL

Reducing Street Elbow, 90 Degree, Standard, Class 150, Galvanized, 3/4 Inch Nominal Size (a), 1/2 Inch Nominal Size (b)
Model No. 0311019004
SKU AF8EFP
$33.27 10% off$29.94 /unit (ex. VAT)
Add to Cart
Comparator With Granite Base 8 x 12 x 2 In
STARRETT

Comparator With Granite Base 8 x 12 x 2 In
Model No. 653G
SKU AC4GZU
$1,700.16 10% off$1,530.14 /unit (ex. VAT)
Add to Cart
High Speed Fuse, 40 A, Blade End x Blade End
BUSSMANN

High Speed Fuse, 40 A, Blade End x Blade End
Model No. FWA-40A21F
SKU AE2FKZ
$104.40 10% off$93.96 /unit (ex. VAT)
Add to Cart
Swing Y Check Valve, Swing, Y-Style Valve Body, 1 Inch Pipe Size, FNPT x FNPT, Bronze
MILWAUKEE VALVE

Swing Y Check Valve, Swing, Y-Style Valve Body, 1 Inch Pipe Size, FNPT x FNPT, Bronze
Model No. 515Y 1
SKU AA6AEY
$219.73 10% off$197.76 /unit (ex. VAT)
Add to Cart
Nylon Insulated Flanged Fork Terminal, 22-16 AWG Wire Size
THOMAS & BETTS

Nylon Insulated Flanged Fork Terminal, 22-16 AWG Wire Size
Model No. RA1203M
SKU BK9MAK
$3.40 /pkg. (ex. VAT)
Add to Cart

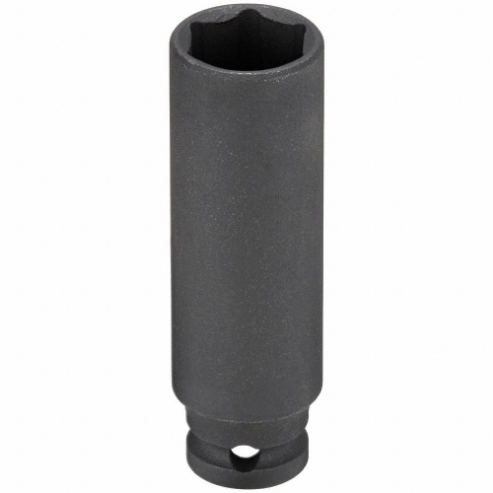

Impact Socket, 1/4 Inch Drive Size, 12 mm Socket Size, 6-Point, Deep, Black Oxide, Metric
