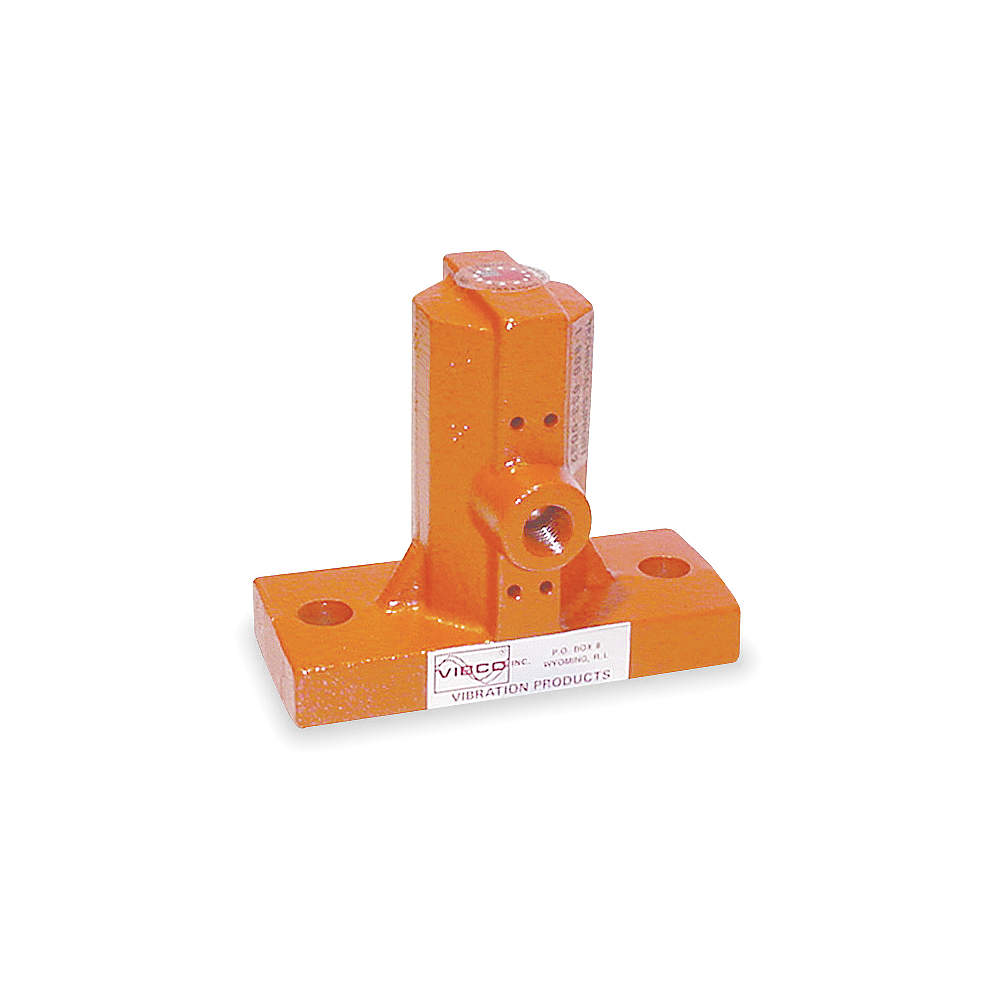

| Item | Pneumatic Vibrator |
|---|---|
| Air Flow Rate | 18 CFM @ 40 psi, 25 CFM @ 60 psi, 30 CFM @ 80 psi |
| Application | Chemical Plants, For Heavy Industry, Foundries And Paper Plants, Manufacturing, Mining, Plastics |
| Bin Weight Capacity | 8000 lbs. to 20000 lbs. |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Force @ Psi | 1900 lbf. @ 80 psi |
| Housing Material | Cast Iron |
| Inlet Connection Type | NPT |
| Inlet Port Size | 3/8" |
| Inlet Port Type | NPT |
| Maximum Vibration Speed | 2300 VPM |
| Mount Type | Bolt On |
|---|---|
| Mounting | Foot |
| Mounting Plate | Sold Separately |
| Overall Height | 9.45" |
| Overall Length | 10.51" |
| Overall Width | 5.04" |
| Pneumatic Vibrator Type | Piston |
| Series | 55 Series |
| Speed @ 60 Psi | 1950 VPM |
| Speed @ 80 Psi | 2300 VPM |
| Vibration Speeds @ Psi | 1650 VPM @ 40 psi, 1950 VPM @ 60 psi, 2300 VPM @ 80 psi |
| Vibrator Type | Piston |
| Height (cm) | 23.97 |
|---|---|
| Length (cm) | 26.67 |
| Width (cm) | 12.7 |
| HS Code | 8479899895 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 19.2645 |
| Style | Model | Housing Material | Bin Weight Capacity | Overall Length | Overall Width | Overall Height | Speed @ 60 Psi | Speed @ 80 Psi | Force Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 55-1 | Steel | 200 lbs. to 400 lbs. | 4.53" | 2.01" | 3.86" | 9000 VPM | 11000 VPM | - | $310.46 | |
| A | 55-1-1/2 | Steel | 1000 lbs. to 4000 lbs. | 9.02" | 3 1/2" | 7.24" | 4000 VPM | 5200 VPM | 585 lbs. | $431.06 | |
| B | 55-1-1/2S | Cast Iron | 400 lbs. to 1000 lbs. | 9.02" | 3 1/2" | 7.28" | 2400 VPM | 3200 VPM | - | $455.51 | |
| A | 55-1-1/4 | Steel | 1000 lbs. | 6" | 2 1/2" | 5 5/8" | 5500 VPM | 7000 VPM | 325 lbs. | $431.76 | |
| B | 55-1-1/4S | Cast Iron | 200 lbs. to 400 lbs. | 6.02" | 2 13/25" | 5.63" | 3300 VPM | 4200 VPM | - | $398.39 | |
| B | 55-1S | Cast Iron | 100 lbs. to 200 lbs. | 4.53" | 2.01" | 3.9" | 5400 VPM | 6600 VPM | - | $281.96 | |
| A | 55-2 | Steel | 4000 lbs. to 10000 lbs. | 9.02" | 3.82" | 7.24" | 4000 VPM | 5000 VPM | 610 lbs. | $521.32 |
