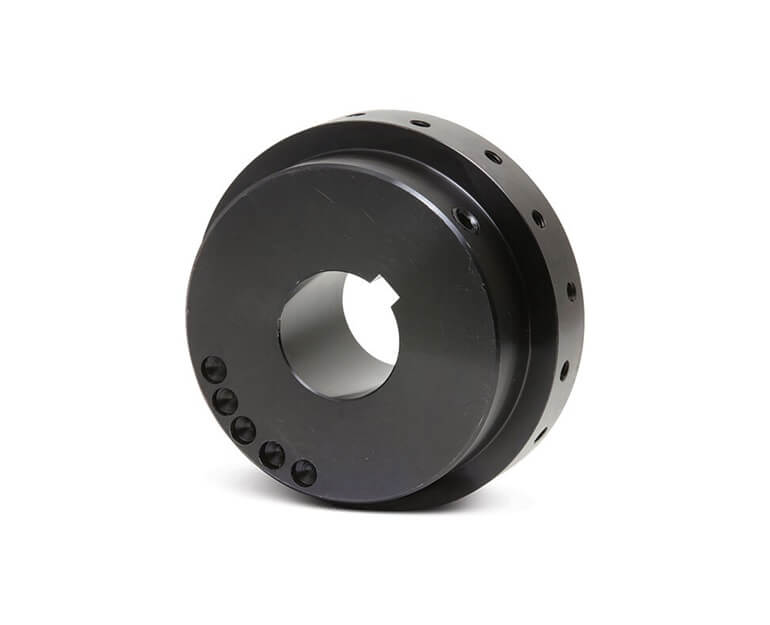

| Item | Flexible Shaft Coupling Hub |
|---|---|
| Bore Dia. | 2 5/8" |
| Bore Size | 2 mm |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Finished With Keyway |
| Element Type | Tire Coupling Hub |
| Hp Rating @ 100 Rpm | 35 hp |
| Hp Rating @ 1150 Rpm | 407 hp |
| Hp Rating @ 1200 Rpm | 407 hp |
| Hp Rating @ 1750 Rpm | 615 hp |
| Hp Rating @ 1800 Rpm | 615 hp |
| Hp Rating @ 3450 Rpm | 1229 hp |
| Hub Material | Low Carbon Steel |
| Hub Width | 3.62" |
| Keyway | 5/8" x 5/16" |
|---|---|
| Material | Low Carbon Steel |
| Max. Angular Misalignment | 2° |
| Max. Parallel Misalignment | 1/8" |
| Max. Speed | 3600 RPM |
| Operating Temp. | -40°F to +200°F |
| Operating Temp. Range | -40°F to +200°F |
| Product Type | Dura-Flex Bts Hub |
| Rated Torque | 22125 lbs.-in. |
| Setscrew Length | 1 3/4" |
| Size | WE70 |
| Temp. Rating | -40°F to +200°F |
| Type | Standard |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
|---|---|
| Weight (kg) | 18.45 |
