| Item | Hot Water Circulator Pump |
|---|---|
| Amps | 1/1.9A |
| Best Efficiency Flow Rate @ Head | 30 GPM @ 17 ft. |
| Body Gasket Material | EPDM |
| Compatible Discharge Pipe Size | 1 1/4", 1 1/2" |
| Compatible Pipe Size | 1 1/4", 1 1/2" |
| Connection Style | Flange |
| Connection Type | Flange |
| Drive Type | Direct |
| Face To Face Dimension | 8 1/2" |
| Features | Compact, High Performance, Mechanical Seal, Permanently Lubricated Ball Bearings |
| Flange Or Union Included | No |
| For Pipe Size | 1 1/4", 1 1/2" |
| For Use With Potable Systems | Yes |
| Frequency | 60 Hz |
| Housing Material | Cast Iron |
| Hp | 1/6 hp |
| Impeller Material | Plastic |
| Includes | Flange Gaskets |
| Inlet/outlet Size | 1 1/2" |
| Loop Configuration | Closed |
| Manufacturer Warranty Length | 3 yrs. |
| Max. Feet Of Head | 27 ft. |
| Max. Flow Rate @ 10 Ft. | 38 GPM |
| Max. Flow Rate @ 15 Ft. | 30 GPM |
| Max. Flow Rate @ 20 Ft. | 22 GPM |
| Max. Flow Rate @ 25 Ft. | 10 GPM |
| Max. Flow Rate @ Head | 57 GPM @ 1 ft. |
| Max. Head | 27 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 150 psi |
| Max. Temp. | 225°F |
| Maximum Flow Rate @ 1 Feet Of Head | 30 GPM |
| Maximum Flow Rate @ 10 Feet Of Head | 38 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 30 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 22 GPM |
| Maximum Flow Rate @ 25 Feet Of Head | 10 GPM |
| Maximum Rpm | 3450 RPM |
| Mechanical Seal Material | Carbon, Silicon Carbide |
| Min. Flow Rate @ Head | 10 GPM @ 25 ft. |
| Min. Media Temp. | 40°F |
|---|---|
| Mounting Location | Inline |
| Mounting Type | Inline |
| Nameplate Voltage | 115/230V AC |
| No. Of Speeds | 1 |
| Overall Length | 8" |
| Overall Width | 4 3/4" |
| Phase | 1 |
| Phase And Brand | Taco Single Phase |
| Pump Housing Material | Cast Iron |
| Pump Mount | In Line |
| Pump Size | 1AAB |
| Pump Type | Standard |
| Rotor Type | Dry |
| Series | 2400-30 Series |
| Series Family | 2400 Series |
| Shaft Material | Stainless Steel |
| Shut-off | 29 ft. |
| Thermal Protection | Yes |
| Voltage | 115/240V AC |
| Warranty | 3 yrs. |
| Best Efficiency Gpm @ Head | 30 GPM at 17 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/4" |
| For Use With | Potable Systems |
| Hvac Circulating Pump Type | Hydronic Circulating Pump |
| Impeller Material | Noryl |
| Inlet/outlet Size | 1-1/2" |
| Length | 8" |
| Max. Gpm @ Head | 38 GPM at 10 ft. |
| Max. Rpm | 3450 RPM |
| Mechanical Seal | Carbon, Silicon Carbide |
| Min. Gpm @ Head | 10 GPM at 25 ft. |
| Package Quantity | 1 |
| Pump Type | In Line, Mechanical Seal, Ball Bearing |
| Standard Logo | nsf.png, ul.png |
| Standards | NSF, UL-CUS |
| Straight Wireway Length | 8" |
| Width | 4 3/4" |
| Height (cm) | 16 |
|---|---|
| Length (cm) | 24.13 |
| Width (cm) | 21.34 |
| HS Code | 8413702090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 6.5295 |
| Style | Model | Hp | Voltage | Phase | Face To Face Dimension | Amps | Compatible Discharge Pipe Size | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

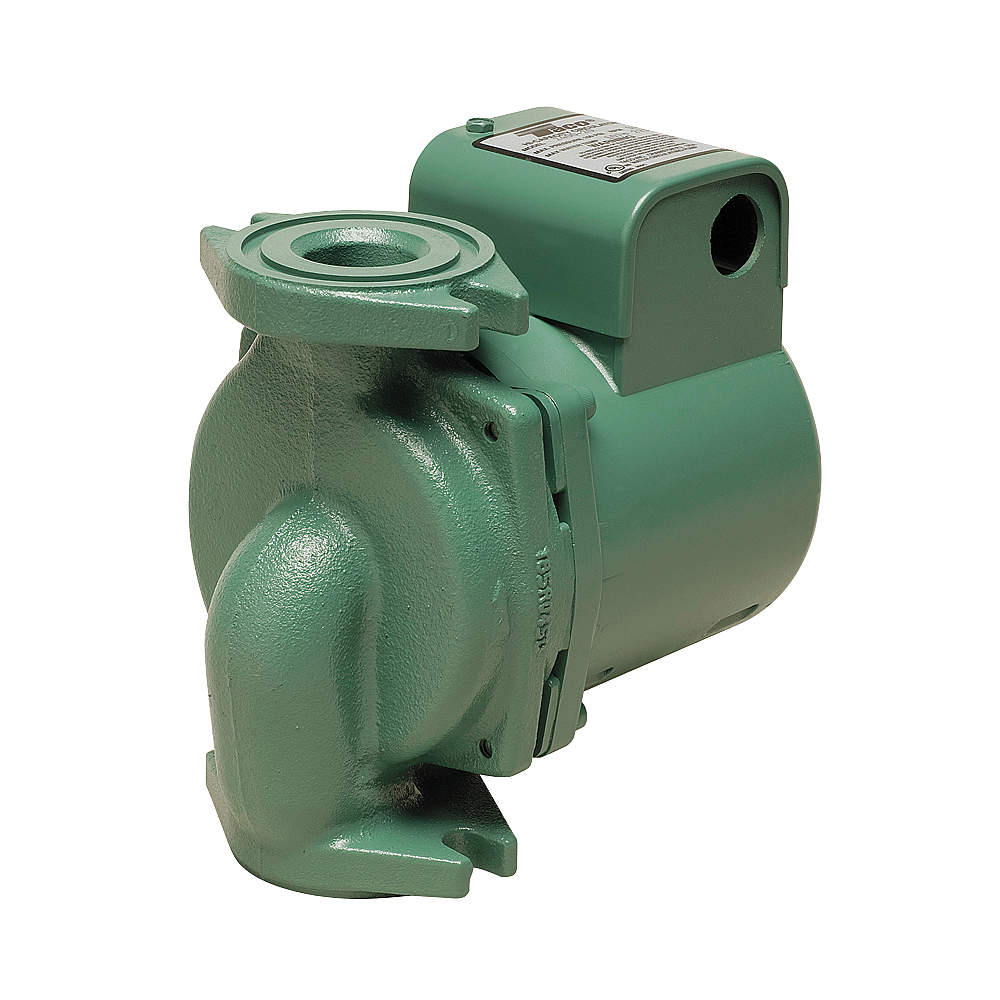

| A | 2400-20-3P | 1/6 hp | 115V AC | 1 | 6 3/8" | 1/1.9A | 3/4", 1", 1 1/4", 1 1/2" | 6.88" | 4 1/2" | $897.18 | |

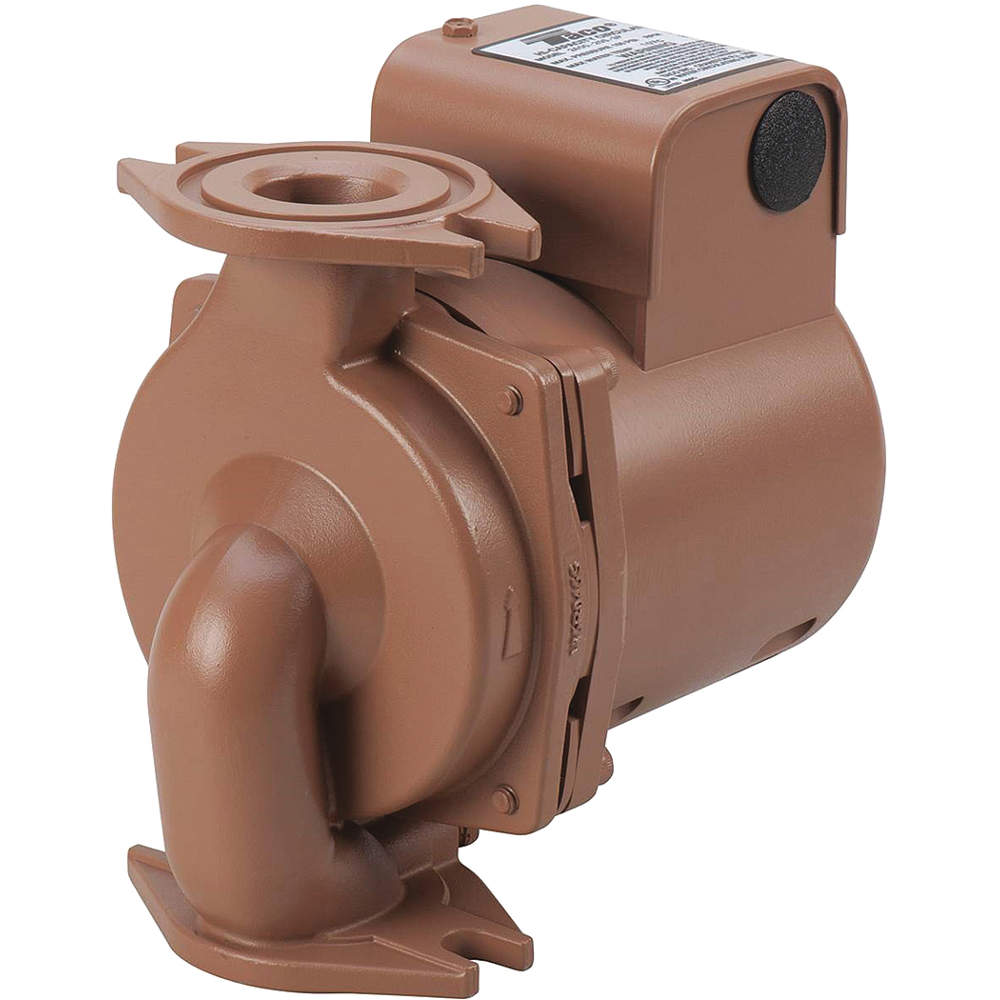

| B | 2400-20S-3P | 1/6 hp | 115V AC | 1 | 6 3/8" | 1/1.9A | 3/4", 1", 1 1/4", 1 1/2" | 6.88" | 4 1/2" | $1,498.08 | |
| C | 2400-30S-3P | 1/6 hp | 115/240V AC | 1 | 8 1/2" | 1/1.9A | 1 1/4", 1 1/2" | 8" | 4 3/4" | $1,477.22 | |
| D | 2400-40-3P | 1/6 hp | 115/240V AC | 1 | 8 1/2" | 1/1.9A | 1 1/4", 1 1/2" | 8" | 4 3/4" | $1,249.99 | |
| C | 2400-40S-3P | 1/6 hp | 115/240V AC | 1 | 8 1/2" | 1/1.9A | 1 1/4", 1 1/2" | 8" | 4 3/4" | $1,699.24 | |
| D | 2400-50-3P | 1/2 hp | 115/240V AC | 1 | 6 3/8" | 2.4/4.9A | 3/4", 1", 1 1/4", 1 1/2" | 8 3/4" | 4.63" | $1,740.70 | |

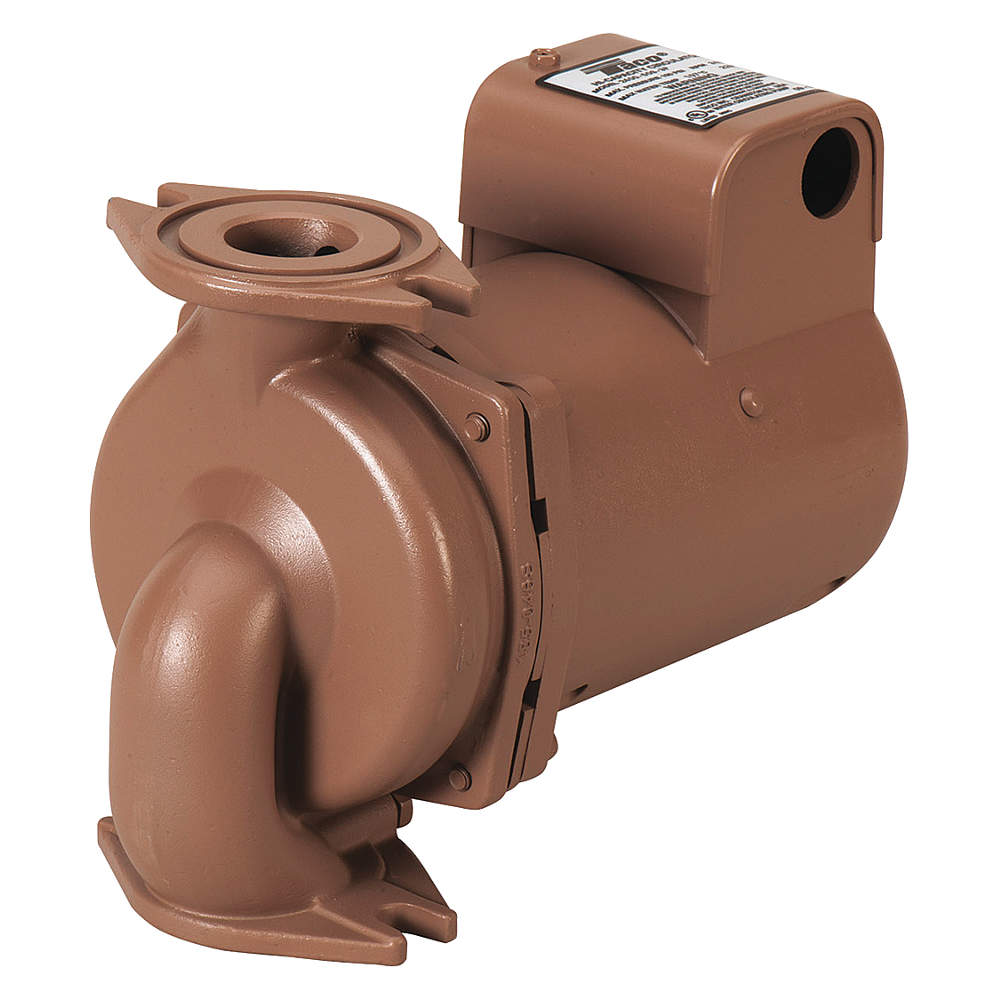

| E | 2400-50S-3P | 1/2 hp | 115V AC | 1 | 6 3/8" | 2.4/4.9A | 3/4", 1", 1 1/4", 1 1/2" | 8 3/4" | 4.63" | $2,062.41 |
