| Item | Mixed Flow Duct Fan |
|---|---|
| Airflow @ 0.000 In Sp | 293 CFM |
| Application | General Purpose |
| Bearing Type | Ball |
| Cfm @ 0.000-in. Sp | 293/218 CFM |
| Cfm @ 0.125-in. Sp | 273/193 CFM |
| Cfm @ 0.250-in. Sp | 250/163 CFM |
| Cfm @ 0.375-in. Sp | 227/128 CFM |
| Cfm @ 0.500-in. Sp | 206/105 CFM |
| Cfm @ 0.750-in. Sp | 131/24 CFM |
| Cfm @ 1.000-in. Sp | 35 CFM |
| Duct Dia. | 6" |
| Fits Duct Dia. | 6" |
| Flange Width | 1 1/8" |
| High-efficiency Motor | No |
| Housing Dia. | 7 7/8" |
| Housing Material | Thermoplastic |
| Hp | 1/10 hp |
| Includes | Mounting Bracket |
| Inlet And Outlet Dia. | 5 7/8" |
| Length | 8 3/8" |
|---|---|
| Max. Amps | 0.54A |
| Max. Inlet Temp. | 104°F |
| Max. Wattage | 65/54 W |
| Maximum Inlet Air Temperature | 140°F |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Motor Output Power | 65 W |
| Motor Speed | 2300/1700 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 120V AC |
| Number Of Speeds | 2 |
| Overall Dia. | 7 7/8" |
| Overall Height | 5" |
| Overall Width | 5" |
| Phase | 1 |
| Speed Control | Yes |
| Standards | CULUS, HVI |
| Height (cm) | 37.59 |
|---|---|
| Length (cm) | 30.48 |
| Width (cm) | 30.48 |
| HS Code | 8414596095 |
|---|---|
| Country Of Origin | ES |
| Weight (kg) | 3.3975 |
| Style | Model | Airflow @ 0.000 In Sp | Duct Dia. | Housing Material | Motor Output Power | Motor Speed | Height | Max. Inlet Temp. | Housing Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TD-150S | 333 CFM | 6" | Plastic | 65 W | 2700/2000 RPM | 8.688" | 140°F | 8 11/16" | $504.55 | |
| A | TD-200S | 530 CFM | 8" | Thermoplastic | 122 W | 2200/2000 RPM | 10 3/8" | 140°F | 10 3/8" | $633.84 | |
| B | KIT-TD100 | 101 CFM | 4" | Thermoplastic | 26 W | 2500/2450 RPM | - | 104°F | 5 1/2" | $269.71 | |

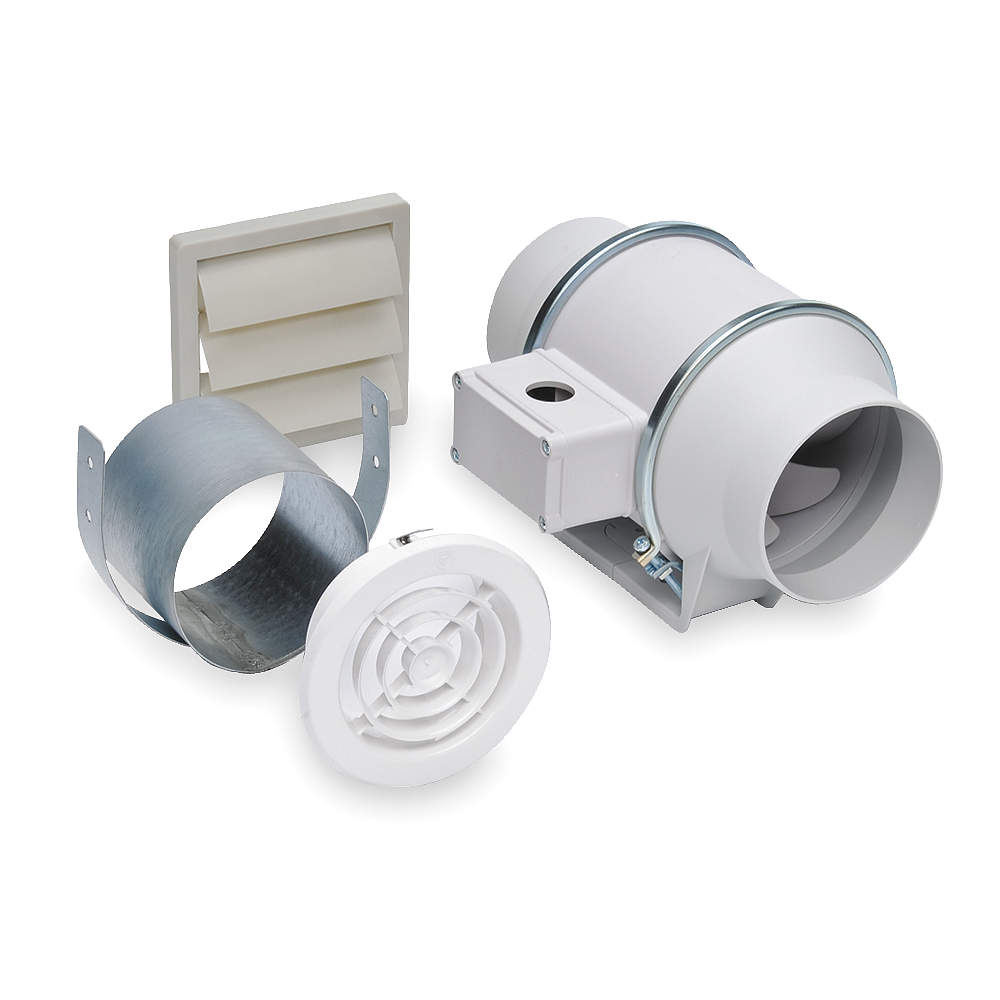

| C | KIT-TD150 | 293 CFM | 6" | Thermoplastic | 65 W | 2300/1700 RPM | - | 104°F | 7 7/8" | $389.31 | |

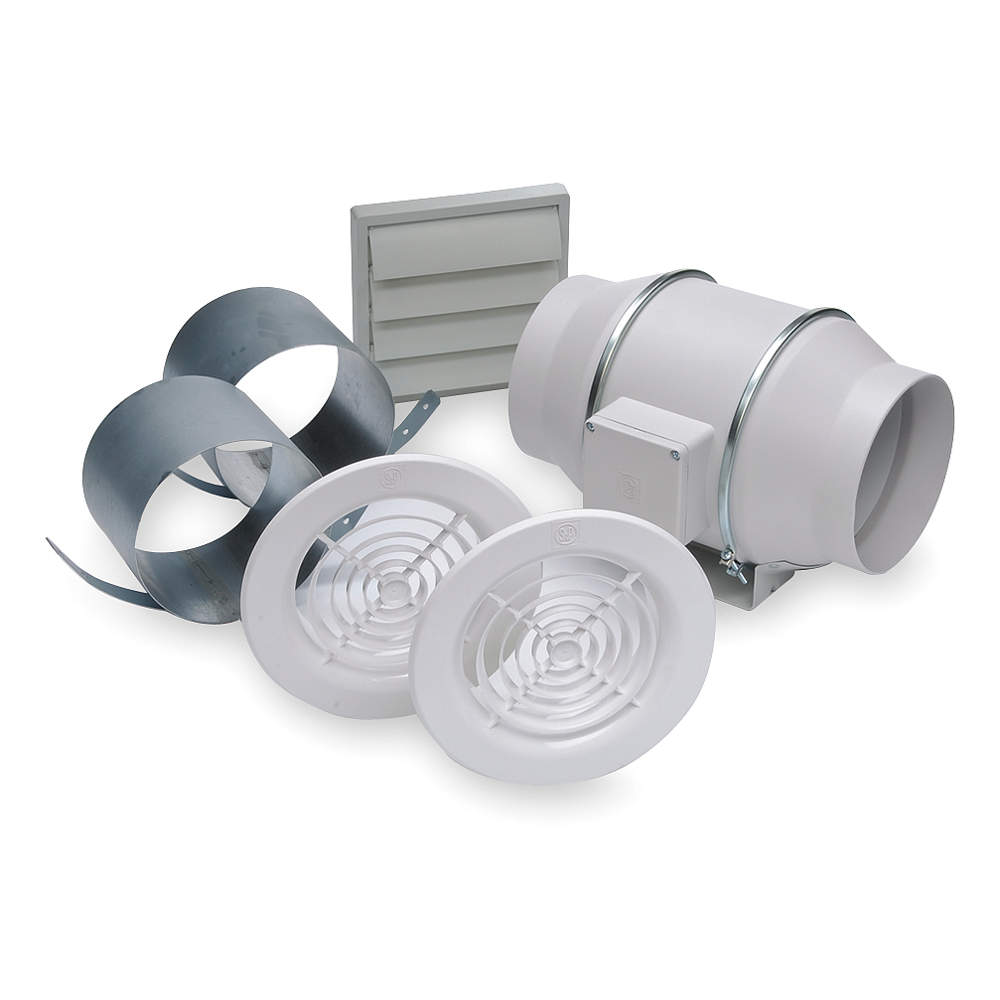

| D | KIT-TD150-DV | 293 CFM | 6" | Thermoplastic | 65 W | 2300/1700 RPM | - | 104°F | 7 7/8" | $453.50 | |
| E | TD-100 | 101 CFM | 4" | Thermoplastic | 26 W | 2500/2450 RPM | - | 104°F | 5 7/16" | $224.49 | |
| E | TD-125 | 197 CFM | 5" | Thermoplastic | 38 W | 2150/1650 RPM | - | 104°F | 6 7/8" | $288.04 |
