| Item | Mixed Flow Duct Fan |
|---|---|
| Airflow @ 0.000 In Sp | 101 CFM |
| Application | General Purpose |
| Bearing Type | Ball |
| Cfm @ 0.000-in. Sp | 101/97 CFM |
| Cfm @ 0.125-in. Sp | 85/81 CFM |
| Cfm @ 0.250-in. Sp | 57/51 CFM |
| Cfm @ 0.375-in. Sp | 19/16 CFM |
| Duct Dia. | 4" |
| Fits Duct Dia. | 4" |
| Flange Width | 1" |
| High-efficiency Motor | No |
| Housing Dia. | 5 1/2" |
| Housing Material | Thermoplastic |
| Hp | 1/25 hp |

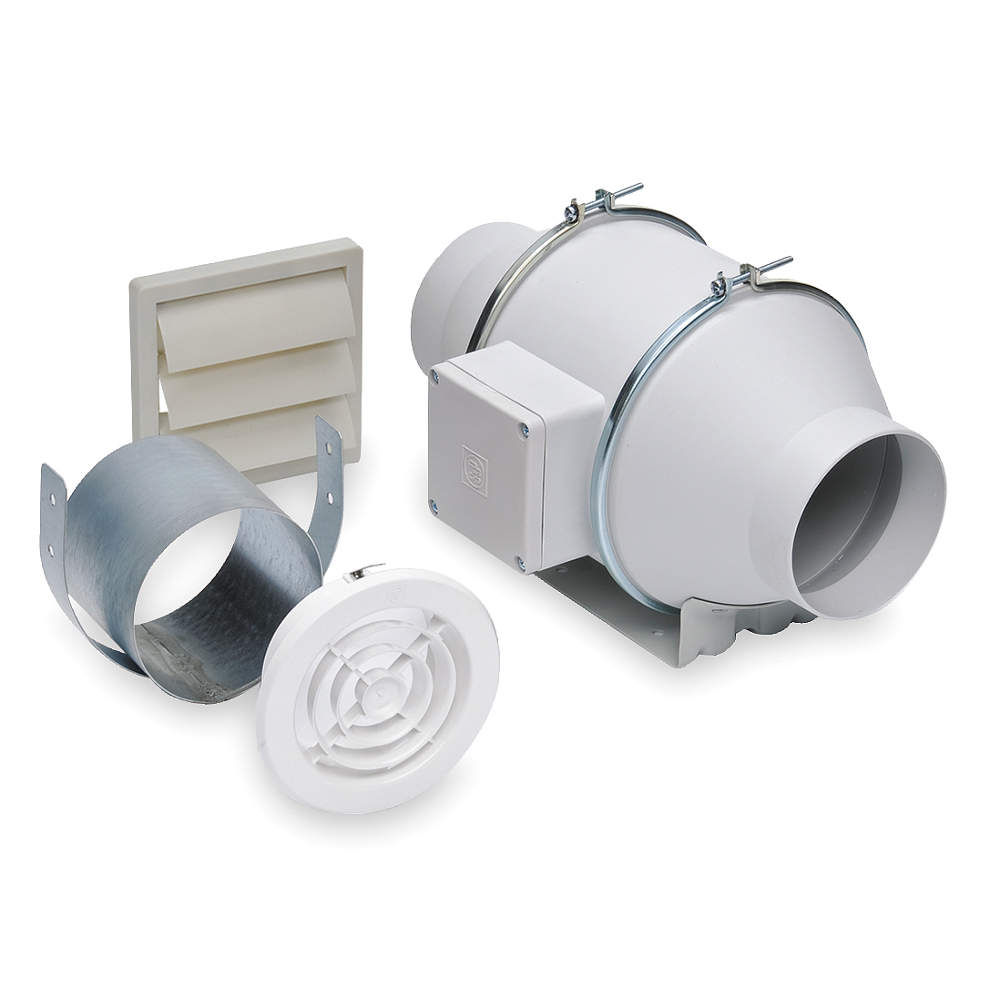

| Includes | (1) Exterior Termination Louver, (1) Intake Grill, Mounting Bracket |
| Inlet And Outlet Dia. | 3 7/8" |
| Length | 6" |
|---|---|
| Max. Amps | 0.45A |
| Max. Inlet Temp. | 104°F |
| Max. Wattage | 26/23 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Motor Output Power | 26 W |
| Motor Speed | 2500/2450 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 120V AC |
| Number Of Speeds | 2 |
| Overall Dia. | 5 1/2" |
| Overall Height | 3 3/4" |
| Overall Width | 3 3/4" |
| Phase | 1 |
| Speed Control | Yes |
| Height (cm) | 24.89 |
|---|---|
| Length (cm) | 32.26 |
| Width (cm) | 17.02 |
| HS Code | 8414901080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.9125 |
| Style | Model | Airflow @ 0.000 In Sp | Duct Dia. | Housing Material | Motor Output Power | Motor Speed | Height | Max. Inlet Temp. | Housing Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | TD-150S | 333 CFM | 6" | Plastic | 65 W | 2700/2000 RPM | 8.688" | 140°F | 8 11/16" | $504.55 | |
| A | TD-200S | 530 CFM | 8" | Thermoplastic | 122 W | 2200/2000 RPM | 10 3/8" | 140°F | 10 3/8" | $633.84 | |

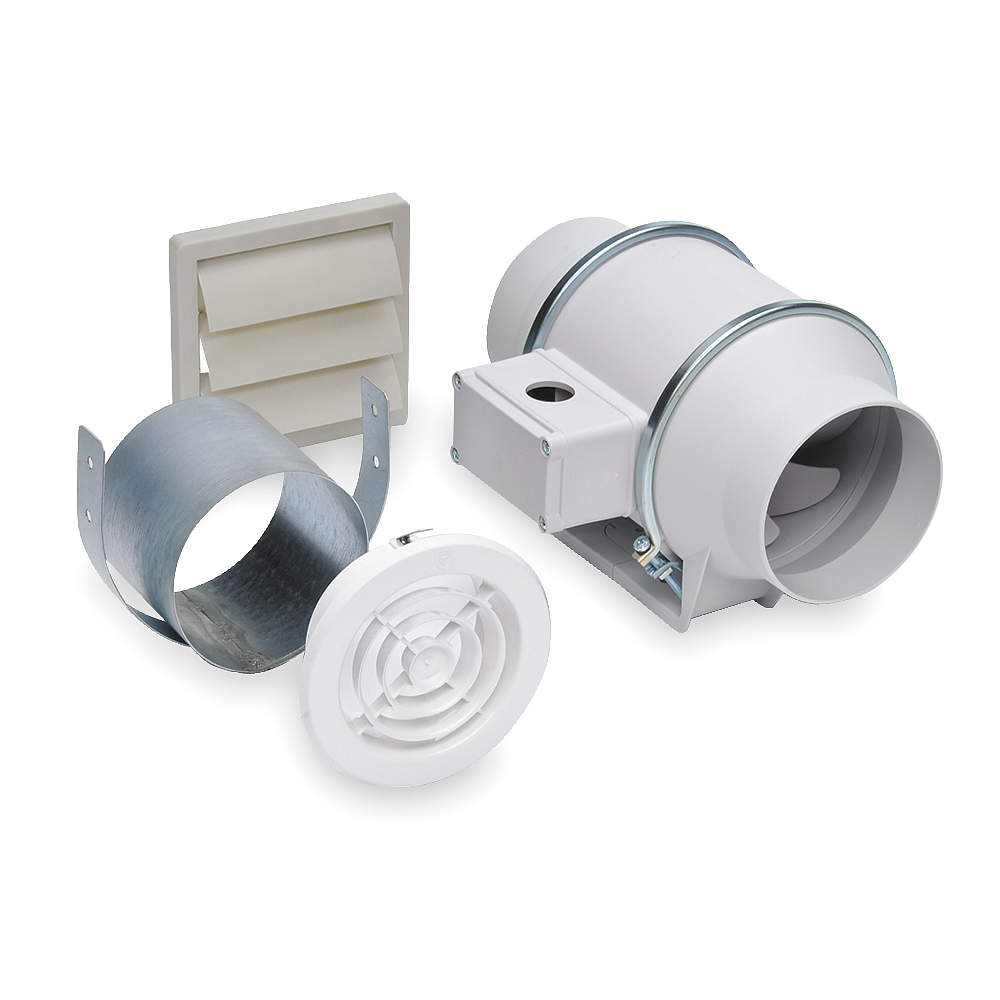

| B | KIT-TD150 | 293 CFM | 6" | Thermoplastic | 65 W | 2300/1700 RPM | - | 104°F | 7 7/8" | $389.31 | |

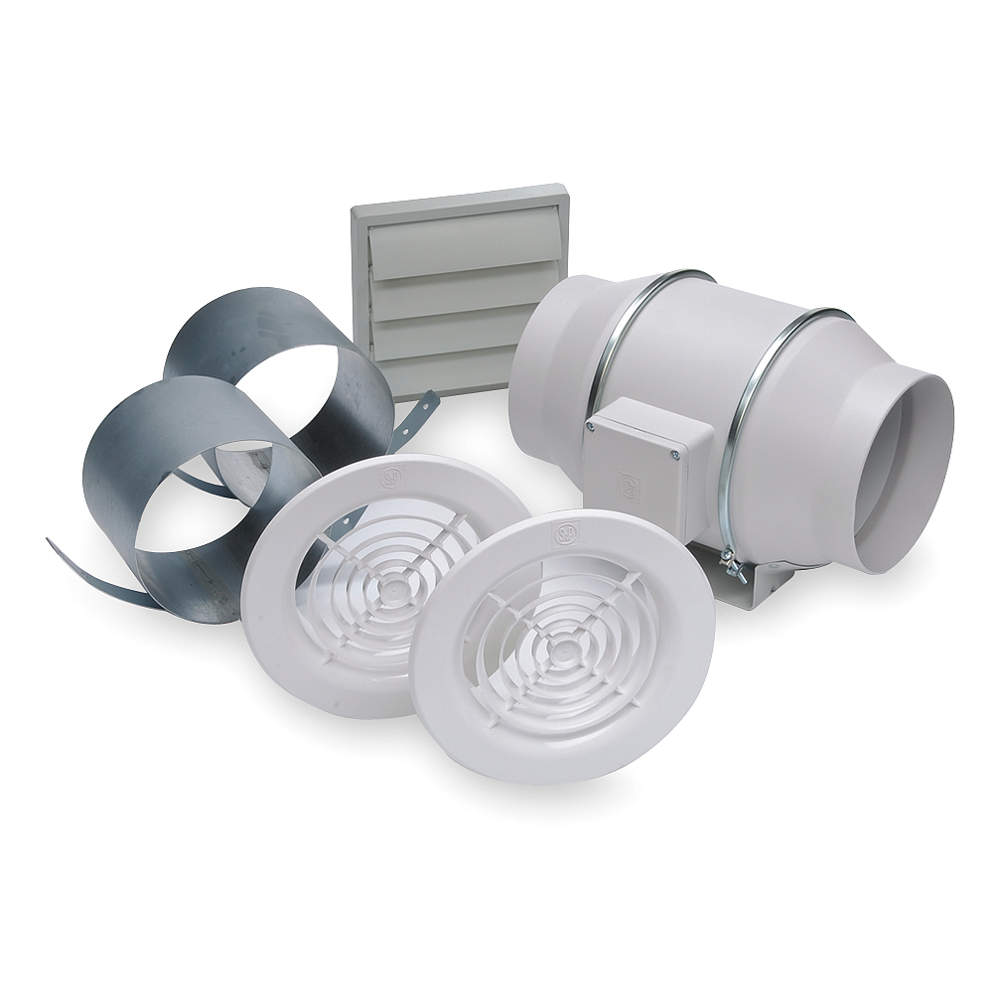

| C | KIT-TD150-DV | 293 CFM | 6" | Thermoplastic | 65 W | 2300/1700 RPM | - | 104°F | 7 7/8" | $453.50 | |

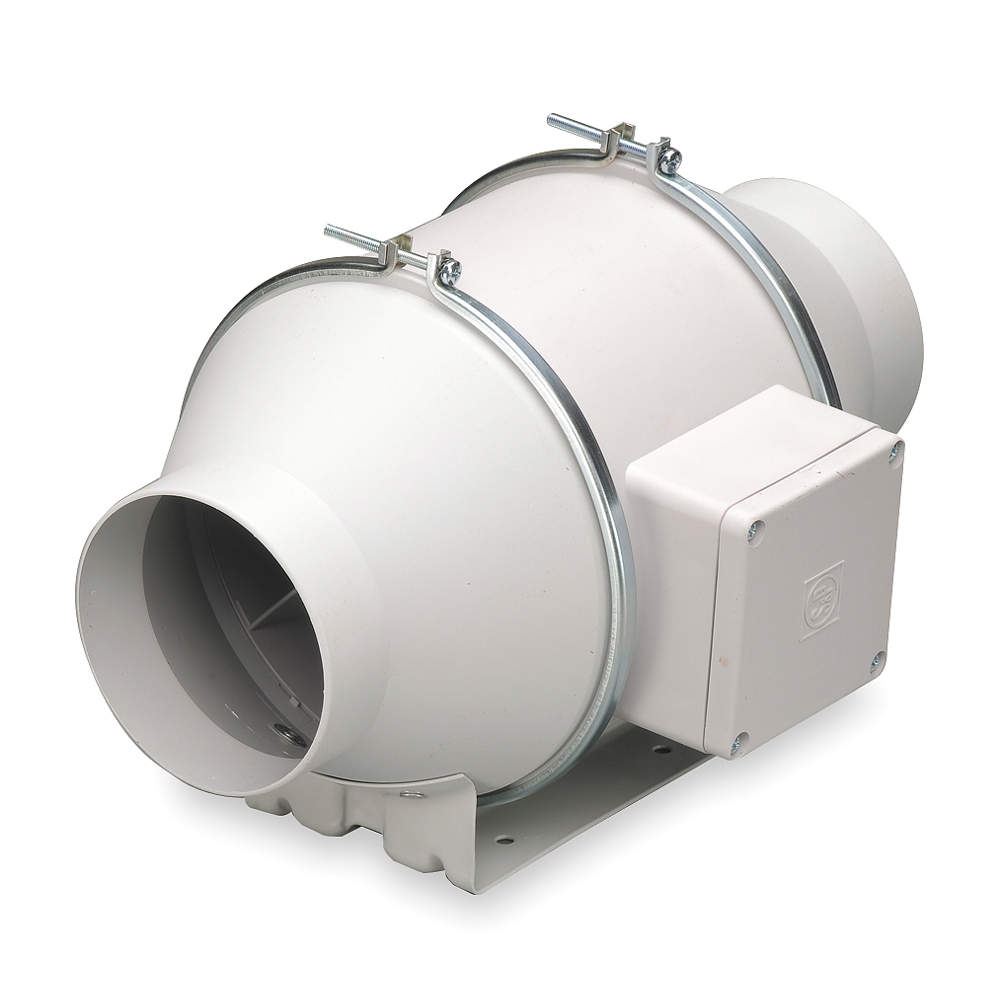

| D | TD-100 | 101 CFM | 4" | Thermoplastic | 26 W | 2500/2450 RPM | - | 104°F | 5 7/16" | $224.49 | |
| D | TD-125 | 197 CFM | 5" | Thermoplastic | 38 W | 2150/1650 RPM | - | 104°F | 6 7/8" | $288.04 | |
| D | TD-150 | 293 CFM | 6" | Thermoplastic | 65 W | 2300/1700 RPM | - | 104°F | 7 7/8" | $328.02 |
