| Item | Inline Centrifugal Duct Fan |
|---|---|
| Airflow @ 0.000 In Sp | 206 CFM |
| Application | General Purpose |
| Bearing Type | Ball |
| Cfm @ 0.000-in. Sp | 206 CFM |
| Cfm @ 0.100-in. Sp | 197 CFM |
| Cfm @ 0.125-in. Sp | 190 CFM |
| Cfm @ 0.200-in. Sp | 177 CFM |
| Cfm @ 0.250-in. Sp | 170 CFM |
| Cfm @ 0.375-in. Sp | 153 CFM |
| Cfm @ 0.400-in. Sp | 146 CFM |
| Cfm @ 0.450-in. Sp | 141 CFM |
| Cfm @ 0.600-in. Sp | 121 CFM |
| Cfm @ 0.750-in. Sp | 110 CFM |
| Cfm @ 0.800-in. Sp | 103 CFM |
| Cfm @ 1.000-in. Sp | 88 CFM |
| Cfm @ 1.200-in. Sp | 57 CFM |
| Cfm @ 1.500-in. Sp | 33 CFM |
| Duct Dia. | 5" |
| Fits Duct Dia. | 5" |
| Flange Width | 1" |
| For Fan Type | Dryer Booster |
| Height | 7 5/8" |
| High-efficiency Motor | No |
| Housing Dia. | 9 1/2" |
|---|---|
| Housing Finish | Epoxy Coated |
| Housing Material | Galvanized Metal |
| Includes | Mounting Bracket |
| Inlet And Outlet Dia. | 5" |
| Length | 9 1/2" |
| Max. Amps | 0.708A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 85 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Motor Output Power | 85 W |
| Motor Speed | 2745 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 120V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 7 7/8" |
| Overall Height | 7 5/8" |
| Overall Width | 9 1/2" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Standards | AMCA, HVI, UL |

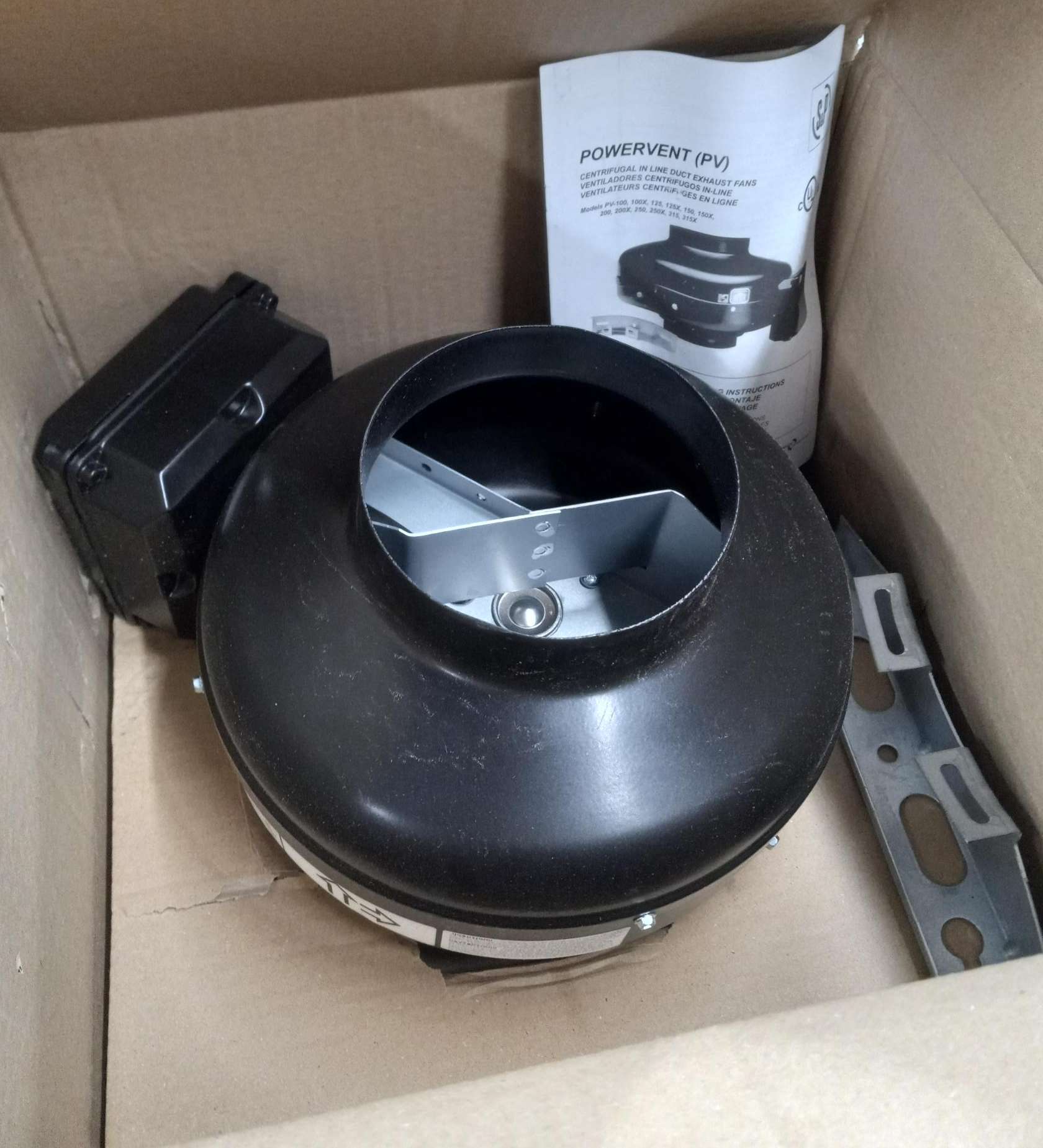

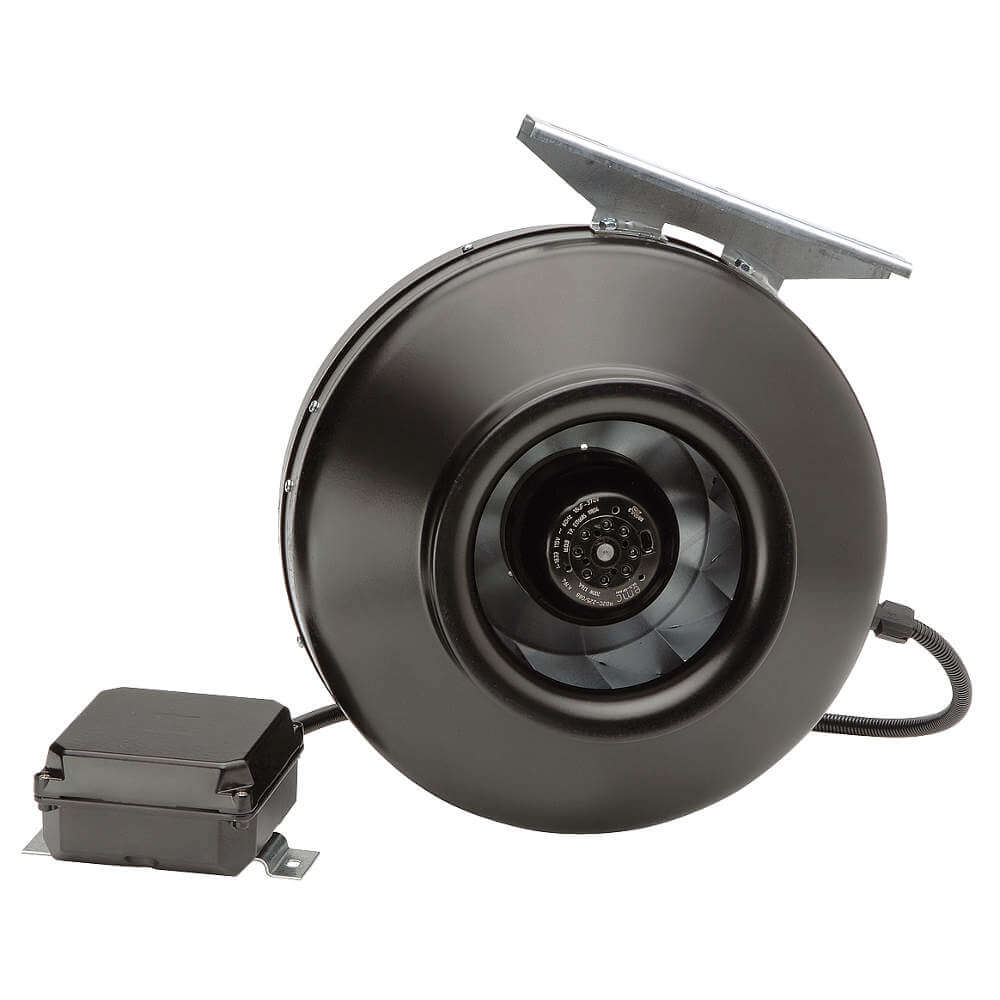

Soler & Palau PV-125X inline centrifugal duct fan is ideal for efficiently moving air through duct systems, ensuring proper ventilation & air circulation in commercial and industrial settings. This fan is suitable for HVAC systems, where it helps regulate indoor air quality & temperature.
| Height (cm) | 24.89 |
|---|---|
| Length (cm) | 35.31 |
| Width (cm) | 36.58 |
| HS Code | 8414596095 |
|---|---|
| Country Of Origin | ES |
| Weight (kg) | 4.1625 |
This fan speed can be controlled using voltage or frequency control regulators.
Major factors include airflow needs, duct diameter, application, mounting options, motor specifications, speed control, operating conditions, energy efficiency and noise level.
| Style | Model | Airflow @ 0.000 In Sp | Motor Speed | Height | Duct Dia. | Motor Output Power | Housing Dia. | Inlet And Outlet Dia. | Max. Wattage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

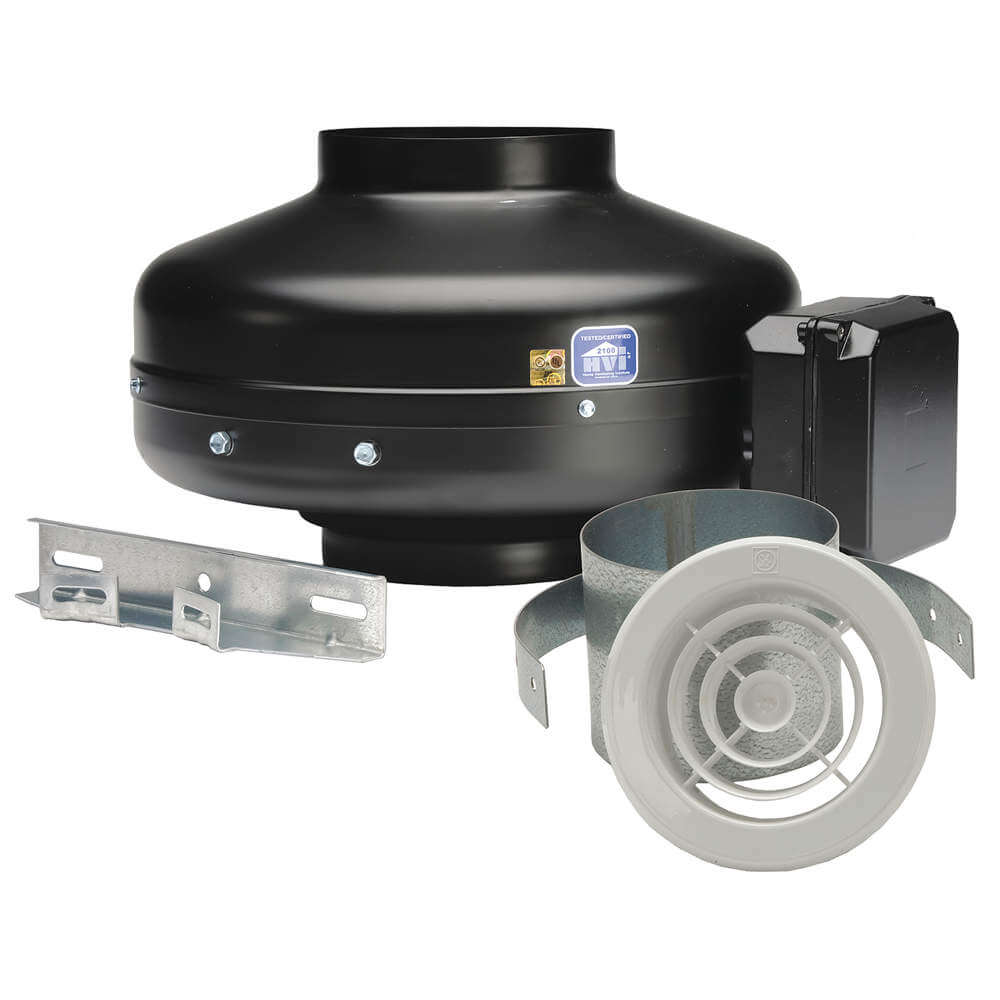

| A | KIT-PV100X | 153 CFM | 2880 RPM | 7 5/8" | 4" | 84 W | 9 1/2" | 4" | 84 W | $341.89 | |

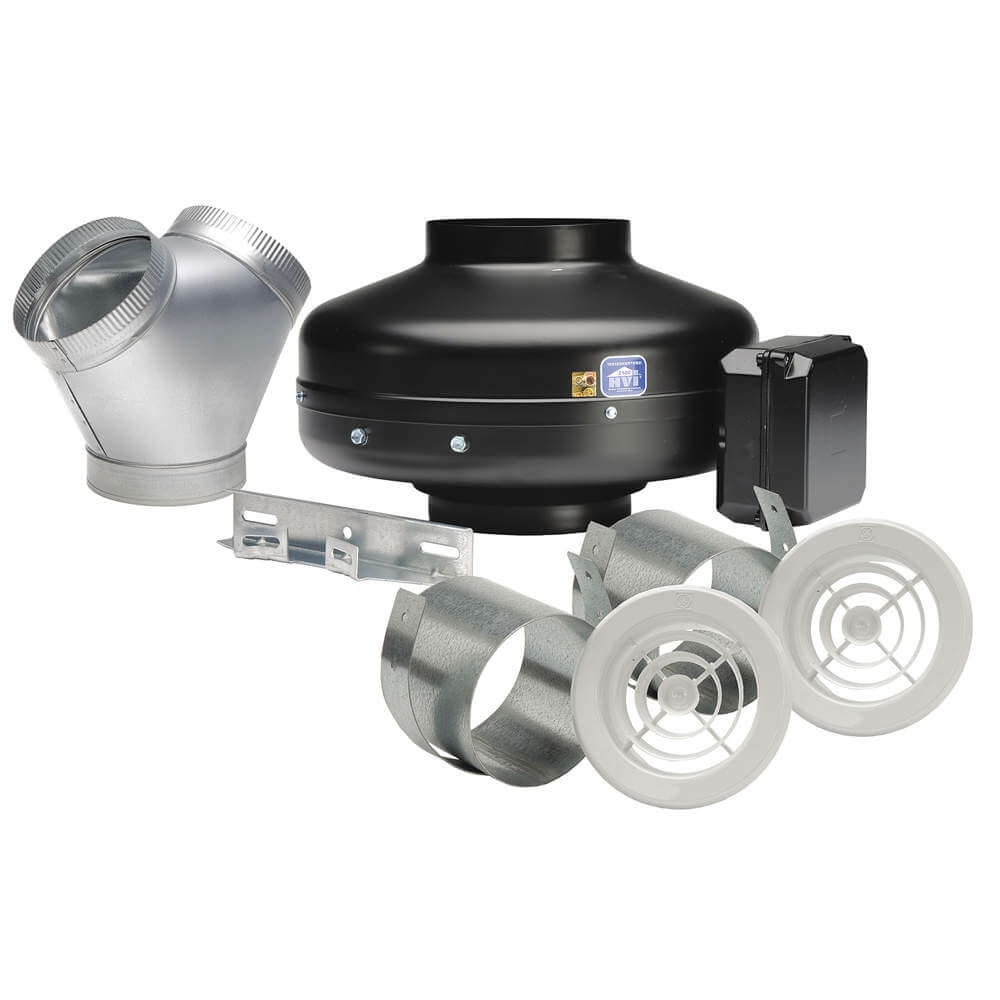

| B | KIT-PV100X-DV | 153 CFM | 2880 RPM | 7 5/8" | 4" | 84 W | 9 1/2" | 4" | 84 W | $397.56 | |
| B | KIT-PV200X-DV | 402 CFM | 3100 RPM | 8 1/2" | - | - | 13 1/8" | 8" | 130 W | $549.45 | |

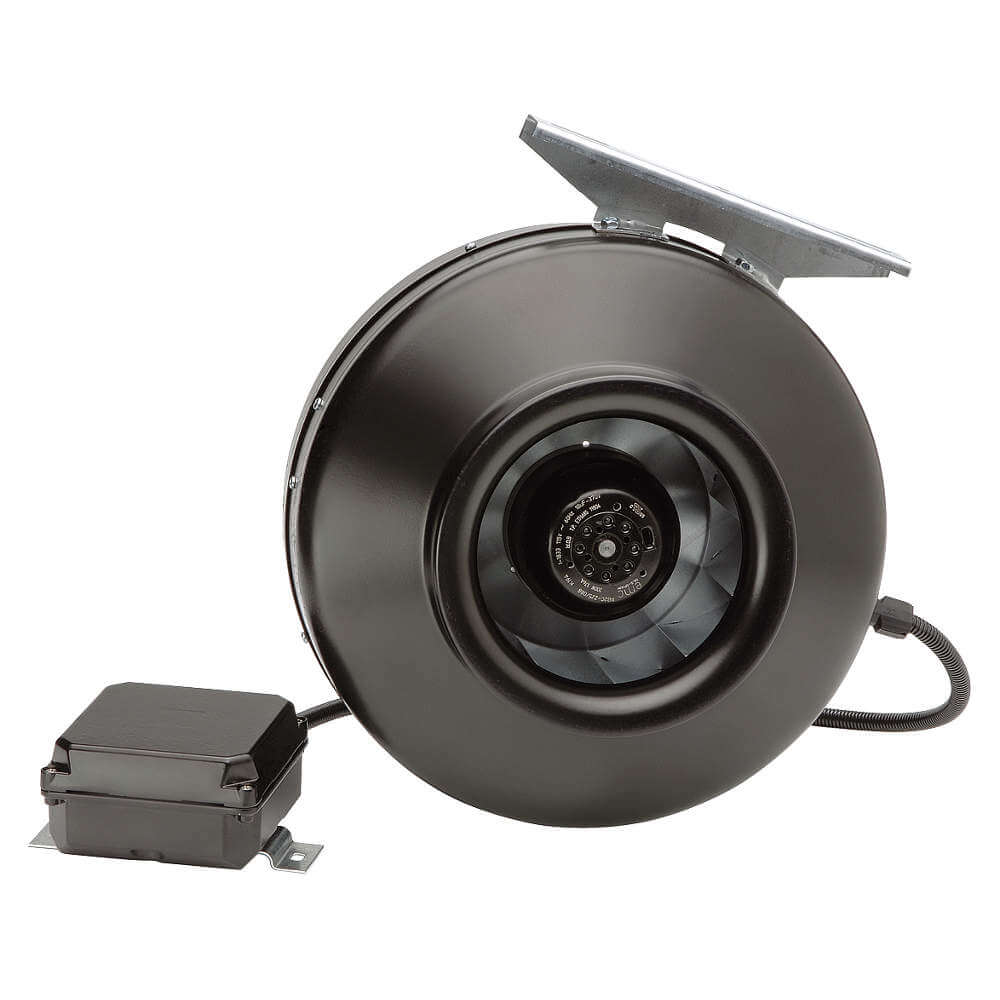

| C | PV-100X | 153 CFM | 2880 RPM | 7 5/8" | 4" | 84 W | 9 1/2" | 4" | 84 W | $321.00 | |
| D | PV-150X | 390 CFM | 3075 RPM | 8 1/2" | 6" | 130 W | 13 1/8" | 6" | 130 W | $397.81 | |
| D | PV-200X | 544 CFM | 2930 RPM | 8 1/2" | 8" | 180 W | 13 1/8" | 8" | 180 W | $555.46 | |
| D | PV-250X | 618 CFM | 3045 RPM | 8 1/2" | 10" | 214 W | 13 1/8" | 10" | 214 W | $641.56 |
