| Item | Long Barrel Splice |
|---|---|
| Barrel Finish | Tin Plated |
| Barrel Id | 0.36" |
| Barrel Inside Dia. | 9/25" |
| Barrel Outside Dia. | 0.47" |
| Barrel Size | Long |
| Color Code | Green |
| Contact Finish | Tin |
| Contact Material | Copper |
| Die Code | 37 |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Length | 2.02" |
| Length (straight Wireway) | 2.02" |
| Material | Copper |
| Material Properties | High Conductivity |
| Max. Wire Size | 1 AWG |
| Maximum Conductors | 1 |
|---|---|
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V |
| Maximum Wire Insulation Diameter | 0.47" |
| Min. Wire Size | 1 AWG |
| Number Of Crimps | 4 |
| Outside Dia. | 0.47" |
| Overall Length | 2.02" |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Low Installed Cost, Provide A Low-Resistance Connection Of High Quality |
| Strip Length | 1 1/32" |
| Termination Style | Crimp |
| Wire Gauge | 1 AWG |
| Wire Size | 1 AWG |
| Standards | ANSI, UL 486A-486B |
| Height (cm) | 1.55 |
|---|---|
| Length (cm) | 10 |
| Width (cm) | 6 |
| HS Code | 8536904000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.027 |
| Style | Model | Color Code | Die Code | Overall Length | Wire Size | Wire Gauge | Material Properties | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | 22EZ30 | Red | 21 | 1.77" | 8 AWG | 8 AWG | High Conductivity | $5.53 | |

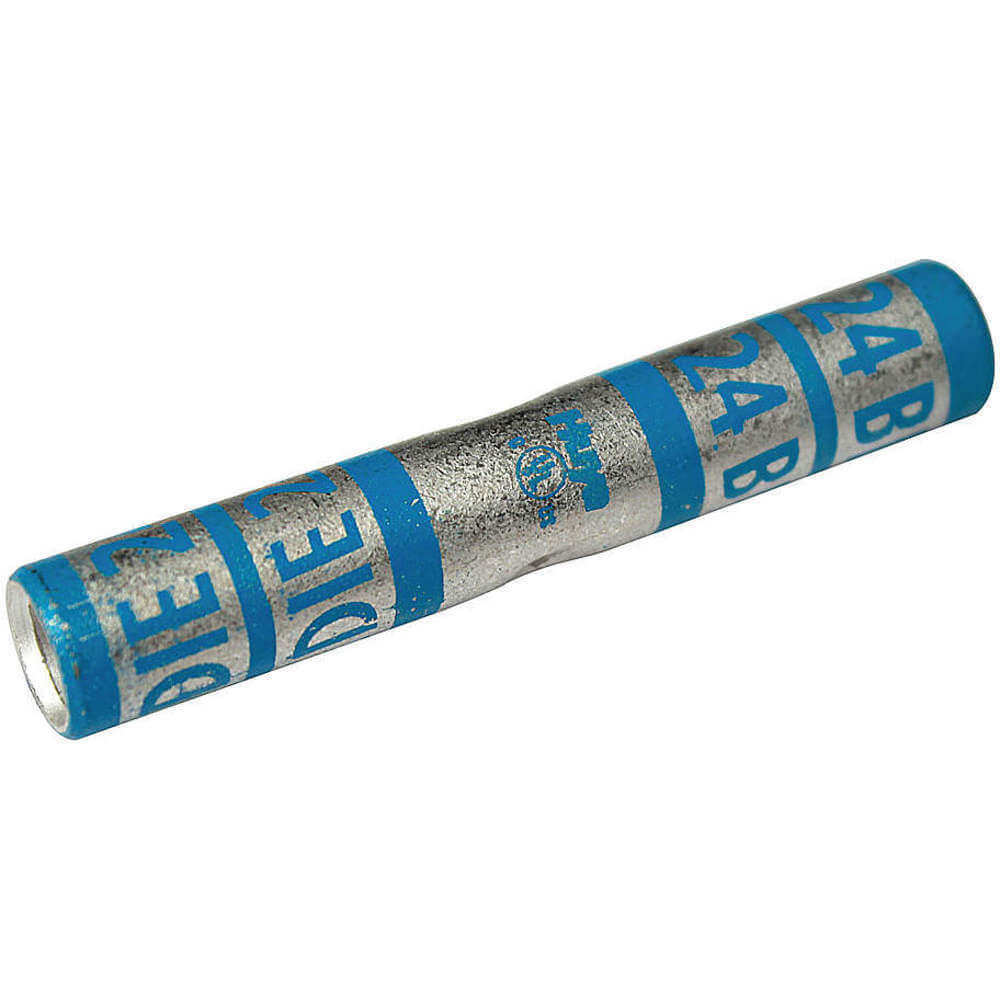

| B | 22EZ31 | Blue | 24 | 1.77" | 6 AWG | 6 AWG | High Conductivity | $5.20 | |
| C | 22EZ32 | Gray | 29 | 1.77" | 4 AWG | 4 AWG | High Conductivity | $5.86 | |

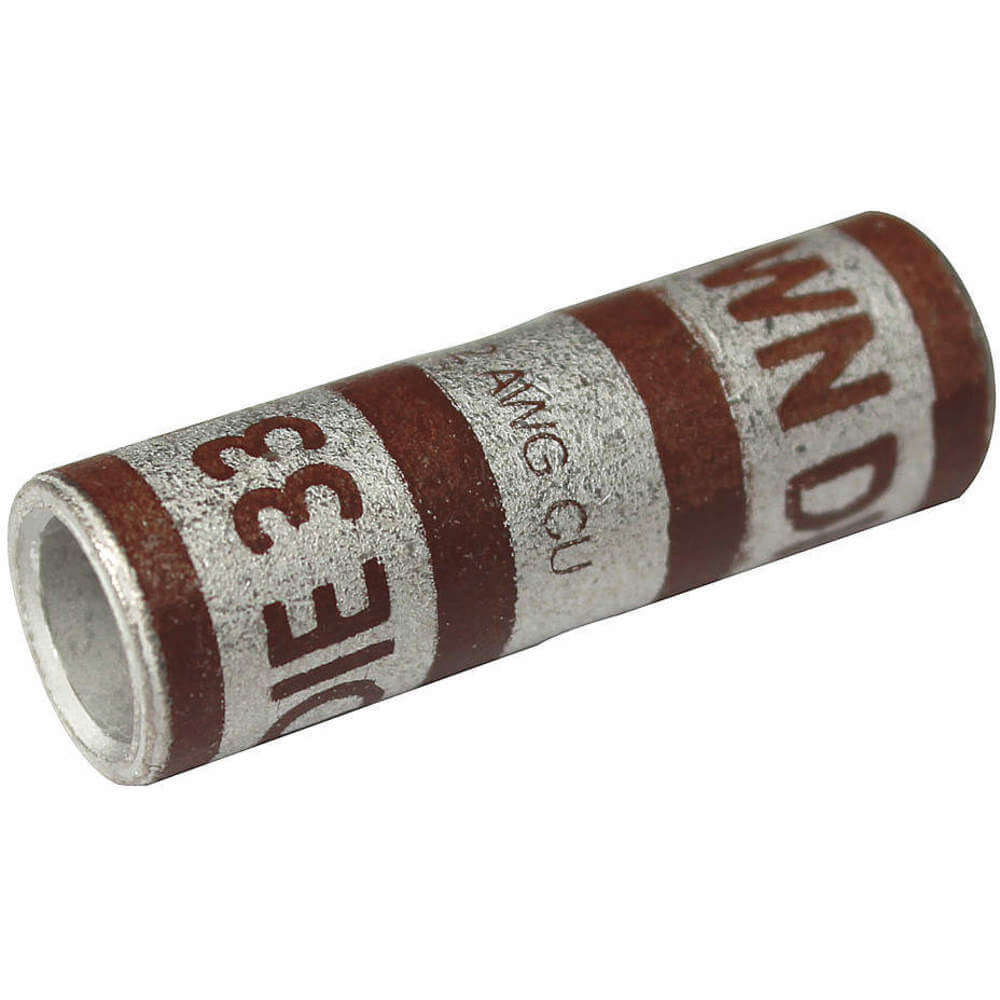

| D | 22EZ33 | Brown | 33 | 1.9" | 2 AWG | 2 AWG | High Conductivity | $7.13 | |

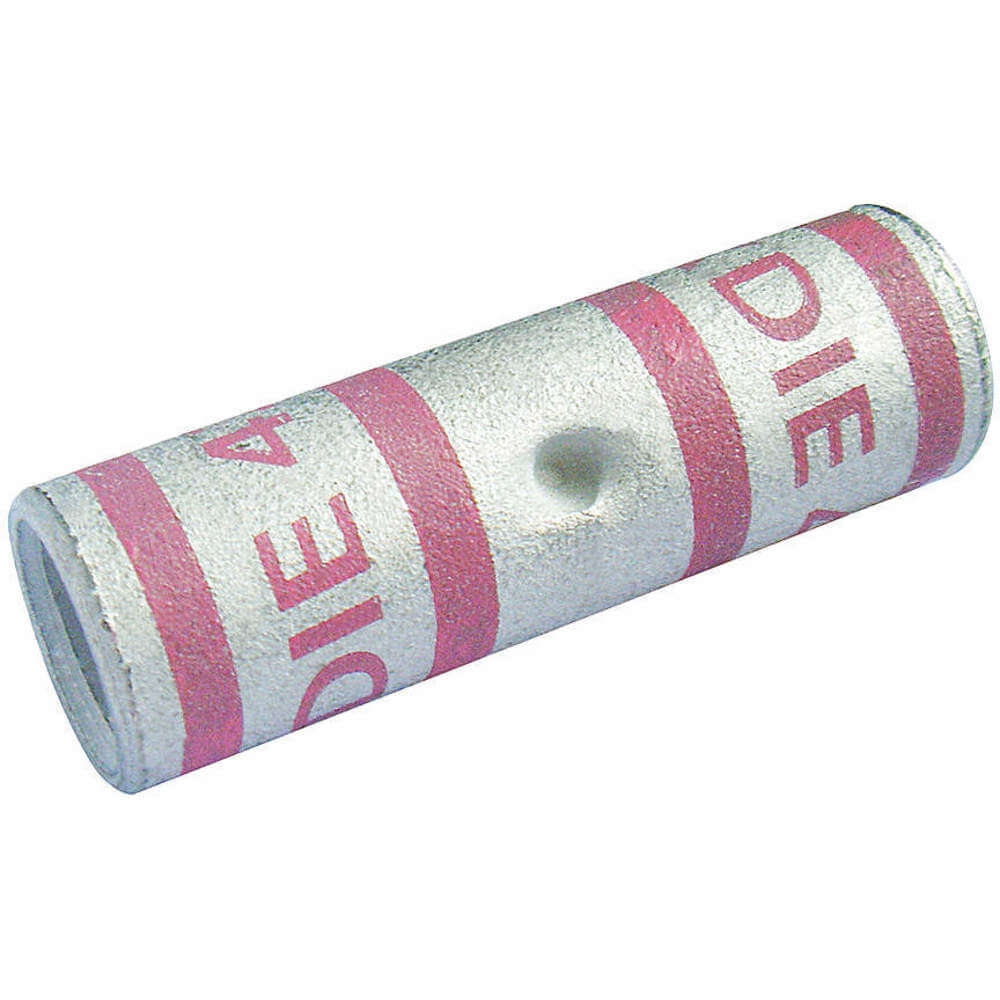

| E | 22EZ35 | Pink | 42 | 2.02" | - | - | High Conductivity | $11.20 | |
| F | 22EZ36 | Black | 45 | 2.15" | - | - | High Conductivity | $13.01 | |

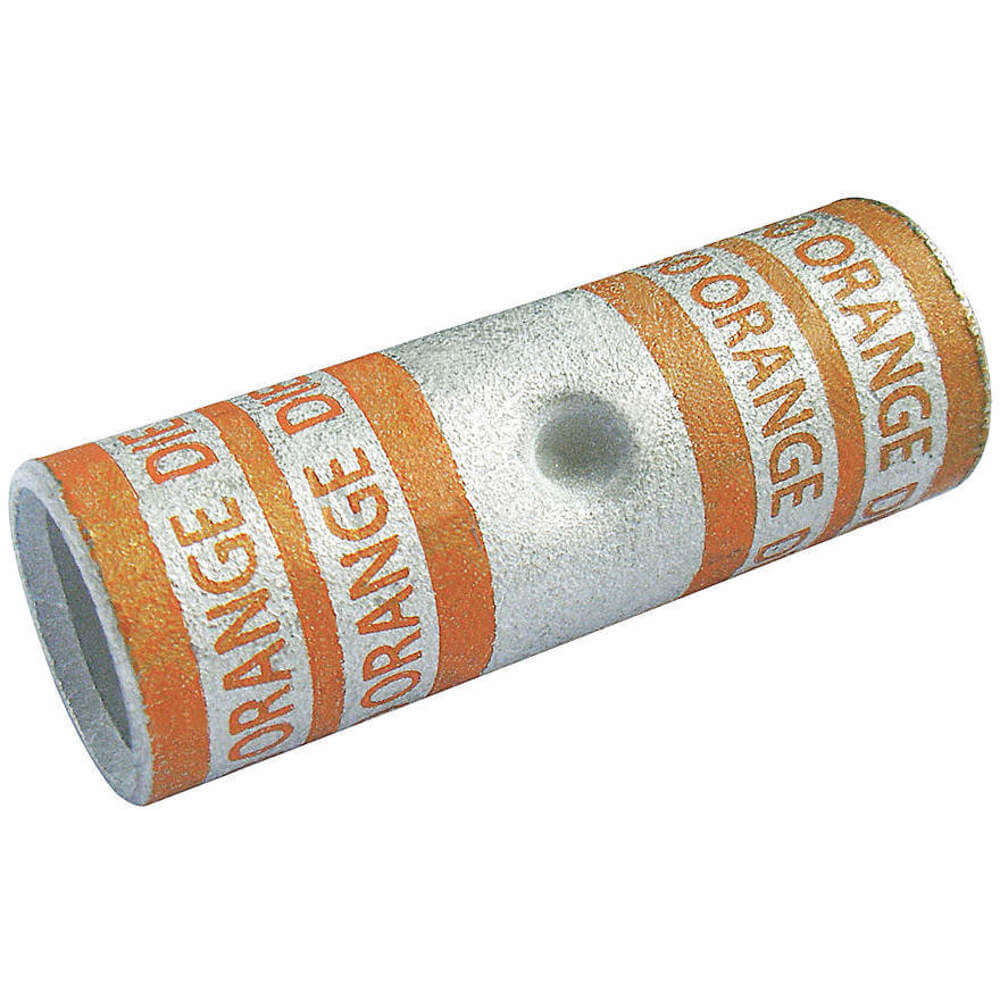

| G | 22EZ37 | Orange | 50 | 2.27" | - | - | High Conductivity | $13.51 |
