| Item | Variable Speed Milling Machine |
|---|---|
| Collet Capacity | 1/8" to 7/8" |
| Collet Capacity - Maximum | 7/8" |
| Collet Capacity - Minimum | 1/8" |
| Cross Travel - Maximum | 12 1/2" |
| Digital Readout Included | Acu-Rite 203 |
| Distance Spindle To Column (max.) | 19 |
| Drawbar Style | Manual |
| Head Swivel - Left | 90° |
| Head Tilt - Backward | 45° |
| Head Tilt - Forward | 45° |
| Horsepower | 2 hp |
| Included Powerfeeds | X-Axis Powerfeed, Y-Axis Powerfeed |
| Includes Digital Readout | Digital Readout Included |
| Knee Travel - Maximum | 14 1/2" |
| Longitudinal Travel - Maximum | 23 7/8" |
| Max. Distance Spindle To Column | 19" |
| Max. Distance Spindle To Table | 17 1/2" |
| Milling Head Drive | Belt Drive |
| Motor Hp | 2 hp |
| Motor Voltage | 230V |
| No. Of Axis | 2 |
| No. Of Motor Phase | 3 |
| No. Of Spindle Speeds | 16 |
| Number Of Spindle Speeds | 16 |
| Number Of T-slots | 3 |
| Overall Depth | 57" |
| Overall Dimensions | 57" x 64" x 82" |
| Overall Height | 82" |
| Overall Width | 64" |
| Phase | 3 |
|---|---|
| Powerfeed | X And Y Axis |
| Quill Dia. | 3 3/8" |
| Quill Diameter | 3 3/8" |
| Quill Down Feed Rates | 0.0015, 0.003, 0.006 |
| Ram Travel - Maximum | 13 3/8" |
| Range Of Spindle Speeds | 80-5440 RPM |
| Right-hand Head Tilt | 90° |
| Series | JTM-1 Series |
| Spindle Speed - Maximum | 5440 RPM |
| Spindle Speed - Minimum | 80 RPM |
| Spindle Taper | R8 |
| Spindle Travel | 5" |
| Spindle Travel - Maximum | 5" |
| Spindle-to-column Distance - Maximum | 19" |
| Spindle-to-column Distance - Minimum | 4 1/2" |
| Spindle-to-table Distance | 17 1/2" |
| Style | Step Pulley R8 |
| T-slot Centers | 2 1/2" |
| Table Cross Travel | 12 1/2" |
| Table Depth | 9" |
| Table Length | 9" |
| Table Load Capacity | 550 lbs. |
| Table Longitudinal Travel | 23 7/8" |
| Table Longitudinal Travel With Powerfeed | 20 2/7" |
| Table Width | 42" |
| Travel Of Knee | 14 1/2" |
| Travel Of Ram | 13 3/8" |
| Voltage | 230V |
| Work Table Weight Capacity | 550 lbs. |
| Height (cm) | 208.28 |
|---|---|
| Length (cm) | 144.78 |
| Width (cm) | 162.56 |
| Country Of Origin | TW |
|---|---|
| Weight (kg) | 990 |
| Style | Model | Voltage | Spindle Speed | Phase | Motor Hp | Overall Width | Overall Depth | Overall Dimensions | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

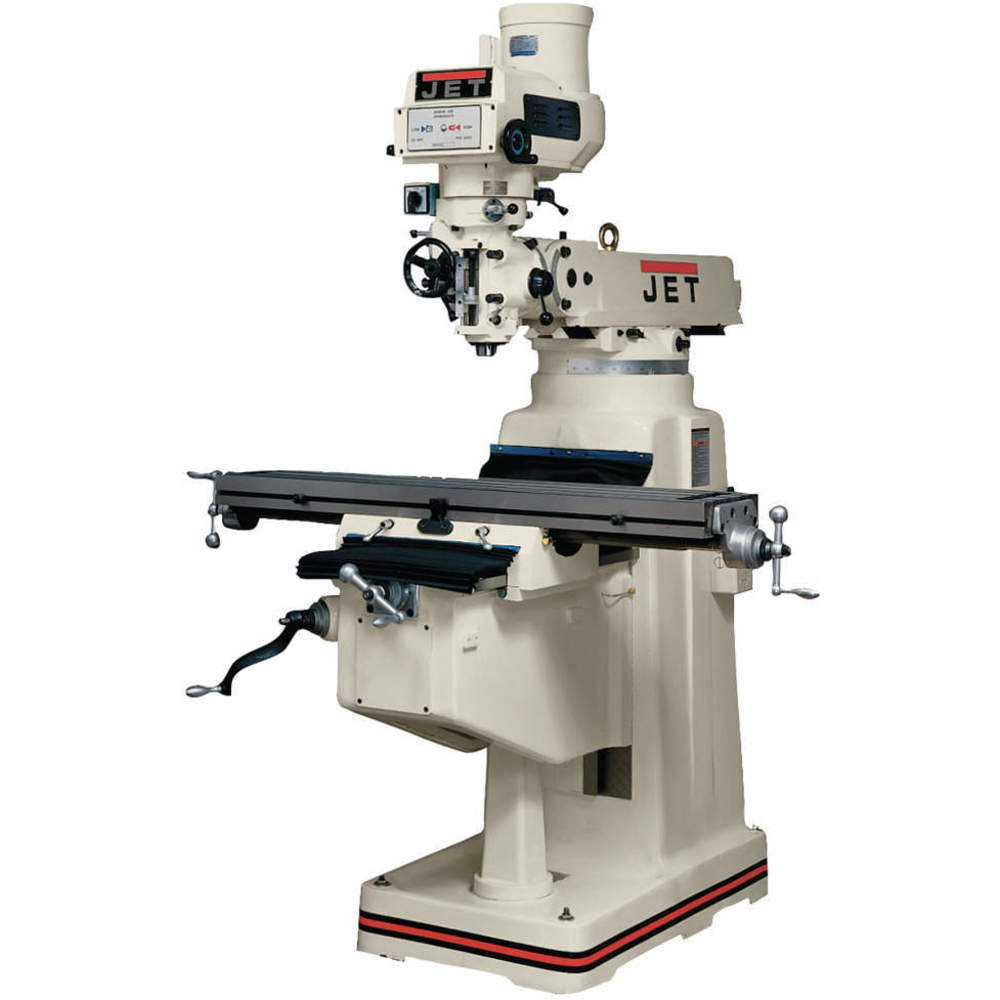

| A | JT9-690117 | 230/460V | 70-3800 RPM | 3 | 3 hp | 78" | 96" | 96" x 78" x 88" | Variable Speed R8 | $25,052.24 | |
| B | JT9-690120 | 230/460V | 70-3800 RPM | 3 | 3 hp | 78" | 96" | 96" x 78" x 88" | Variable Speed R8 | $25,535.84 | |

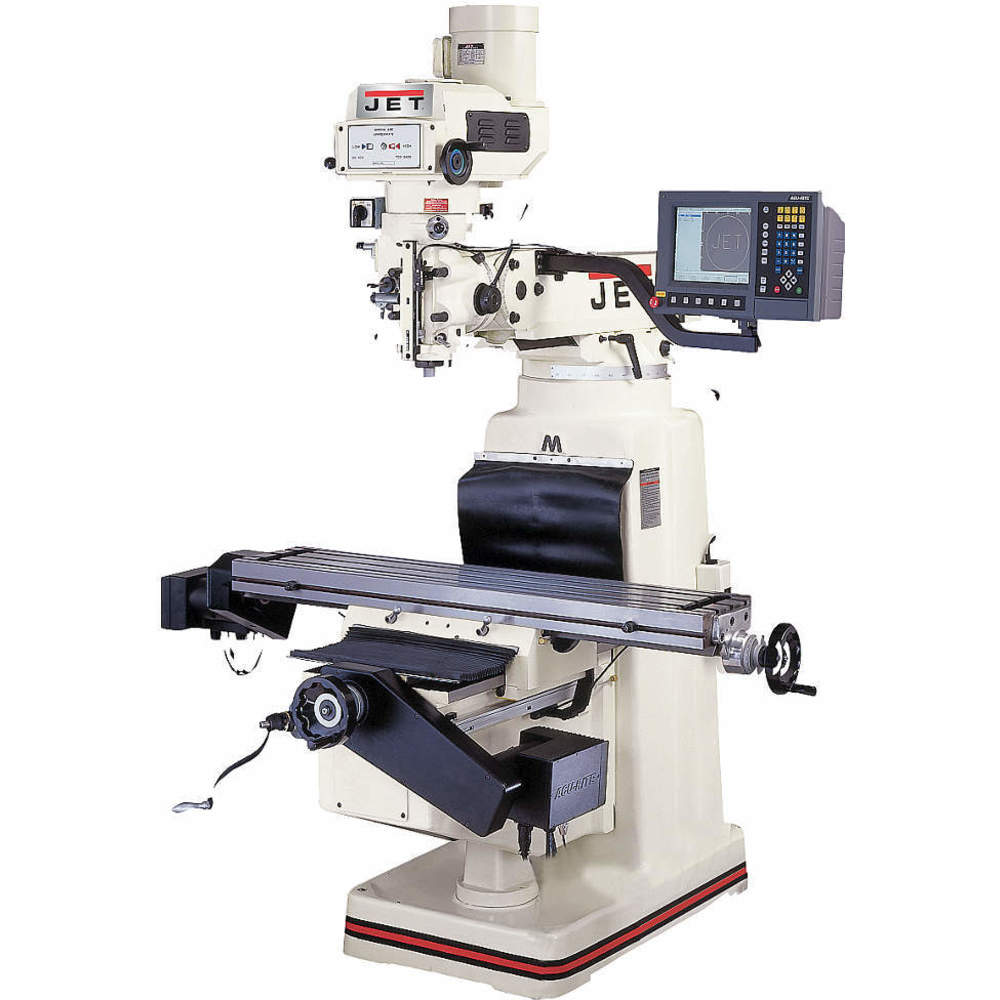

| C | JT9-690940 | 230/460V | 70-3800 RPM | 3 | 3 hp | - | 96" | 96" x 69" x 87" | CNC | $78,457.48 | |

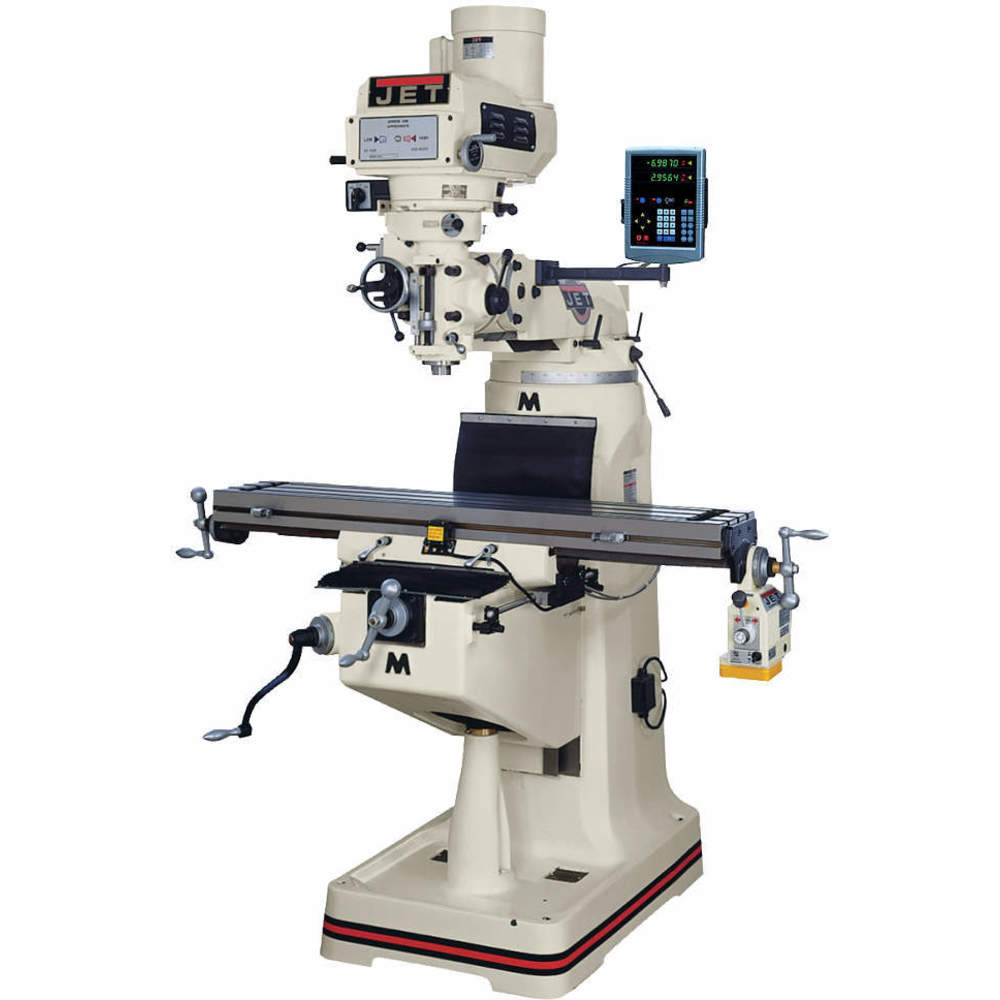

| D | JT9-690087 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $24,240.95 | |

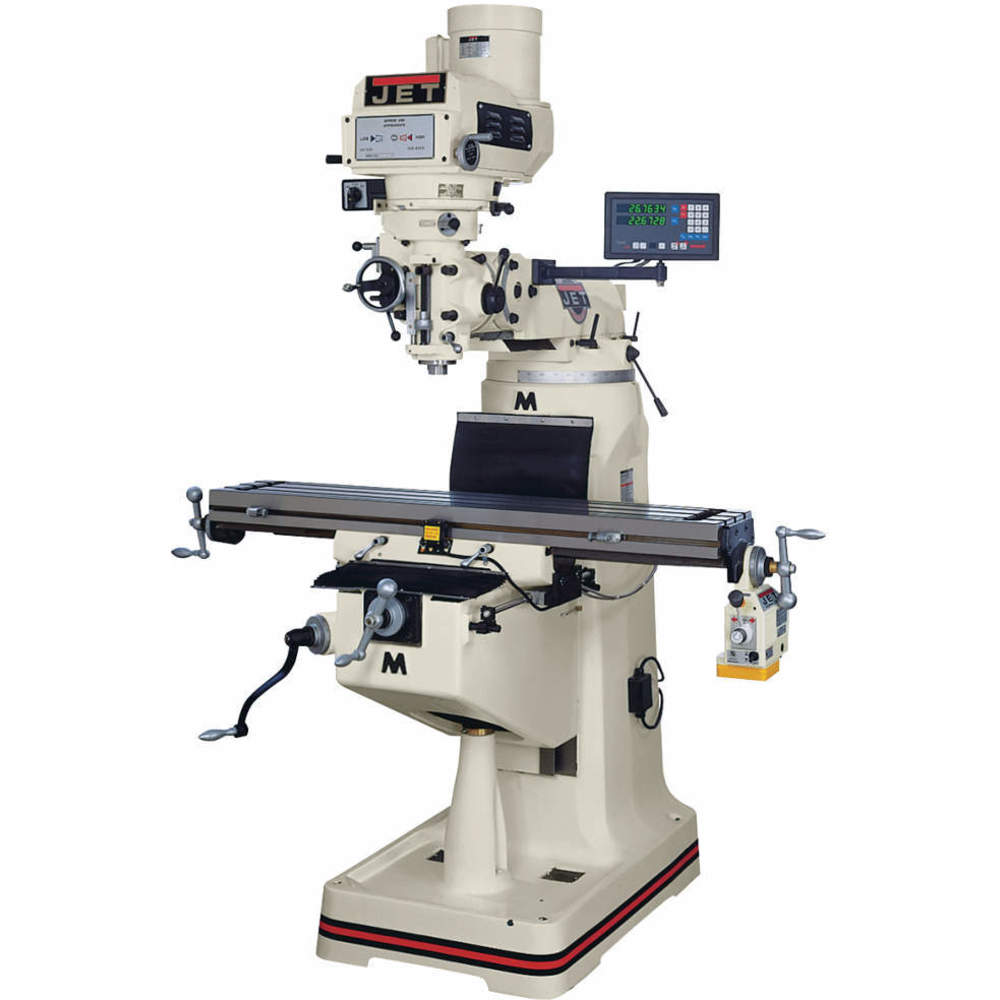

| E | JT9-690098 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $26,801.62 | |
| E | JT9-690099 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $28,790.71 | |

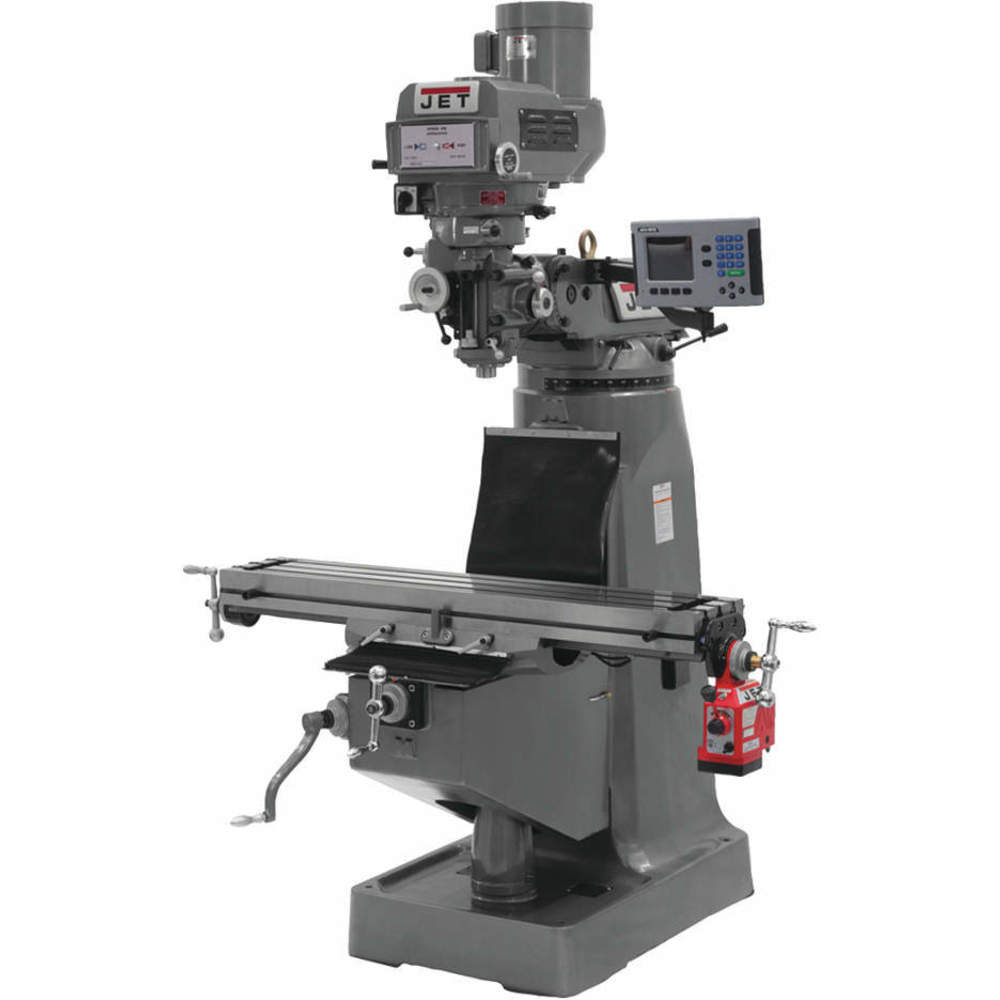

| F | JT9-690107 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $25,142.85 |
