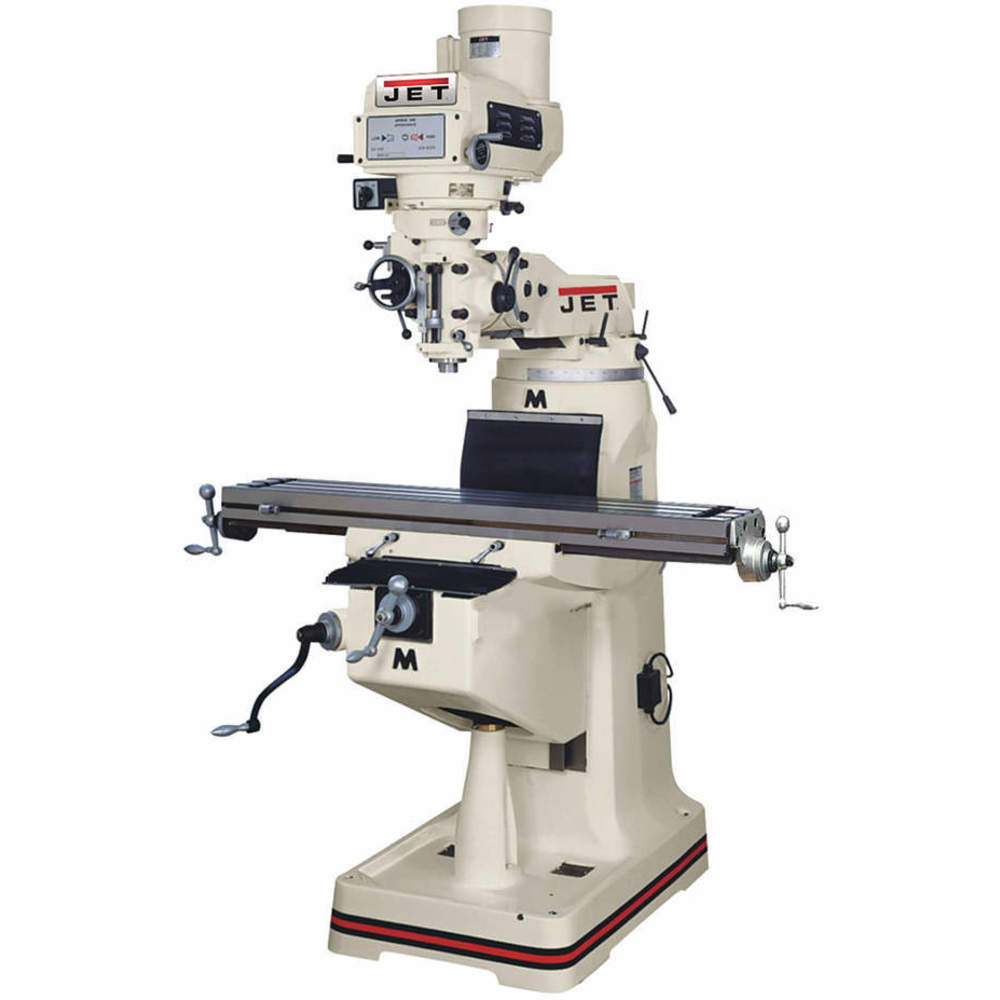

| Item | Variable Speed Milling Machine |
|---|---|
| Collet Capacity | 1/8" to 7/8" |
| Collet Capacity - Maximum | 7/8" |
| Collet Capacity - Minimum | 1/8" |
| Cross Travel - Maximum | 15 1/4" |
| Current | 4.1/8.2A |
| Digital Readout Included | Acu-Rite G-2 |
| Distance Spindle To Column (max.) | 26 |
| Drawbar Style | Manual |
| Frequency | 60 Hz |
| Head | Variable Speed |
| Head Swivel - Left | 90° |
| Head Swivel - Right | 90° |
| Head Tilt - Backward | 45° |
| Head Tilt - Forward | 45° |
| Horsepower | 3 hp |
| Included Cnc Package | 3-Axis |
| Includes | 17 Mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 To 10 Mm), Lifting Ring, Plastic Oil Bottle, Pleated Way Cover, Table Adjustment Handles, Tool Box |
| Knee Travel - Maximum | 14 1/4" |
| Longitudinal Travel - Maximum | 35" |
| Max. Distance Spindle To Column | 26" |
| Max. Distance Spindle To Table | 19" |
| Milling Head Drive | Belt Drive |
| Motor Hp | 3 hp |
| Motor Phase | 3 |
| Motor Speed - Maximum | 1720 RPM |
| Motor Type | Totally Enclosed Fan Cooled |
| Motor Voltage | 230/460V |
| No. Of Axis | 3 |
| Number Of Spindle Speeds | Variable |
| Number Of T-slots | 3 |
| Overall Depth | 96" |
| Overall Dimensions | 96" x 69" x 87" |
| Overall Height | 87" |
| Phase | 3 |
| Quill Dia. | 3 3/8" |
|---|---|
| Quill Down Feed Rates | 0.0015, 0.003, 0.006 |
| Ram Travel - Maximum | 20 1/2" |
| Range Of Spindle Speeds | 70-3800 RPM |
| Right-hand Head Tilt | 90° |
| Series | JTM-1050 Series |
| Sound Level | 75 dBA |
| Spindle Speed | 70-3800 RPM |
| Spindle Speed - Maximum | 3800 RPM |
| Spindle Speed - Minimum | 70 RPM |
| Spindle Taper | R8 |
| Spindle To Table | 19" |
| Spindle Travel | 5" |
| Spindle Travel - Maximum | 5" |
| Spindle-to-column Distance - Maximum | 26" |
| Spindle-to-column Distance - Minimum | 5 1/2" |
| Spindle-to-table Distance | 19" |
| Style | CNC |
| T-slot Centers | 2 1/2" |
| T-slot Width | 5/8" |
| Table Cross Travel | 15 1/4" |
| Table Depth | 10" |
| Table Length | 10" |
| Table Load Capacity | 720 lbs. |
| Table Longitudinal Travel | 35" |
| Table Size | 10" x 50" |
| Table Surface Height | Variable |
| Table Width | 50" |
| Table Work Surface | 10" x 50" |
| Travel Of Knee | 14 1/4" |
| Travel Of Ram | 20 1/2" |
| Type | CNC |
| Voltage | 230/460V |
| Work Table Weight Capacity | 720 lbs. |
| Height (cm) | 220.98 |
|---|---|
| Length (cm) | 243.84 |
| Width (cm) | 175.26 |
| HS Code | 8465950055 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 1575 |
| Style | Model | Voltage | Spindle Speed | Phase | Motor Hp | Overall Width | Overall Depth | Overall Dimensions | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | JT9-690117 | 230/460V | 70-3800 RPM | 3 | 3 hp | 78" | 96" | 96" x 78" x 88" | Variable Speed R8 | $25,052.24 | |
| B | JT9-690120 | 230/460V | 70-3800 RPM | 3 | 3 hp | 78" | 96" | 96" x 78" x 88" | Variable Speed R8 | $25,535.84 | |
| C | JT9-690087 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $24,240.95 | |
| D | JT9-690098 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $26,801.62 | |
| D | JT9-690099 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $28,790.71 | |
| E | JT9-690107 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $25,142.85 | |
| F | JT9-690183 | 230/460V | 60-4200 RPM | 3 | 3 hp | 63" | 66" | 66" x 63" x 85" | Variable Speed R8 | $21,078.92 |
