| Item | Centrifugal Inline Duct Fan |
|---|---|
| Airflow @ 0.000 In Sp | 940 CFM |
| Application | General Purpose |
| Bearing Type | Ball Bearing |
| Cfm @ 0.125-in. Sp | 903 CFM |
| Cfm @ 0.200-in. Sp | 880 CFM |
| Cfm @ 0.250-in. Sp | 865 CFM |
| Cfm @ 0.375-in. Sp | 834 CFM |
| Cfm @ 0.400-in. Sp | 819 CFM |
| Cfm @ 0.500-in. Sp | 783 CFM |
| Cfm @ 0.600-in. Sp | 746 CFM |
| Cfm @ 0.750-in. Sp | 689 CFM |
| Cfm @ 0.800-in. Sp | 670 CFM |
| Cfm @ 1.000-in. Sp | 596 CFM |
| Cfm @ 1.200-in. Sp | 505 CFM |
| Cfm @ 1.500-in. Sp | 425 CFM |
| Cfm @ Duct | 940 CFM |
| Duct Dia. | 12" |
| Fits Duct Dia. | 12" |
| For Fan Type | Centrifugal Duct Fan |
| Green Certification Or Other Recognition | Energy Star |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| High-efficiency Motor | No |
| Housing Dia. | 16" |
|---|---|
| Housing Finish | Baked Enamel |
| Housing Material | Galvanized Steel |
| Hp | 3/8 hp |
| Includes | Mounting Bracket |
| Inlet And Outlet Dia. | 11 7/8" |
| Length | 8 15/16" |
| Max. Amps | 3A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 326 W |
| Motor Enclosure Design | Totally Enclosed |
| Motor Ip Rating | IP44 |
| Motor Output Power | 300 W |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 120V AC |
| Number Of Speeds | 1 |
| Overall Dia. | 16" |
| Overall Height | 18" |
| Overall Width | 8 1/8" |
| Phase | 1 |
| Speed Control | Yes |
| Speed Control Included | No |
| Height (cm) | 30.5 |
|---|---|
| Length (cm) | 53.3 |
| Width (cm) | 50.8 |
| HS Code | 8414596560 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 7.5757 |
| Style | Model | Airflow @ 0.000 In Sp | High-efficiency Motor | Duct Dia. | Motor Output Power | Motor Speed | Height | Housing Dia. | Bearing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

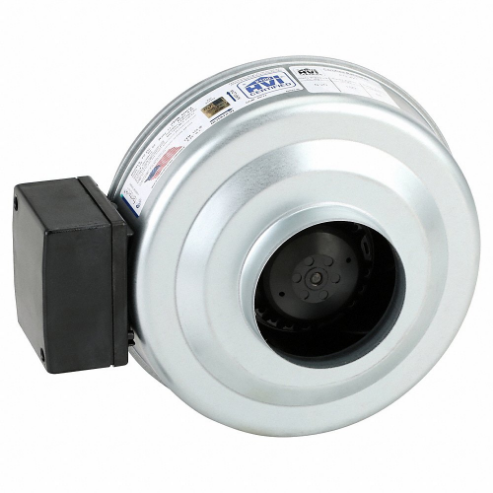

| A | FG 4XL | 174 CFM | No | - | - | - | 8 1/2" | 8 3/4" | Ball | $311.59 | |
| B | FG 6M | 389 CFM | No | 6" | 120 W | 2350 RPM | - | 13 1/8" | Ball | $348.02 | |

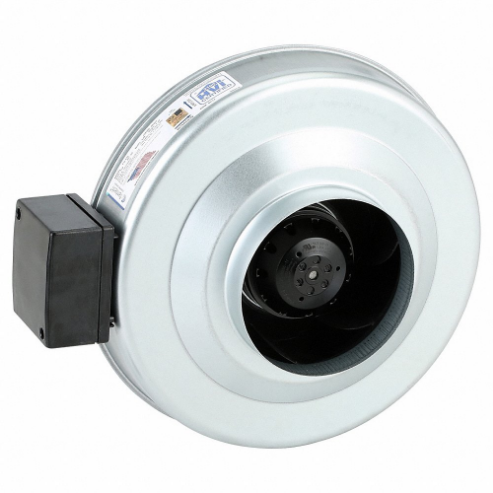

| C | FG 6XL | 483 CFM | No | 6" | 150 W | - | 8 5/8" | 13 1/8" | Ball | $388.26 | |

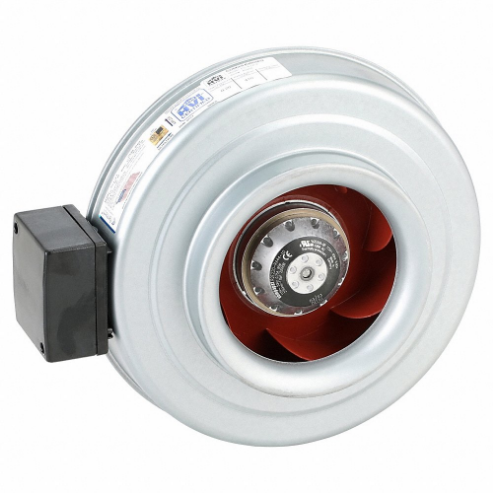

| D | FG 8 | 461 CFM | No | - | - | 2550 RPM | 8 1/4" | 13 3/8" | Ball | $383.25 | |

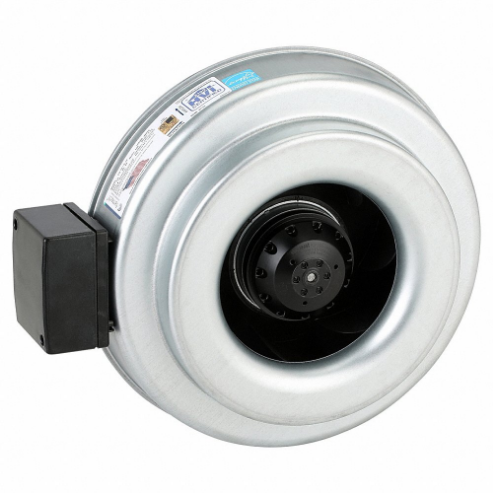

| E | FG 10 | 513 CFM | No | - | - | - | 6.812" | 13 3/8" | Ball | $452.99 | |

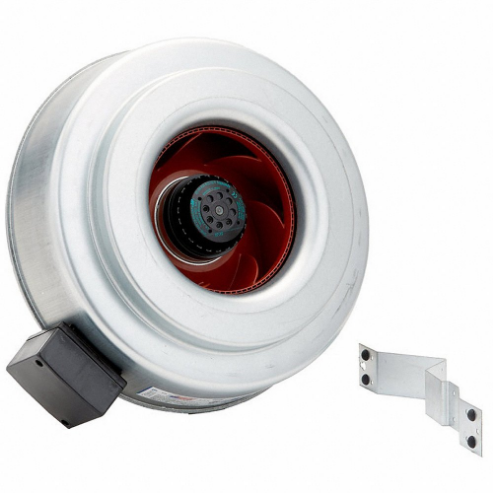

| F | FG 12 | - | - | - | - | 2600 RPM | 10 1/2" | 16" | Ball | $613.09 | |
| G | FG 6M EC | 363 CFM | Yes | 6" | 74 W | 2480 RPM | - | 13 1/8" | Ball | $567.92 |
