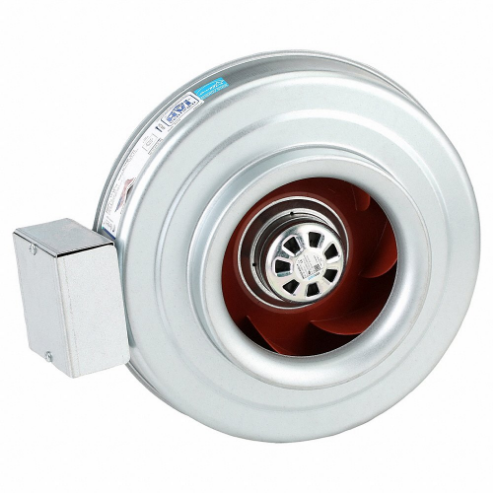

| Item | Centrifugal Inline Duct Fan |
|---|---|
| Bearing Type | Ball |
| Cfm @ 0.000-in. Sp | 741 CFM |
| Cfm @ 0.100-in. Sp | 711 CFM |
| Cfm @ 0.125-in. Sp | 703 CFM |
| Cfm @ 0.200-in. Sp | 680 CFM |
| Cfm @ 0.250-in. Sp | 660 CFM |
| Cfm @ 0.375-in. Sp | 606 CFM |
| Cfm @ 0.400-in. Sp | 601 CFM |
| Cfm @ 0.450-in. Sp | 573 CFM |
| Cfm @ 0.500-in. Sp | 558 CFM |
| Cfm @ 0.600-in. Sp | 515 CFM |
| Cfm @ 0.750-in. Sp | 380 CFM |
| Cfm @ 0.800-in. Sp | 434 CFM |
| Cfm @ 1.000-in. Sp | 363 CFM |
| Cfm @ 1.200-in. Sp | 290 CFM |
| Cfm @ 1.500-in. Sp | 236 CFM |
| Cfm @ Duct | 741 CFM |
|---|---|
| Fits Duct Dia. | 12" |
| Green Certification Or Other Recognition | Energy-Star.Png |
| Height | 10 1/2" |
| Housing Dia. | 16" |
| Housing Material | Galvanized Steel |
| Inlet And Outlet Dia. | 12" |
| Length | 16" |
| Max. Amps | 1.87A |
| Max. Inlet Temp. | 140°F |
| Max. Wattage | 181 W |
| Motor Enclosure Design | External Rotor |
| Motor Speed | 2600 RPM |
| Mounting Position | Horizontal/Vertical |
| Number Of Speeds | 1 |
| Phase | 1 |
| Height (cm) | 30.5 |
|---|---|
| Length (cm) | 53.3 |
| Width (cm) | 53.3 |
| HS Code | 8414596560 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 6.9235 |
| Style | Model | Airflow @ 0.000 In Sp | High-efficiency Motor | Duct Dia. | Motor Output Power | Motor Speed | Height | Housing Dia. | Bearing Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FG 4XL | 174 CFM | No | - | - | - | 8 1/2" | 8 3/4" | Ball | $311.59 | |
| B | FG 6M | 389 CFM | No | 6" | 120 W | 2350 RPM | - | 13 1/8" | Ball | $348.02 | |
| C | FG 6XL | 483 CFM | No | 6" | 150 W | - | 8 5/8" | 13 1/8" | Ball | $388.26 | |
| D | FG 8 | 461 CFM | No | - | - | 2550 RPM | 8 1/4" | 13 3/8" | Ball | $383.25 | |
| E | FG 10 | 513 CFM | No | - | - | - | 6.812" | 13 3/8" | Ball | $452.99 | |
| F | FG 6M EC | 363 CFM | Yes | 6" | 74 W | 2480 RPM | - | 13 1/8" | Ball | $567.92 | |
| G | FG 8 EC | 428 CFM | Yes | 8" | 71 W | 2545 RPM | - | 13 3/8" | Ball | $608.66 |
