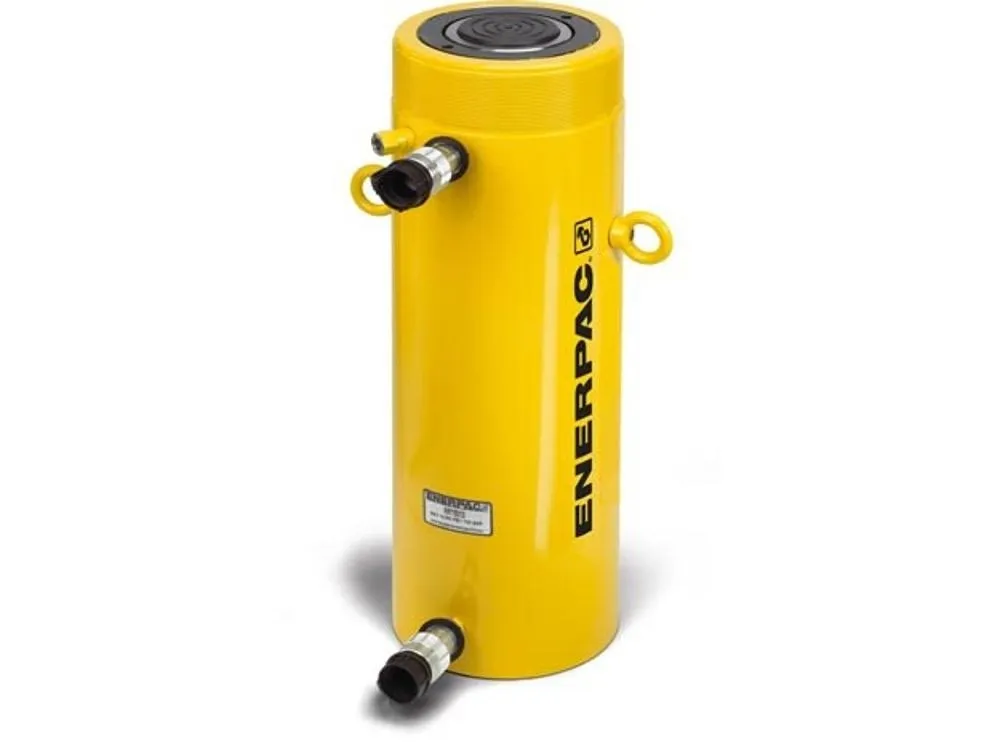

| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 6.25" |
| Base To Advance Port | 22/25" |
| Body Material | Steel |
| Bolt Circle Dia. | 6 1/4" |
| Center Hole Diameter | 6 1/4" |
| Collar Thread Size | 8"-12 |
| Cylinder Type | General Purpose |
| Effective Push Area | 30.71 sq. in. |
| Finish | Paint |
| Handle | No |
| Includes | Dust Cap, Female Coupler |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
|---|---|
| Max. Push Capacity | 150 ton. |
| Nominal Capacity | 150 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity Push | 69.11 cu. in. |
| Outside Dia. | 8" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 7.19" |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 2 1/4" |
| Thread Size | 3/4"-16 |
| Weighing Capacity | 150 ton. |
| Height (cm) | 40.64 |
|---|---|
| Length (cm) | 165.1 |
| Width (cm) | 40.64 |
| HS Code | 8425420000 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 54.855 |
