| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 1.56" |
| Base Mounting Holes Bolt Circle | 1 14/25" |
| Base Mounting Holes Thread Depth | 1/2" |
| Base To Advance Port | 3/4" |
| Body Material | Steel |
| Bolt Circle Dia. | 1 14/25" |
| Center Hole Diameter | 1 1/2" |
| Collapsed Height | 3.53" |
| Collar Thread Length | 1.06" |
| Collar Thread Size | 2 1/4"-14 |
| Cylinder Bore | 1.69" |
| Cylinder Type | General Purpose |
| Effective Push Area | 2.24 sq. in. |
| Extended Height | 4.56" |
| Finish | Paint |
| Handle | No |
| Includes | Coupler, Dust Cap |
| Material | Steel |
|---|---|
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 10 ton. |
| Nominal Capacity | 10 ton. |
| Nominal Stroke Length | 1" |
| Oil Capacity | 2.24 cu. in. |
| Oil Capacity Push | 2.24 cu. in. |
| Outside Dia. | 2 1/4" |
| Plunger Dia. | 1 1/2" |
| Plunger Thread Length | 1/4" |
| Plunger Thread Size | 1"-8 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 3.53" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1" |
| Thread Size | 5/16"-18 |
| Weighing Capacity | 10 ton. |

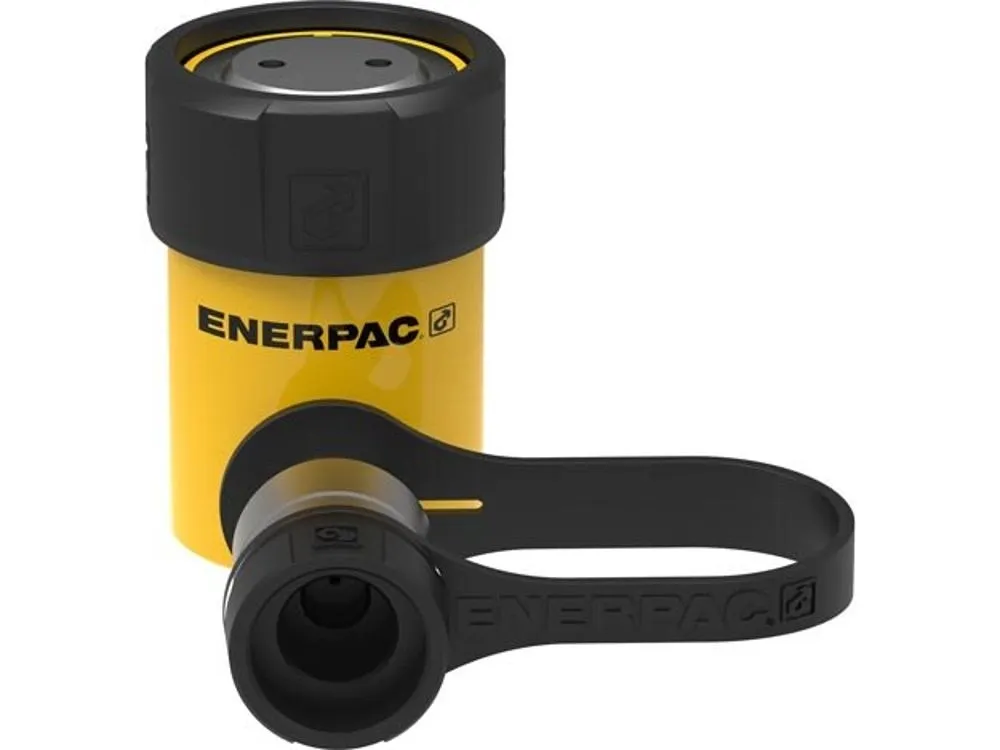

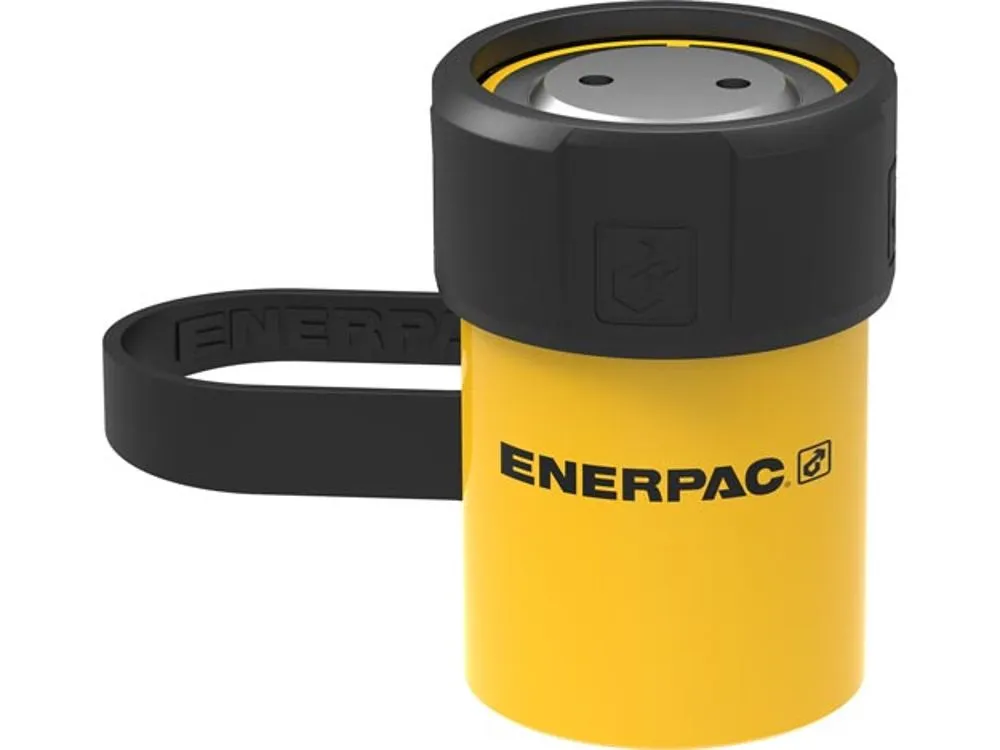

Enerpac RC101 general-purpose hydraulic cylinder is ideal for lifting, pushing, pulling, bending and holding heavy machinery and equipment during maintenance or repair operations in industrial settings.
| Height (cm) | 11.68 |
|---|---|
| Length (cm) | 9.4 |
| Width (cm) | 5.72 |
| HS Code | 8412210075 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 1.8225 |
Hydraulic cylinders must be stored at a constant temperature and under dry conditions. They should not be impacted by aggressive agents, such as steam or any kind of corrosives. During storage, cylinder oil ports should be sealed with suitable plastic or metal plugs.
Double acting cylinders have a port at each end which is supplied with hydraulic fluid or oil for both the retraction and extension functions of the piston. Whereas, in the single acting cylinders, hydraulic fluid enters through a port at one end of the cylinder that extends the rod without the need of oil.
Yes, it features baked enamel finish that provides enhanced corrosion resistance.

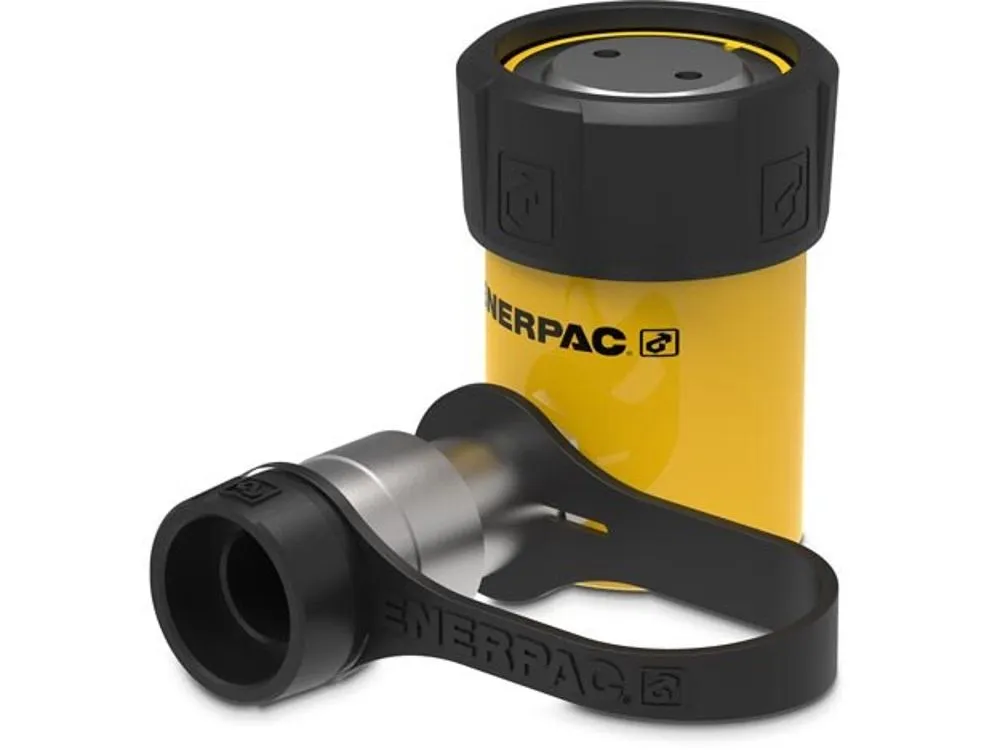

This cylinder comes included with a CR400 coupler, dust cap and collar thread protector.
Hydraulic fluid is a crucial component used in hydraulic machinery and equipment to transmit power. It functions as a non-compressible oil or liquid medium that facilitates the transfer of force from one point to another within the hydraulic system. While various substances can serve as hydraulic fluids, the most common types are mineral-based, petroleum-based, water-based, or synthetic materials. These hydraulic fluids play a vital role in ensuring the efficient and smooth operation of hydraulic systems across different industries and applications.
| Style | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC10010 | 10 1/4" | - | 7" | Yes | 211.45 cu. in. | 5.13" | 100 ton. | 1 3/4" | $11,501.15 | |
| B | RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | $3,662.72 | |
| C | RC7513 | 13 1/8" | 19.38" | 5 3/4" | Yes | 208.74 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $10,355.62 | |
| D | RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $7,455.89 | |
| E | RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | $6,923.30 | |
| F | RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | $1,672.71 | |
| G | RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | $1,703.60 |
