| Item | Hydraulic Cylinder |
|---|---|
| Base Mounting Holes Bolt Circle | 5 1/2" |
| Base Mounting Holes Thread Depth | 1" |
| Base To Advance Port | 1.63" |
| Body Material | Steel |
| Collapsed Height | 17.69" |
| Collar Thread Length | 1 3/4" |
| Cylinder Bore | 5.13" |
| Cylinder Type | General Purpose |
| Extended Height | 27.94" |
| Finish | Paint |
| Handle | Yes |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
|---|---|
| Oil Capacity | 211.45 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 2 4/5" |
| Outside Dia. | 7" |
| Plunger Dia. | 4.13" |
| Saddle Diameter | 2 4/5" |
| Saddle Protrusion From Plunger | 0.11" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 10 1/4" |
| Thread Size | 3/4"-10 |
| Weighing Capacity | 100 ton. |

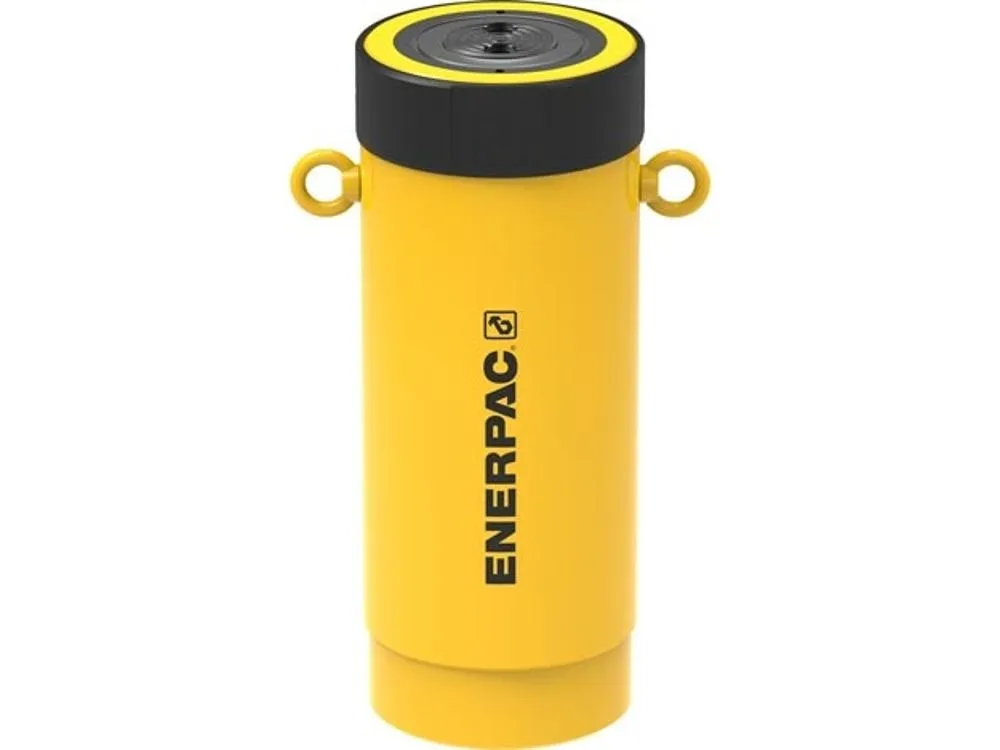

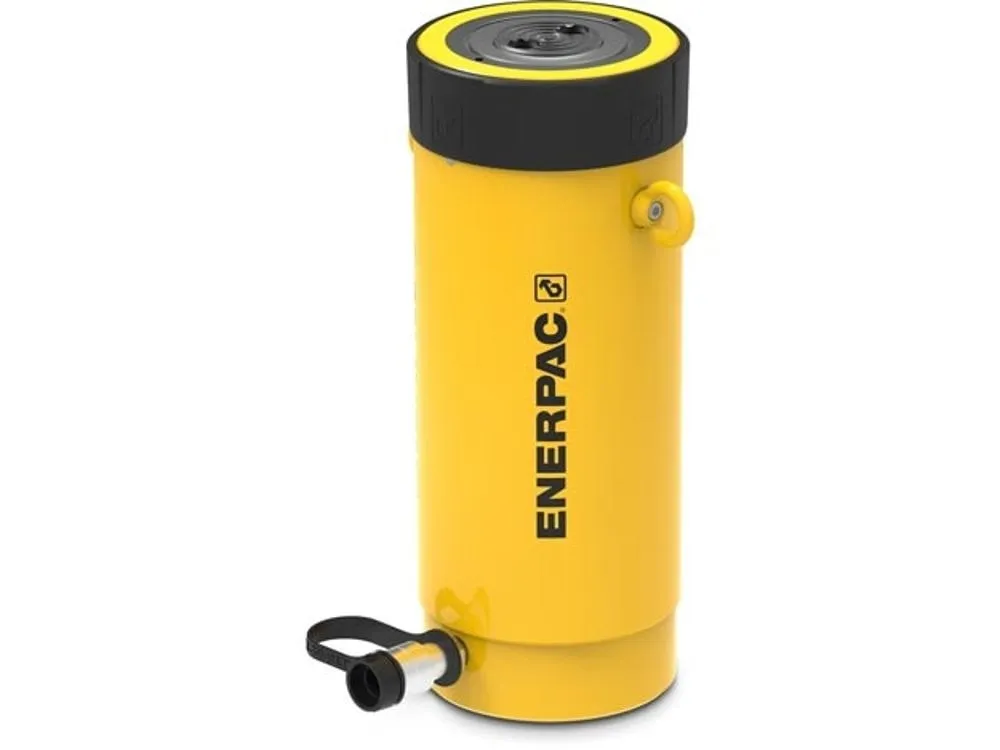

Enerpac RC10010 hydraulic cylinder is utilised for its immense lifting and pushing power. It is used in construction, mining, infrastructure and heavy machinery, where tasks demand substantial force and precise movement. Its robust design enables it to handle heavy loads & withstand challenging environments.
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 22.86 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 78.57 |
| Style | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | $3,662.72 | |
| B | RC7513 | 13 1/8" | 19.38" | 5 3/4" | Yes | 208.74 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $10,355.62 | |
| C | RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $7,455.89 | |
| D | RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | $6,923.30 | |
| E | RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | $1,672.71 | |
| F | RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | $1,703.60 | |
| G | RC151 | 1" | 4.88" | 2 3/4" | No | 3.14 cu. in. | 2" | 15 ton. | 1.19" | $1,192.04 |
