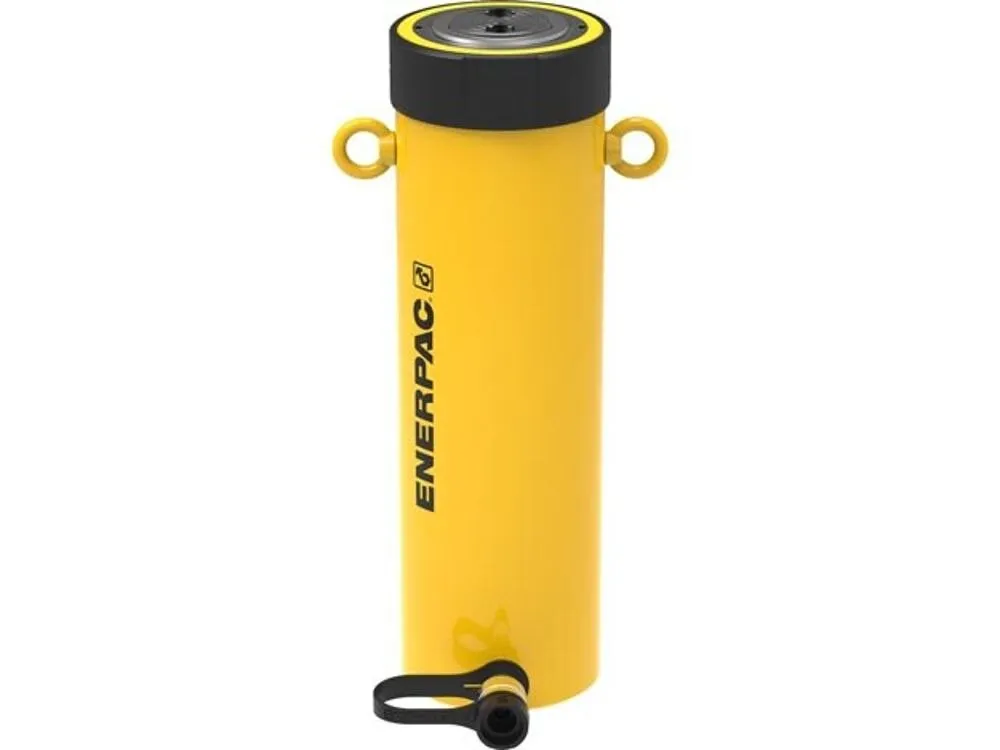

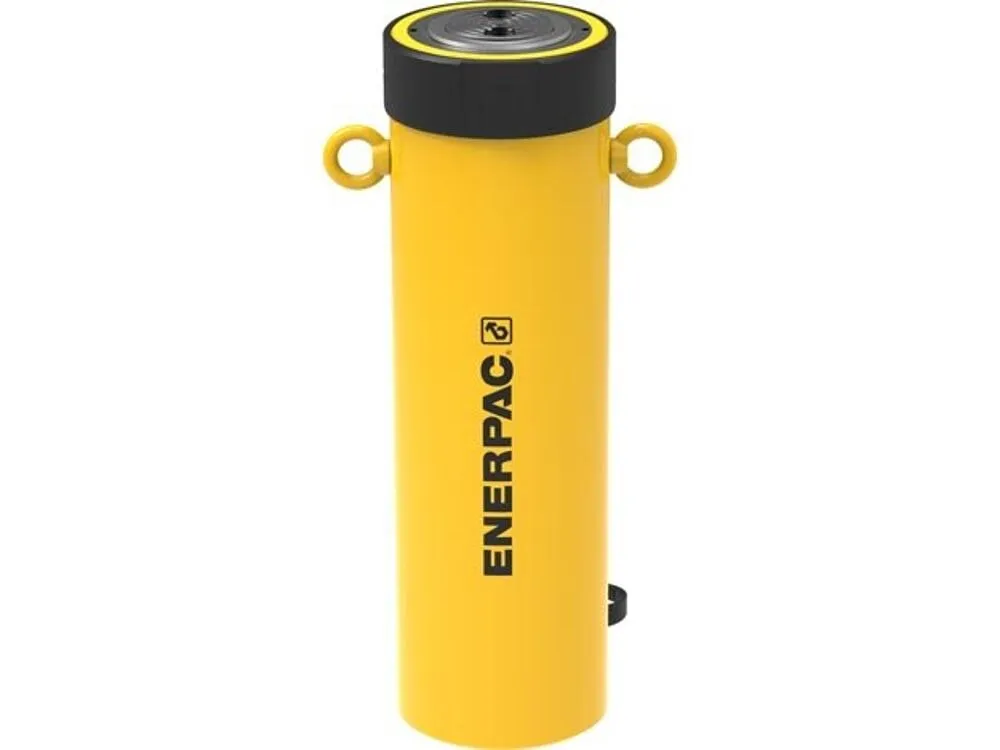

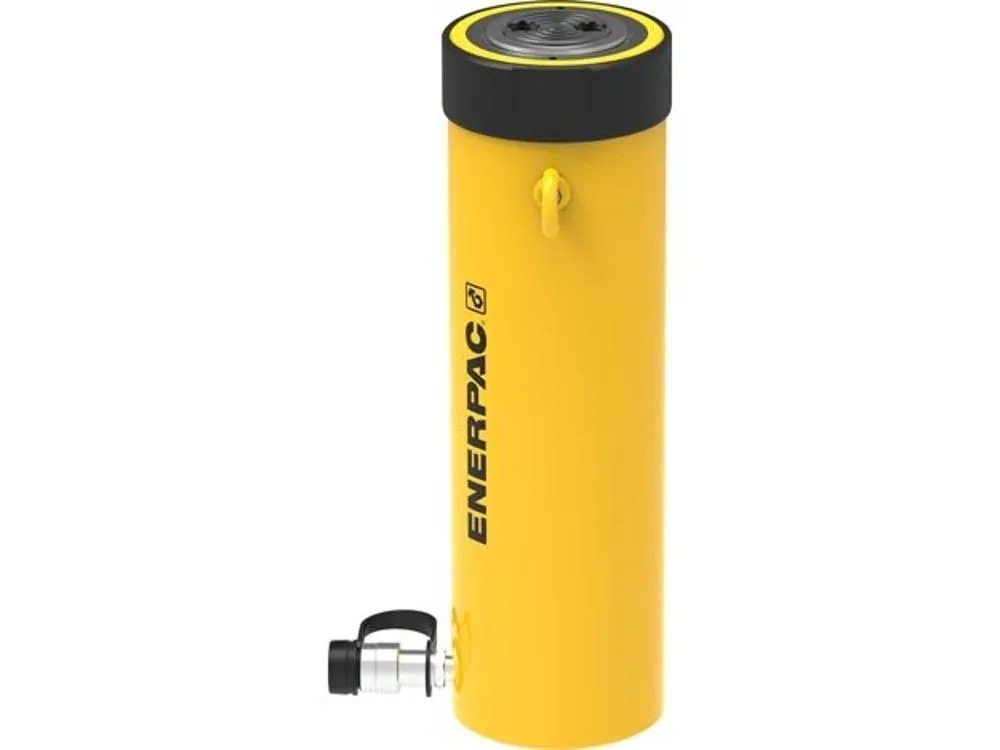

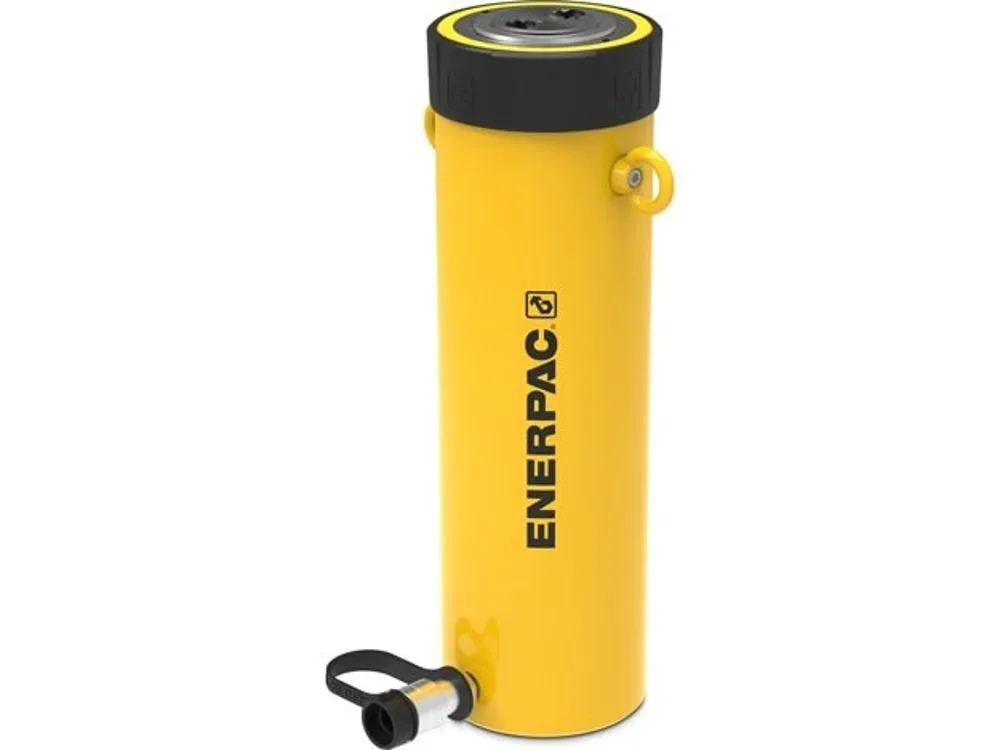

| Item | Hydraulic Cylinder |
|---|---|
| Base Mounting Holes Bolt Circle | 4 1/2" |
| Base Mounting Holes Thread Depth | 0.63" |
| Base To Advance Port | 1.19" |
| Body Material | Steel |
| Center Hole Dia. | 3 3/4" |
| Collapsed Height | 19.38" |
| Collar Thread Length | 1 3/4" |
| Collar Thread Size | 5 3/4"-12 |
| Cylinder Bore | 4 1/2" |
| Cylinder Type | General Purpose |
| Effective Push Area | 15.9 sq. in. |
| Extended Height | 32 1/2" |
| Finish | Paint |
| Handle | Yes |
| Includes | Coupler, Dust Cap |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 75 ton. |
|---|---|
| Nominal Capacity | 75 ton. |
| Nominal Stroke Length | 13" |
| Oil Capacity | 208.74 cu. in. |
| Oil Capacity Push | 208.74 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 2.81" |
| Outside Dia. | 5 3/4" |
| Plunger Dia. | 3 3/4" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 19.38" |
| Saddle Diameter | 2 4/5" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 0.11" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 13 1/8" |
| Weighing Capacity | 75 ton. |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 22.86 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 59.535 |
| Style | Model | Stroke Length | Retracted Height | Outside Dia. | Handle | Oil Capacity | Cylinder Bore | Weighing Capacity | Collar Thread Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | RC10010 | 10 1/4" | - | 7" | Yes | 211.45 cu. in. | 5.13" | 100 ton. | 1 3/4" | $11,501.15 | |
| B | RC1512 | 12" | 16.69" | 2 3/4" | No | 37.7 cu. in. | 2" | 15 ton. | 1.19" | $3,662.72 | |
| C | RC756 | 6 1/8" | 11.25" | 5 3/4" | Yes | 97.41 cu. in. | 4 1/2" | 75 ton. | 1 3/4" | $7,455.89 | |
| D | RC1006 | 6 5/8" | 14.06" | 7" | Yes | 136.67 cu. in. | 5.13" | 100 ton. | 1 3/4" | $6,923.30 | |
| E | RC1012 | 12" | 15.75" | 2 1/4" | No | 26.84 cu. in. | 1.69" | 10 ton. | 1.06" | $1,672.71 | |
| F | RC1014 | 14" | 17.75" | 2 1/4" | No | 31.31 cu. in. | 1.69" | 10 ton. | 1.06" | $1,703.60 | |

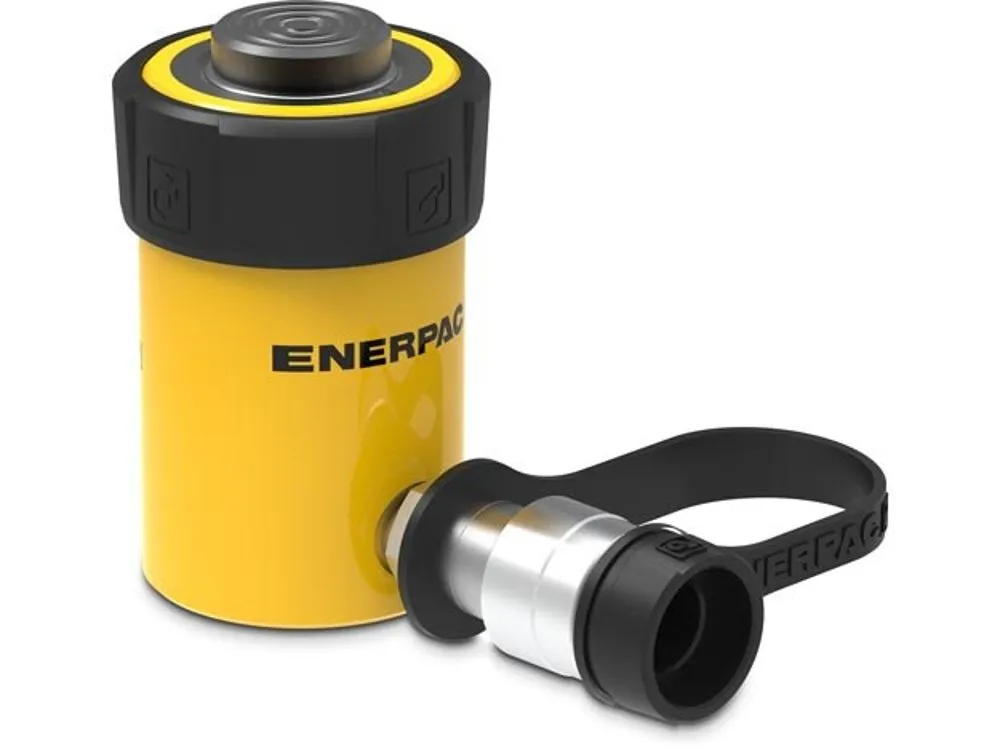

| G | RC151 | 1" | 4.88" | 2 3/4" | No | 3.14 cu. in. | 2" | 15 ton. | 1.19" | $1,192.04 |
