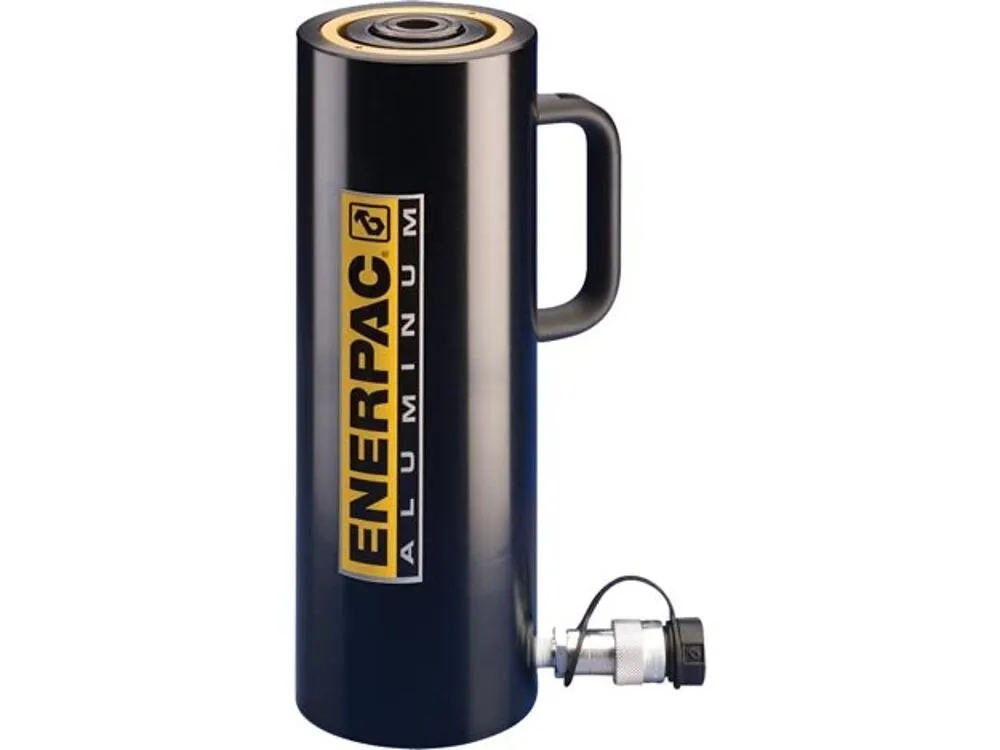

| Item | Hydraulic Cylinder |
|---|---|
| Base Bolt Circle Dia. | 6.3" |
| Body Material | Aluminum |
| Bolt Circle Dia. | 6.3" |
| Center Hole Diameter | 5 5/16" |
| Cylinder Type | Lightweight |
| Effective Push Area | 22.19 sq. in. |
| Finish | Anodized |
| Handle | No |
| Includes | Coupler, Dust Cap |
| Material | Aluminum |
| Max. Operating Pressure | 10000 psi |
| Nominal Capacity | 100 ton. |
| Nominal Stroke Length | 4" |
|---|---|
| Oil Capacity Push | 87.43 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 3/4" |
| Optional Tilt Saddle Dia. | 3.82" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 10.67" |
| Saddle Diameter | 3.7" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 3/25" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 3 7/8" |
| Weighing Capacity | 100 ton. |
| Height (cm) | 20.32 |
|---|---|
| Length (cm) | 45.72 |
| Width (cm) | 20.32 |
| HS Code | 8425420000 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 21.375 |
