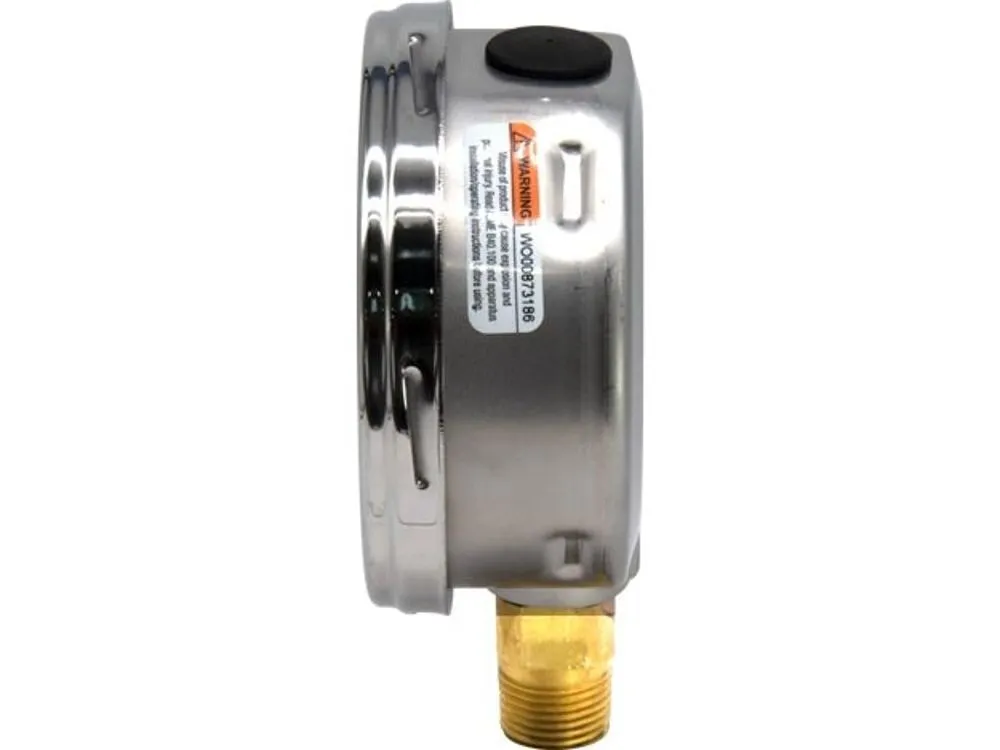

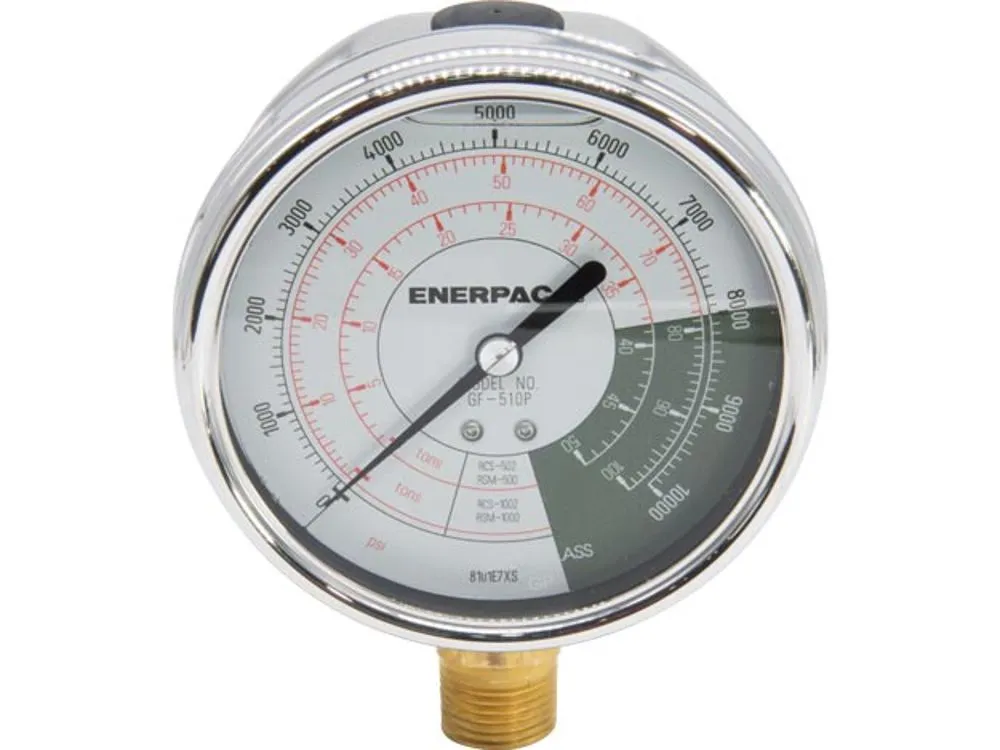

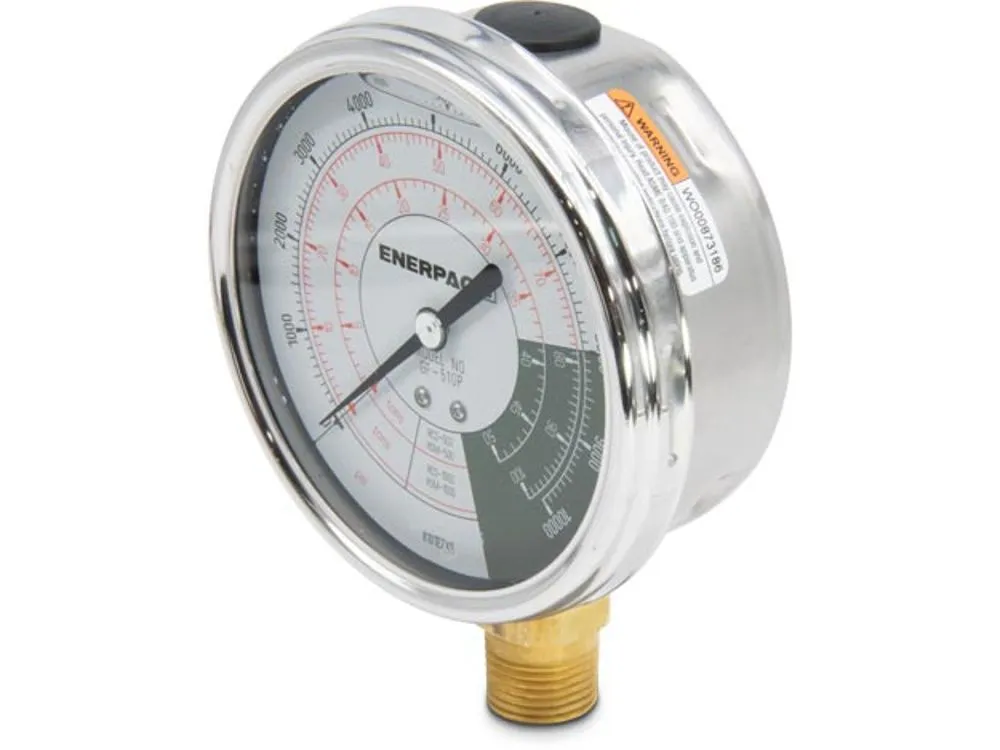

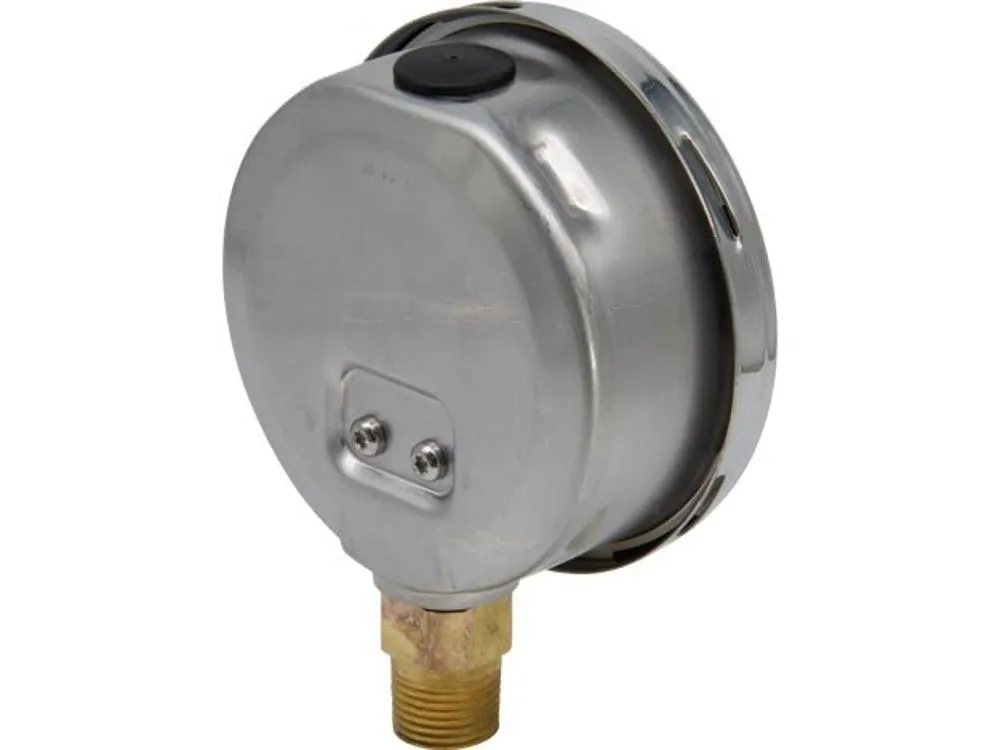

| Item | Pressure Gauge |
|---|---|
| Accuracy | -1% to +1% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Hydraulics |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Corrosion Resistant |
| Case Depth | 2" |
| Case Dia. | 4.3" |
| Case Material | Stainless Steel |
| Color | Silver |
| Compatible Brand And Series | Enerpac V-10, Enerpac V-91 |
| Compatible Cylinder/press | All 50 And 100 ton. RCS, RSM Cylinders |
| Compatible Gauge Adapter | ENERPAC GA-1, ENERPAC GA-2 |
| Compatible Grainger Part No. | 25TV84, 25TV86 |
| Compatible Manufacturer Model Number | V-10, V-91 |
| Connection Location | Lower |
| Dial Color | White |
| Face Diameter | 4" |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Filled With | Glycerin |
| Gauge Lens Material | Glass |
| Gauge Mounting Method | Lower Mount |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Graduations | 100 psi x 1 ton. |
| Hazardous Location Rating | Not Rated |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge For Hydraulic Systems |
| Includes Mounting Hardware | No |
|---|---|
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Max. Operating Pressure | 10000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 4" |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Pressure Range | 0 psi to 10000 psi |
| Pressure Range Type | Pressure |
| Primary Range | 0 psi to 10000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Scale Units | Psi |
| Process Connection | 1/2" NPTF Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Process Connection Type | NPTF |
| Promotion Restriction | Not Eligible For Promotion |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale | Imperial |
| Scale Type | Single |
| Secondary Range | ton. |
| Secondary Scale Minor Graduations | 1 |
| Secondary Scale Units | Ton. |
| Secondary Units | ton. |
| Series | GF Series |
| Smallest Graduation | 100 psi |
| Style | Glycerine Filled |
| Thread Dia. | 1/2" |
| Thread Type | NPTF |
| Vibration Resistance | Liquid Filled |
| Height (cm) | 10.16 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 15.24 |
| HS Code | 9026208000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.945 |
| Style | Model | Force | Accuracy | Lens Material | Connection Location | Secondary Range | Gauge Type | Secondary Scale Units | Pressure Range Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GF5P | 0 ton. to 5 ton. | -1% to +1% | Safety Glass | Lower | lbs., ton. | General Purpose | Lbs, Ton. | Pressure | $897.84 | |
| B | GF10P | 0 ton. to 11 ton. | -1% to +1% | Glass | Lower | lbs., ton. | Liquid Filled | Lbs, Ton. | Pressure | $935.31 | |
| C | GF20P | 0 lbs. to 51500 lbs. | 0.01% | Glass | Lower | lbs., ton. | Liquid Filled | - | Pressure | $911.64 | |
| D | GF50P | 0 lbs. to 10000 lbs. | 1% | Glass | Bottom | lbs., ton. | - | - | Pressure | $911.64 | |
| E | GF813P | - | 1% | Glass | Bottom | ton. | - | - | Pressure | $911.97 | |
| F | GF120P | 0 ton. to 13.5 ton. | - | - | - | - | - | - | - | $1,158.12 | |
| G | GF200P | 0 ton. to 0.75 ton. | - | - | - | - | - | - | - | $1,174.89 |
