| Item | Pressure Gauge |
|---|---|
| Accuracy Percentage Of Full Scale | 1 |
| Face Dia. | 4" |
| Force | 0 ton. to 13.5 ton. |
| Force (lbs) | 0 lbs. to 27000 lbs. |
| Gauge Compatibility | All 12 ton. RCH, QDH, RWH Cylinders |
| Maximum Operating Pressure (psi) | 10000 psi |
|---|---|
| Mount | Lower Mount |
| Required Gauge Adaptor | 1 ga., 2 ga. |
| Style | Glycerine Filled |
| Thread (in) | 1/2 NPTF |
| Units Per Division | 100 Psi, 200 lbs., 0.25 ton. |

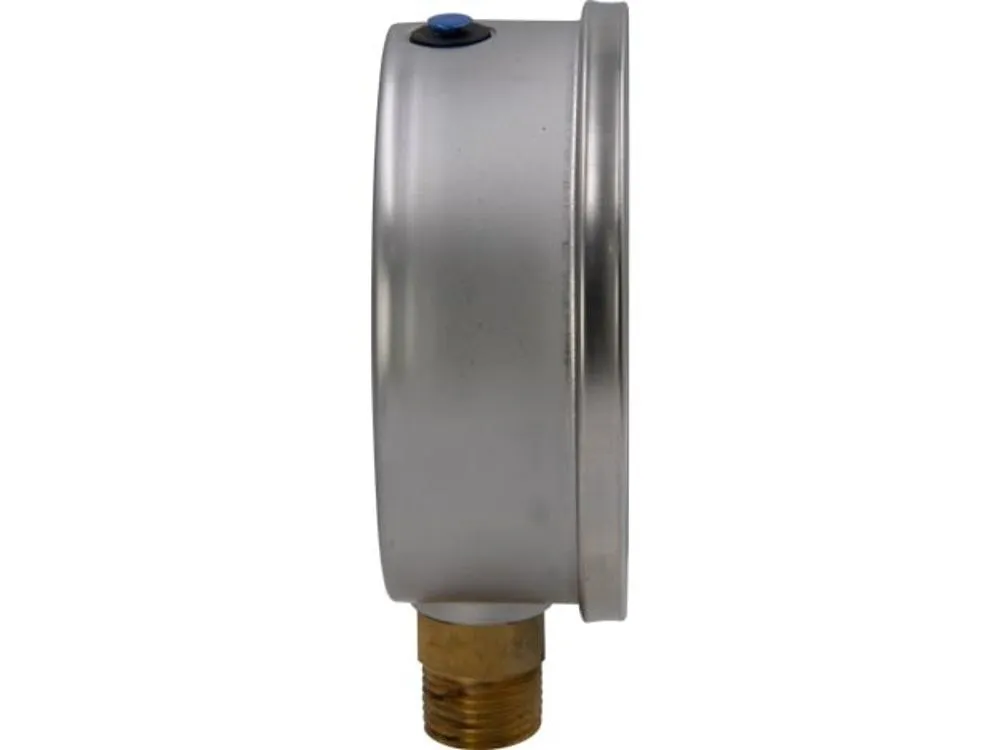

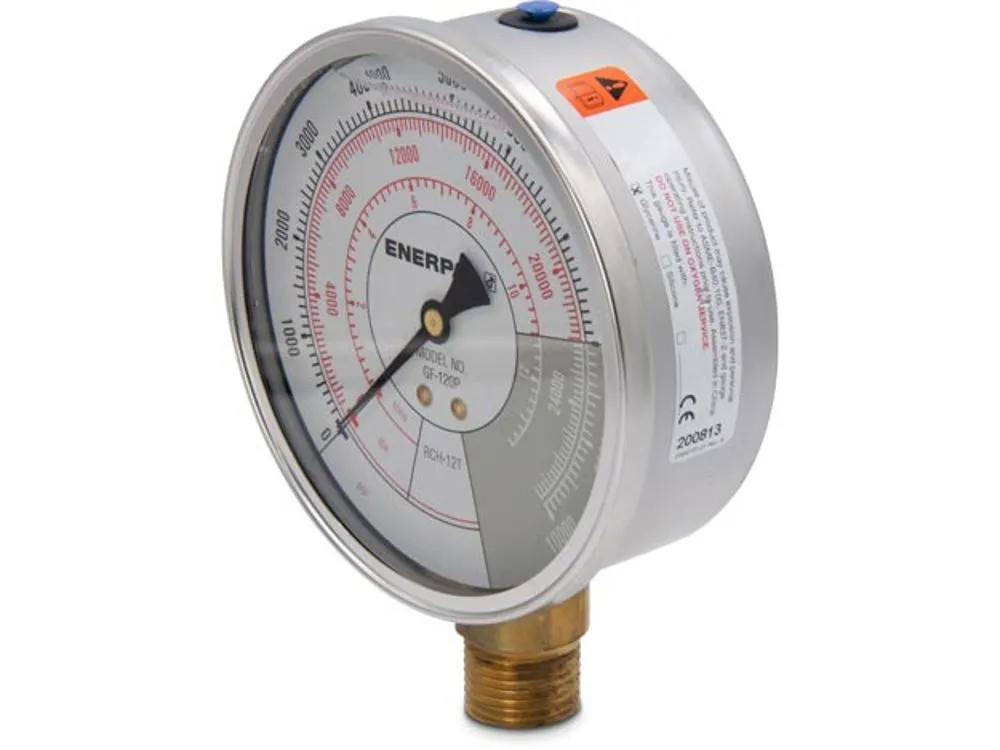

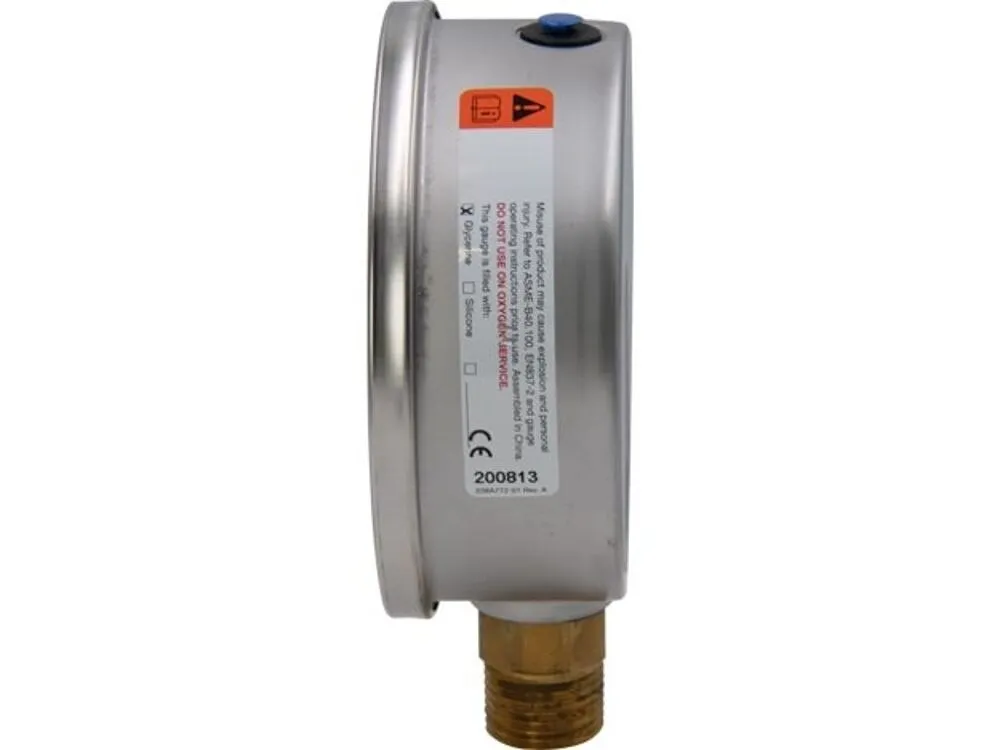

Enerpac GF120P gauge enables users to measure supported loads and the force applied to various Enerpac hydraulic cylinders. This GF Series pressure gauge measures external forces supported by a cylinder, jack or the force used for pressing parts.
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 5.08 |
| Width (cm) | 12.7 |
| Country Of Origin | CN |
|---|---|
| Weight (kg) | 0.945 |
Install the gauge as close to the pressure source as possible, preferably directly over the hydraulic system component.
Mount the gauge vertically if possible to ensure accurate readings. Also, make sure to avoid parallax error while taking the gauge reading.
Inspect for air bubbles in the hydraulic fluid, which can cause fluctuations. Check for loose connections or faulty components that may affect pressure stability.
| Style | Model | Force | Accuracy | Lens Material | Connection Location | Secondary Range | Gauge Type | Secondary Scale Units | Pressure Range Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GF5P | 0 ton. to 5 ton. | -1% to +1% | Safety Glass | Lower | lbs., ton. | General Purpose | Lbs, Ton. | Pressure | $897.84 | |
| B | GF10P | 0 ton. to 11 ton. | -1% to +1% | Glass | Lower | lbs., ton. | Liquid Filled | Lbs, Ton. | Pressure | $935.31 | |
| C | GF20P | 0 lbs. to 51500 lbs. | 0.01% | Glass | Lower | lbs., ton. | Liquid Filled | - | Pressure | $911.64 | |
| D | GF510P | - | -1% to +1% | Glass | Lower | ton. | Liquid Filled | Ton. | Pressure | $922.36 | |
| E | GF50P | 0 lbs. to 10000 lbs. | 1% | Glass | Bottom | lbs., ton. | - | - | Pressure | $911.64 | |
| F | GF813P | - | 1% | Glass | Bottom | ton. | - | - | Pressure | $911.97 | |
| G | GF200P | 0 ton. to 0.75 ton. | - | - | - | - | - | - | - | $1,174.89 |
