| Item | DC Power Supply |
|---|---|
| Case Material | Aluminum |
| Current - Inrush | 60A |
| Current - Output | 5A |
| Current - Peak | 7.5A |
| Depth | 4 19/25" |
| Enclosure Color | Aluminum |
| Features | Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint |
| Hold Up Time - Minimum | 22 ms |
| Housing Material | Aluminum |
| Input Frequency - Maximuim | 63 Hz |
| Input Frequency - Minimum | 47 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Manufacturer Warranty | 3 yrs. |
| Mean Time Between Failures (mtbf) | 500000 hrs. |
| Mounting | DIN Rail |
| Nema Enclosure Rating | 1 |
| Operating Temperature - Maximum | 167°F |
| Operating Temperature - Minimum | -13°F |
| Output Noise - Maximum | 50 mV |
|---|---|
| Output Power - Rated | 120 W |
| Output Voltage - Maximum | 28V DC |
| Output Voltage - Minimum | 24V DC |
| Output Voltage - Nominal | 24V DC |
| Overall Depth | 6" |
| Overall Height | 2 1/2" |
| Overall Width | 6 1/2" |
| Phase | Three |
| Power Rating | 120 W |
| Power Supply Style | Switching |
| Product Height | 2 1/2" |
| Product Width | 6 1/2" |
| Series | PSG Series |
| Special Features | Finger Safe, Overvoltage Protection |
| Status Indicator | LED, DC Ok Signal |
| Style | Switching |
| Wire Size - Maximum | 12 AWG |
| Wire Size - Minimum | 18 AWG |
| standard | CE, CSA C22.2, EN, IEC, ROHS, UL 508 |
| Height (cm) | 11.71 |
|---|---|
| Length (cm) | 12.09 |
| Width (cm) | 5 |
| Country Of Origin | TH |
|---|---|
| Weight (kg) | 0.8775 |
| Style | Model | Phase | Input Voltage | Type | Voltage | Mounting | Ip Rating | Status Indicator | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PSG480B24RM | Single | 24-48V DC | - | - | DIN Rail | IP20 | LED, DC Ok Signal | - | $718.73 | |
| A | PSG960F24RM | 3 | 400-500V AC | - | - | - | - | - | - | $962.76 | |
| B | PSS10E | 1 | 110-240V AC | - | - | - | - | - | - | $470.30 | |
| B | PSS160D | 3 | 480-600V | - | - | - | - | - | - | $4,377.96 | |
| B | PSS55D | 3 | 480-600V | - | - | - | - | - | - | $1,867.97 | |
| B | PSS25E | 1 | 110-240V AC | - | - | - | - | - | - | - | RFQ
|

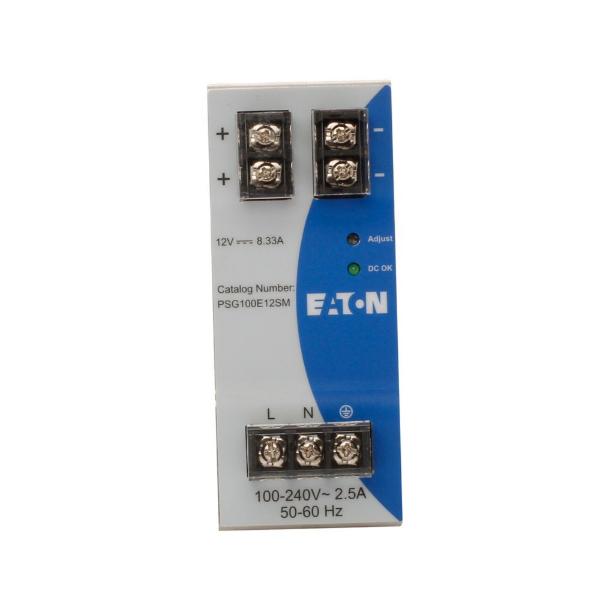

| C | PSG100E12SM | 1 | 100-240V AC | - | - | DIN Rail | IP20 | LED, DC Ok Signal | - | $410.83 |
