| Item | Power Supply |
|---|---|
| Current - Output | 8.3A |
| Current - Peak | 12.49A |
| Enclosure Material | Metal |
| Height | 7" |
| Hold Up Time - Minimum | 22 ms |
| Housing Material | Metal |
| Input Frequency - Maximuim | 60 Hz |
| Input Frequency - Minimum | 50 Hz |
| Input Frequency - Nominal | 50/60 Hz |
| Input Voltage | 100-240V AC |
| Ip Rating | IP20 |
| Length | 8" |
| Manufacturer Warranty | 1 yr. Installation, 18 Month Shipment |
| Max. Operating Temp. | 75°C |
| Min. Operating Temp. | -20°C |
| Mounting | DIN Rail |
| Nema Enclosure Rating | 1 |
| Operating Temperature - Maximum | 167°F |
| Operating Temperature - Minimum | -4°F |
| Output Noise - Maximum | 50 mV |
|---|---|
| Output Power - Rated | 100 W |
| Output Voltage | 12V |
| Output Voltage - Maximum | 12V DC |
| Output Voltage - Nominal | 12V DC |
| Overall Depth | 8" |
| Overall Height | 7" |
| Overall Width | 16" |
| Phase | 1 |
| Power Consumption | 100 W |
| Power Supply Style | Switching |

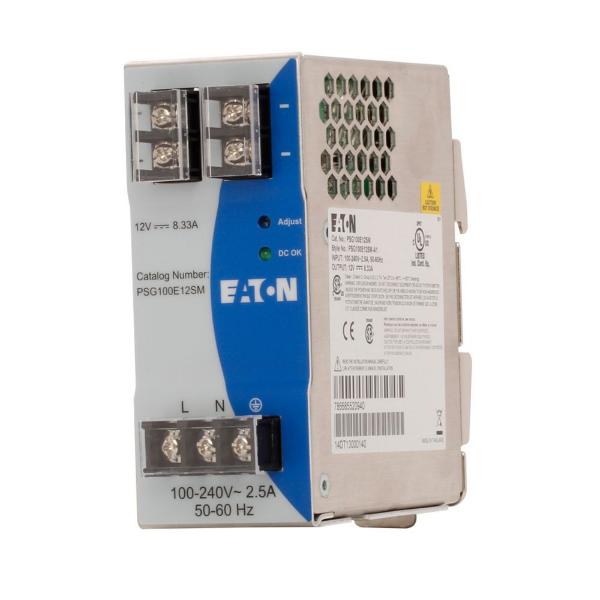

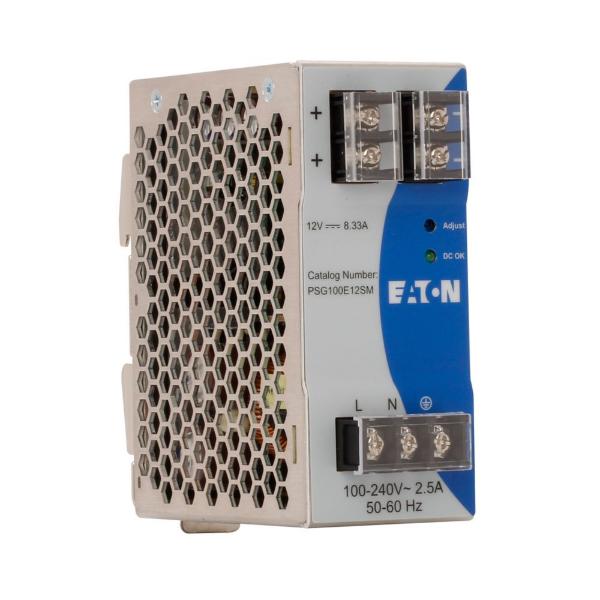

| Product Name | Eaton PSG general purpose power supply |
| Series | PSG Series |
| Special Features | Varistor Transient Surge Voltage |
| Status Indicator | LED, DC Ok Signal |
| Terminals | Heavy Duty Screw |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 16" |
| Wire Connection Type | Screw Terminals |
| standard | CE, CSA, CUL, CULUS/UL 60950-1, EN, GERMAN SAFETY, IEC, ROHS, UL 508 |
| Height (cm) | 17.78 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 40.64 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 2.025 |
| Style | Model | Phase | Input Voltage | Type | Voltage | Mounting | Ip Rating | Status Indicator | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PSG480B24RM | Single | 24-48V DC | - | - | DIN Rail | IP20 | LED, DC Ok Signal | - | $718.73 | |
| A | PSG960F24RM | 3 | 400-500V AC | - | - | - | - | - | - | $962.76 | |
| B | PSS10E | 1 | 110-240V AC | - | - | - | - | - | - | $470.30 | |
| B | PSS160D | 3 | 480-600V | - | - | - | - | - | - | $4,377.96 | |
| B | PSS55D | 3 | 480-600V | - | - | - | - | - | - | $1,867.97 | |
| B | PSS25E | 1 | 110-240V AC | - | - | - | - | - | - | - | RFQ
|
| A | PSG120E | 1 | 100-240V AC | - | 85-264V AC/100-375V DC | DIN Rail | IP20 | LED, DC Ok Signal | - | $575.84 |
