| Item | Air Belt Sander |
|---|---|
| Abrasive Length | 457 mm |
| Abrasive Width | 3 mm to 19 mm |
| Air Consumption | 28 CFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Pressure | 90 psig |
| Arm Rotation | 360° |
| Arm Type | Pivoting |
| Average Cfm @ 15 Sec. Run Time | 7 CFM |
| Belt Length | 18" |
| Belt Width | 3/4" |
| Cfm @ Full Load | 28 CFM |
| Duty | Heavy |
| Exhaust Location | Front |
| Exhaust Type | Front |
| Features | Belt Guard Detaches For Abrasive Change, Ergonomic 7° Offset Design |
| Free Speed | 20000 RPM |
| Grip Type | Offset |
| Hose Inside Dia. | 3/8" |
| Housing Material | Composite |
| Hp | 0.5 hp , 1/2 hp |
| Includes | Contact Arm |
|---|---|
| Max. Air Flow | 28 SCFM |
| Max. Belt Speed | 4550 SFPM |
| Max. Rpm | 20000 RPM |
| Max. Sfpm | 4550 SFPM |
| Max. Sm/min | 1386.84 |
| Min. Hose Size | 3/8" |
| Overall Length | 14 1/4" |
| Product Type | Air-Powered Belt Sander |
| Required Pressure | 90 psi |
| Sound Level | 80 dBA |
| Speed Settings | Fixed |
| Standards | Ce, Eac |
| Throttle | Non Locking Lever |
| Tool Height | 4.9" |
| Tool Length | 14.3" |
| Tool Series | DYNAFILE, DYNAFILE III Series |
| Tool Style | 7 Degree Offset |
| Tool Weight | 2.8 lbs. |
| Tool Width | 6 1/2" |
| Vacuum Type | Non Vacuum |
| Wattage | 298 W |
Dynabrade 40320 Dynafile II air belt sander is used to grind, deburr, blend and polish surfaces. This sander smooths and contours the interior and exterior corners of wood, metal & other materials.
| Height (cm) | 12.38 |
|---|---|
| Length (cm) | 36.2 |
| Width (cm) | 16.51 |
| HS Code | 8467111040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.485 |
Dynabrade 40320 air belt sander requires three full plunges of grease after 50 hours of operation.
Sand the wood in the grain direction by moving the sander back and forth in even, smooth strokes.
| Style | Model | Hp | Throttle | Exhaust Type | Min. Hose Size | Duty | Average Cfm @ 15 Sec. Run Time | Overall Length | Variable Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

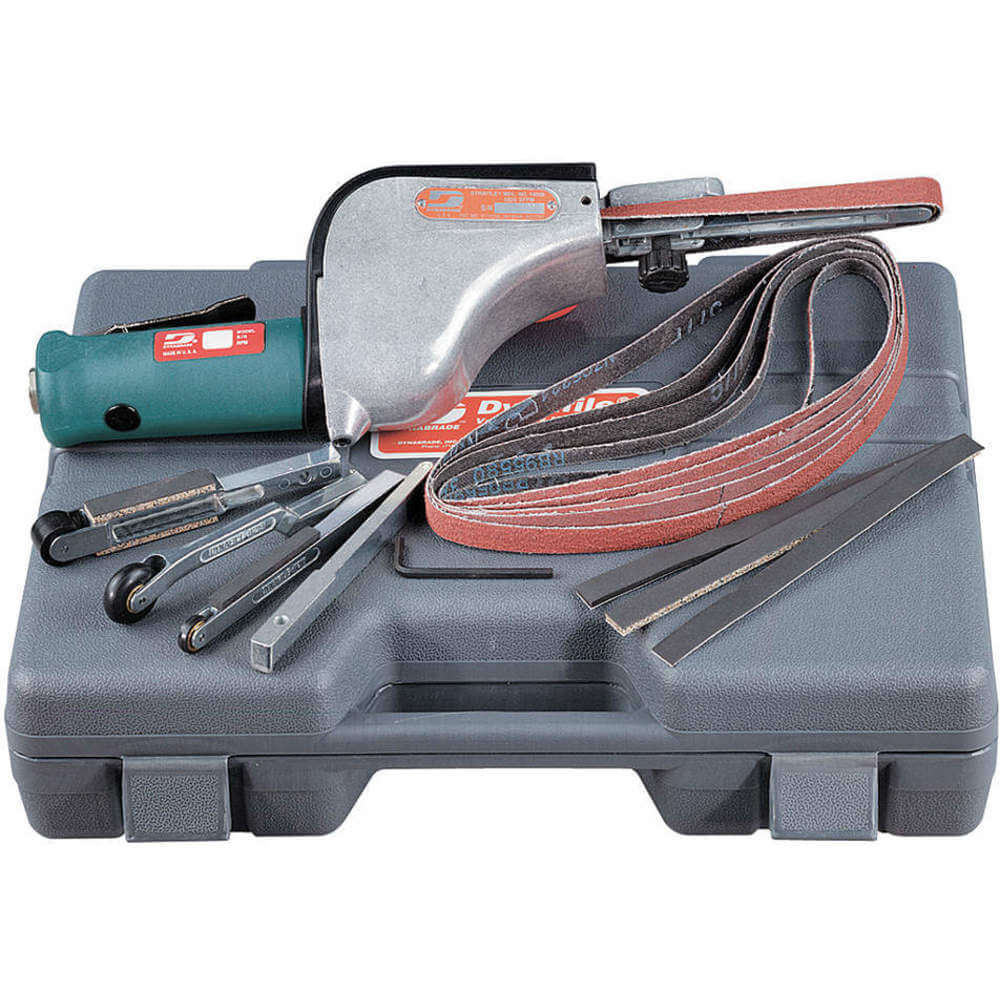

| A | 14010 | 1/2 hp | Non Locking Lever | Front | 1/4" | Heavy | 7.75 CFM | 14 5/8" | - | $1,577.13 | |
| B | 40321 | 1/2 hp | Non Locking Lever | Front | 3/8" | Heavy | 7 CFM | 14 1/4" | - | $1,476.56 | |
| C | 40326 | 1/2 hp | Non Locking Lever | Front | 3/8" | - | 7 CFM | 14 1/4" | - | $1,229.00 | |

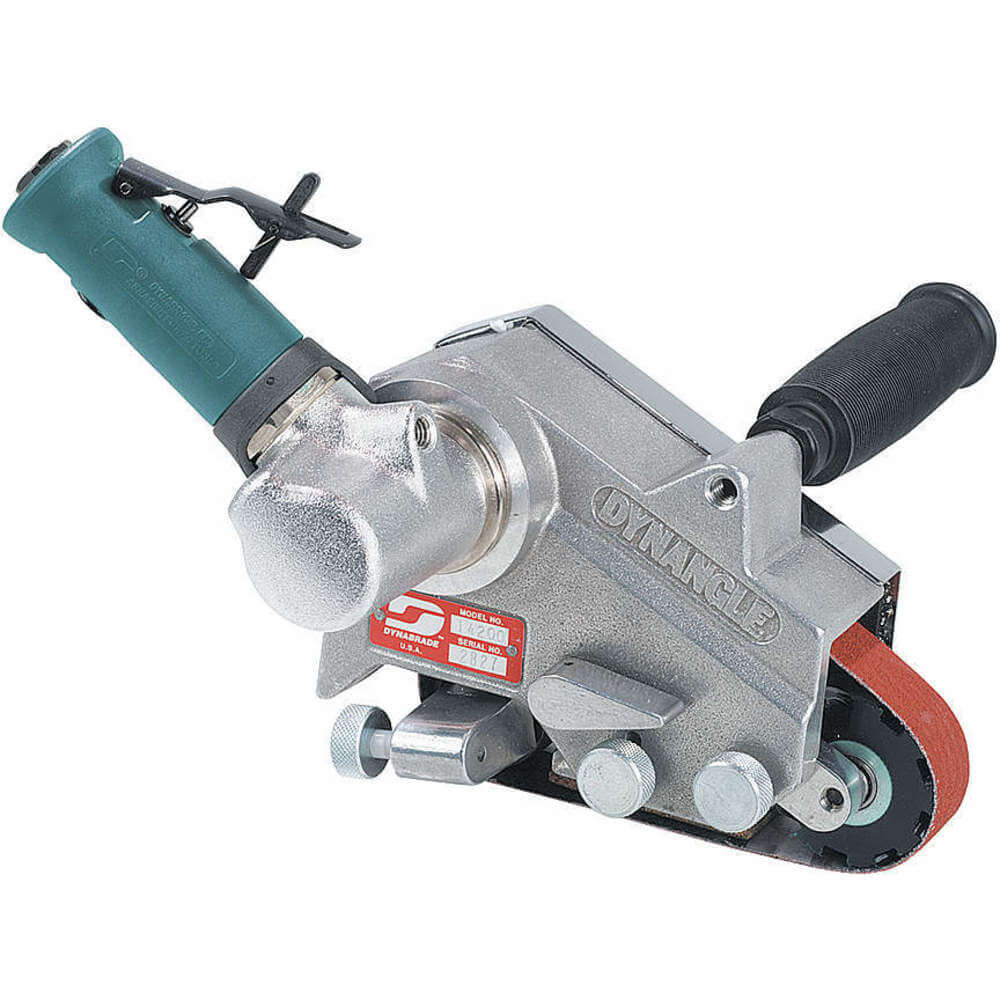

| D | 14200 | 7/10 hp | Lever with Safety Lock | Rear | 3/8" | Heavy | 9 CFM | 11" | Yes | $2,117.39 | |

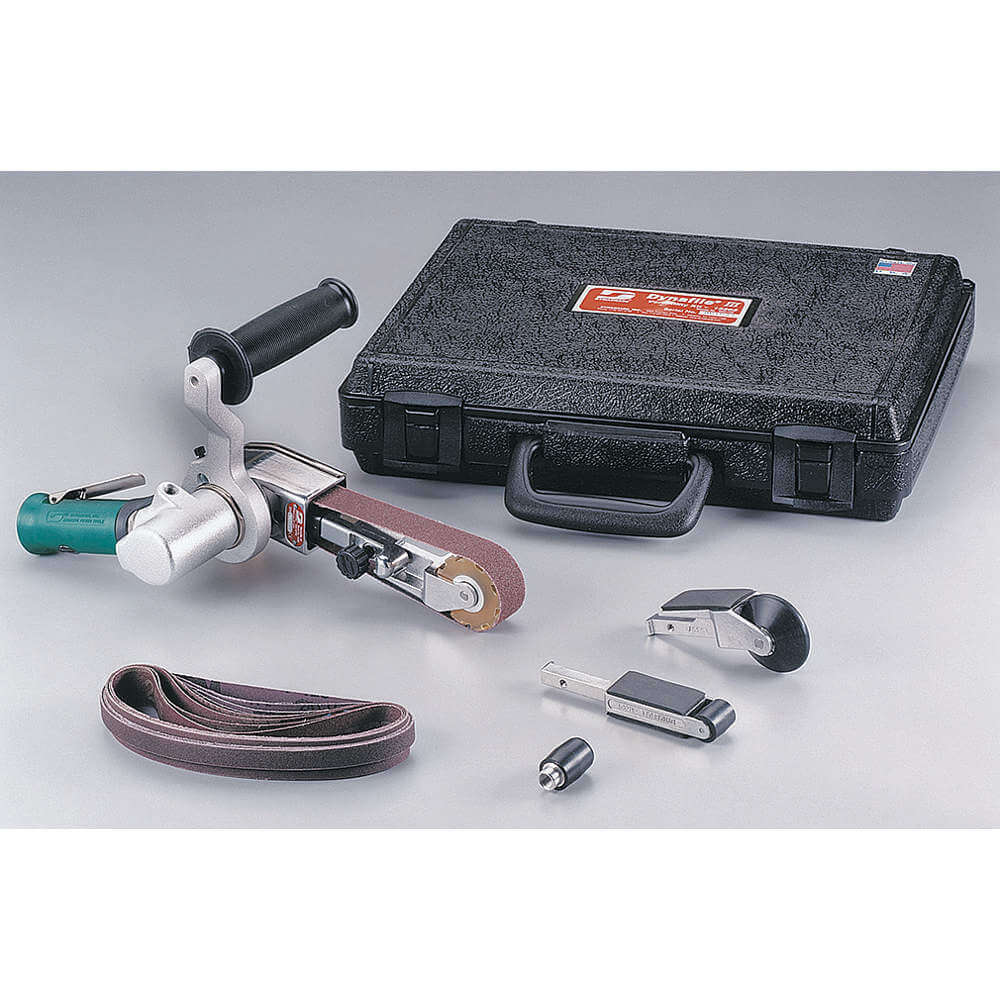

| E | 15302 | 7/10 hp | Lever | Front | 3/8" | Industrial | 8 CFM | 14 1/4" | No | $1,883.20 | |

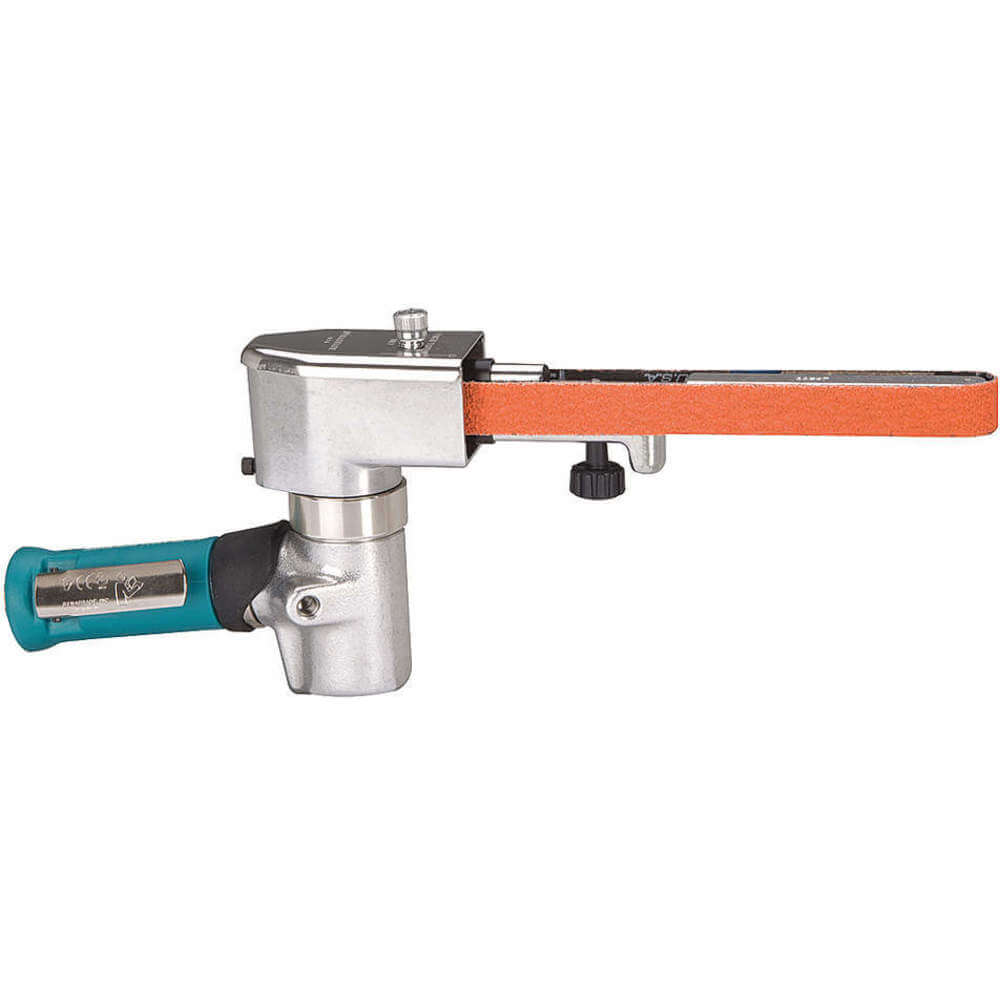

| F | 15401 | 7/10 hp | Lever with Safety Lock | Front | 3/8" | Heavy | 8 CFM | 15 1/2" | No | $1,471.43 | |

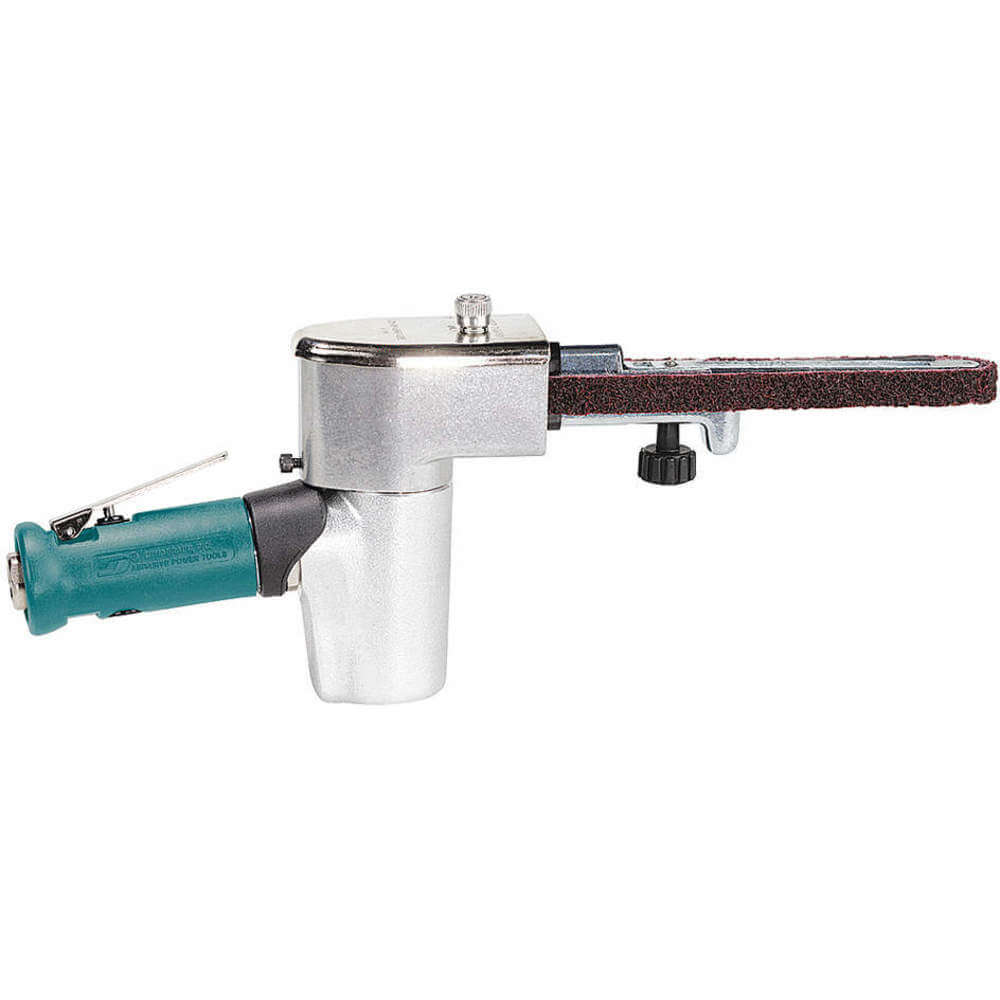

| G | 40335 | 0.5 hp | Non Locking Lever | Front | 3/8" | Heavy | 7 CFM | 14 1/4" | No | $1,321.65 |
