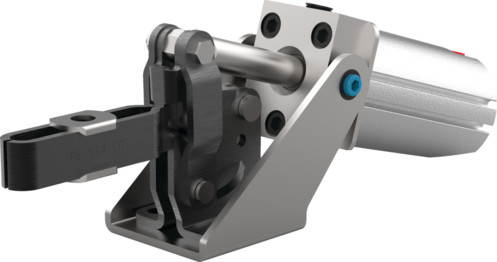

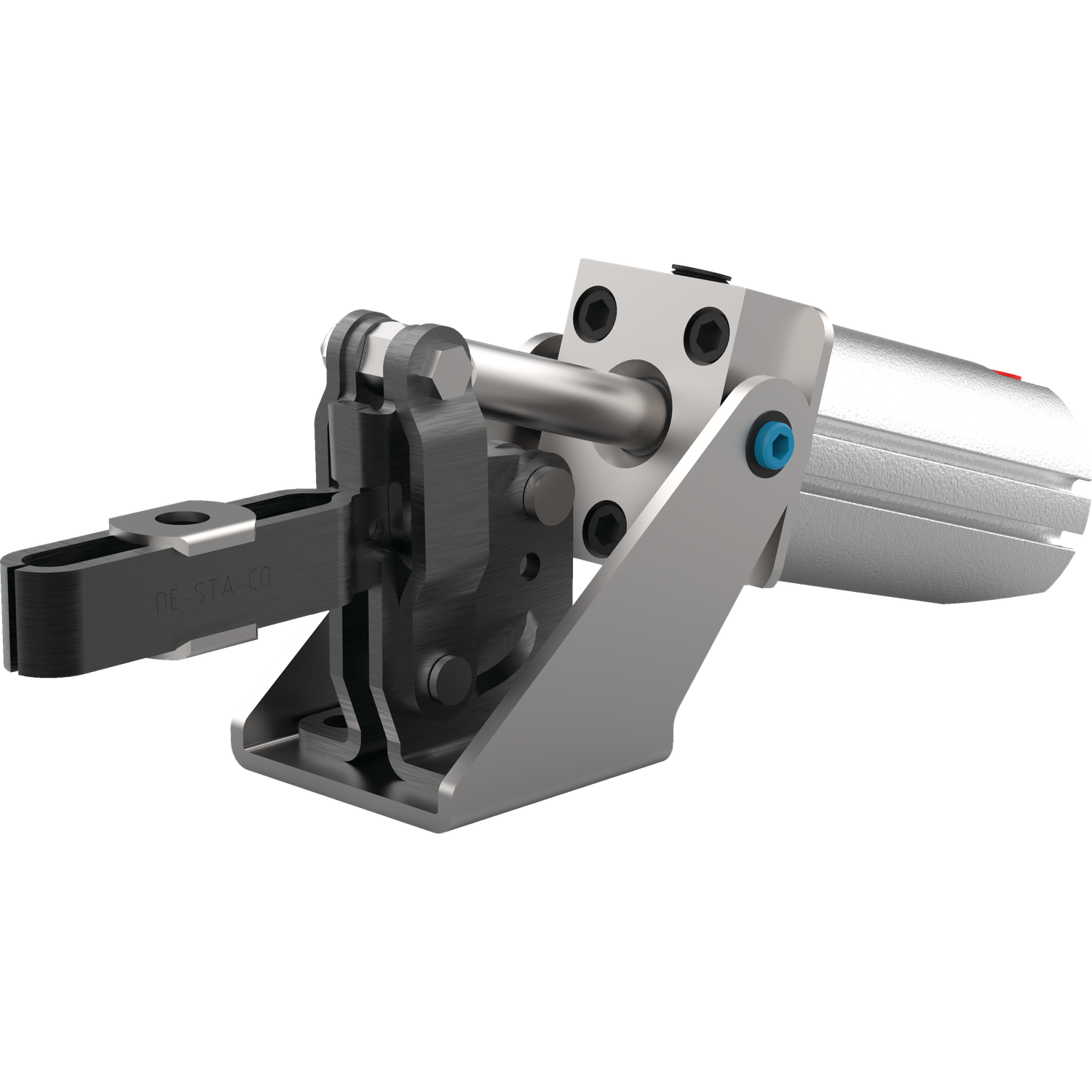

DESTACO 807-U-RC Replacement Pneumatic Toggle Clamp, 103 Degree Opening, Solid Bar

Destaco 807-U-RC is a replacement pneumatic hold down clamp for 807-U. This portable pneumatic clamp allows economical use on short-run jobs with temporary fixturing. Destaco 807-U-RC pneumatic clamp employs air-actuated cylinders to apply clamping pressure & hold workpieces in place. It is suitable for quick clamping in repetitive production operations. This portable pneumatic clamp allows economical use on short-run jobs with temporary fixturing. Destaco 807-U-RC clamp is actuated by double acting pneumatic cylinders with a maximum clamping pressure of 145 psig. This Destaco pneumatic clamp is equipped with a non pivoting cylinder that can easily be hard-piped into fixtures and is integrated with a magnetic piston ring for accurate position sensing. It is completely self contained & requires only a pressure source for user safety. This pneumatic hold down clamp is sensor ready for both round and T-slot style sensors and features in built flow restriction to eliminate the need for external flow controls. It has an enclosed design for spot & MIG welding in dirty working environments. It is equipped with a bolt retainer for handling loads up to 375 lb and can be operated at temperatures ranging from -14 to 194 degrees F.

Destaco 807-U-RC pneumatic hold down clamp offers a broad combination of features, making them adaptable to applications such as gripping, clamping, system checking, fixturing & testing, welding, CNC machining and locating applications in the aerospace, automotive and food & packaging industries.

• Destaco 807-U-RC pneumatic hold down clamp is equipped with a magnetic ring piston that allows accurate position sensing.
• It incorporates built-in flow control for unrestricted airflow and smooth operation.
• This pneumatic hold down clamp features a lever to apply pneumatic pressure to the clamping head.
• Destaco 807-U-RC replacement pneumatic clamp is integrated with a U-bar clamp arm to attach arm extensions.
• The models are sensor ready to accomodate round or T-slot sensors.

• Destaco 807CYL replacement cylinder assembly: It is designed to replace faulty cylinders in case the old one wears out or is defective.
• Destaco 507107: This flanged washer is used with Destaco 807-U-RC pneumatic hold down clamp for maintaining sufficient load to tighten gaskets and bolts of a flange during clamping. This flanged washer is made of steel to provide structural rigidity and for resisting corrosion on exposed surfaces.

• Destaco 807-U-RC replacement pneumatic toggle clamp is constructed in accordance with international standards like ISO 14001:2015 & ISO 9001:2015 for ensuring environmental health & safety, and efficient performance of the clamps.

• Destaco 807-U-RC pneumatic toggle clamp comes with a flanged base with threaded holes for easy and secure installation.
