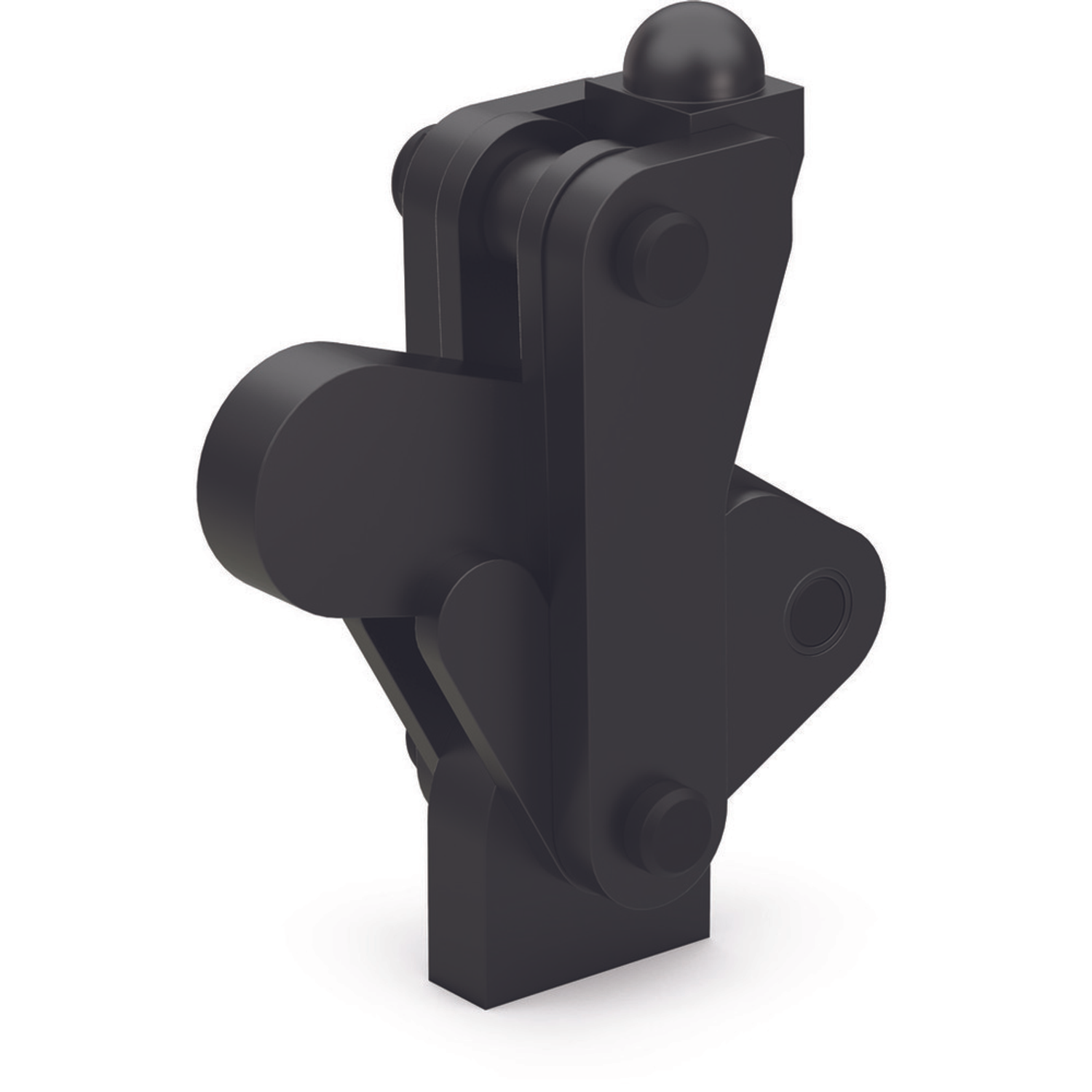

DESTACO 506-MB Vertical Hold Down Toggle Locking Clamp, 5000 lb Capacity

Destaco 506-MB vertical hold down clamp is designed to apply downward clamping force by increasing the applied load via toggle mechanisms. It offers a stationary alternative to removable C clamps or spring clamps when securing & holding material to a work surface using a lever handle that engages & releases the clamping head by pushing the handle to the upright position when the clamp is engaged. This vertical hold down toggle locking clamp is equipped with an ergonomically designed handle to minimise strain and pain while working. It comprises accurately machined components having hardened & ground pivot pins and bushings to tolerate loads up to 5000 lb during welding, assembling and heavy duty production applications. This weldable vertical toggle locking clamp offers the flexibility to position the base, clamp arm & handle and weld them in any desired position to suit different applications. It can adapt to workpieces of different heights and is virtually maintenance free as it only requires a few drops of lubrication to keep the clamp in an efficient condition. Additionally, the clamp features high clamping ability that reduces necessary fixtures for a particular application. It has high exerting force and flexible adjustability that are useful when working with materials of varying thicknesses. The fixed design of the clamp secures & loosens workpieces without moving the clamp itself. Destaco 506-MB clamp also enables the user to undertake an action without being worried by the frequent movement of a workpiece.

Destaco 506-MB weldable vertical hold down toggle locking clamp offers a wide combination of features, making it adaptable to applications such as assembling, welding & heavy duty production, in the aerospace, automotive and food & packaging industries.

• Destaco 506-MB weldable vertical hold down clamp features forged alloy steel construction to offer exceptional strength & structural rigidity.
• The clamp comes with hardened pivot pins and bushings to ensure long service life.
• It can handle loads up to 5000 lb.
• This Destaco 506-MB vertical hold down toggle clamp is available in a swivel mounting base option to suit multiple application requirements.
• It combines modular construction with a fixed design to offer the ability to secure and loosen material without moving the clamp.

• Destaco 506502: These base plates enhance the capabilities of Detaco 506-MB variable stroke straight line action clamp. They are used to mount the clamp to a fixed square bar to meet the specifications of the application.
• Destaco 506503-L: These pipe handles are ideal for use with 506-MB vertical clamp for preventing accidents because of slipping or losing grip, to ensure high level of safety during work.

• Destaco 506-MB vertical hold down toggle locking clamp is ISO 9001:2015 and ISO 14001:2015 certified for utmost user safety and efficient performance of the clamp.

• Destaco 506-MB variable stroke straight line action clamp features a weldable design to allow the user to weld base, clamp arm & handle in any desired position for versatile clamp set up to meet different application requirements.
