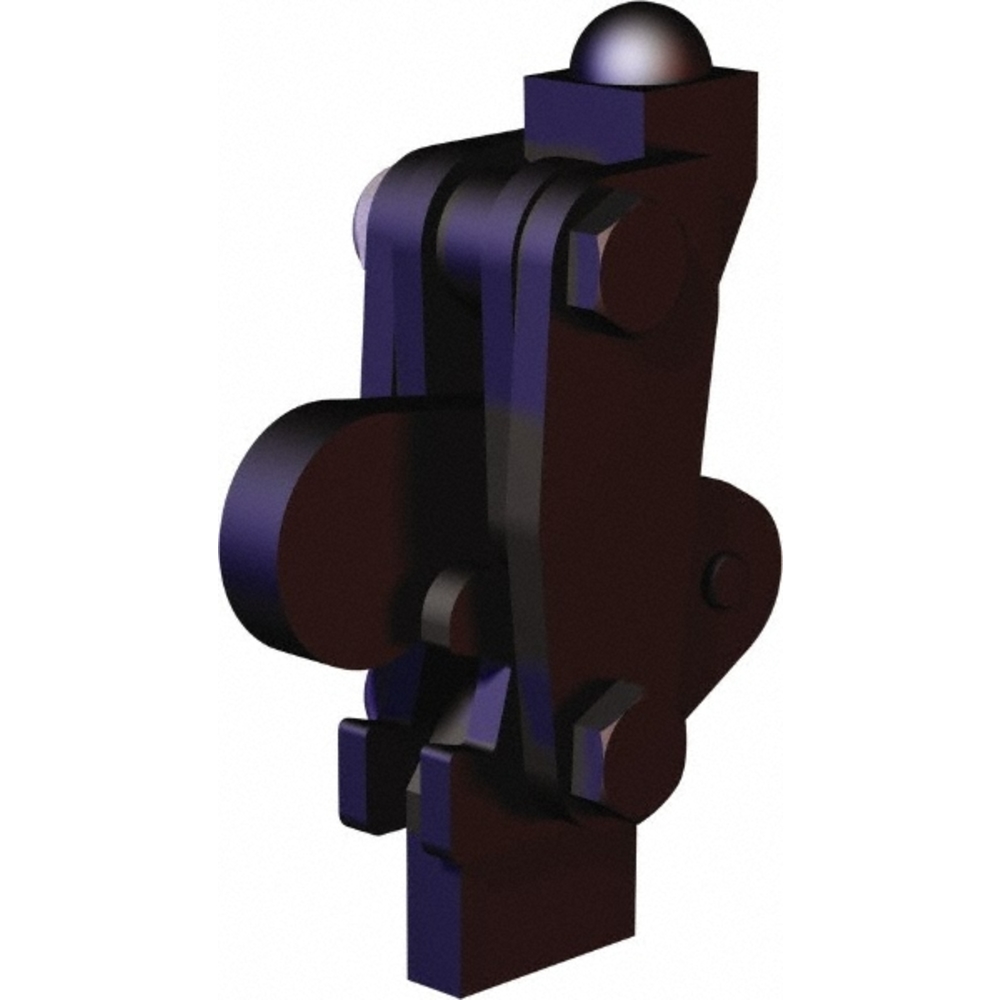

DESTACO 501-B Vertical Hold Down Clamp, Weldable Arm, 450 lb Capacity

Destaco 501-B weldable vertical hold down clamp is designed to apply downward clamping force by increasing the applied load via toggle mechanisms. This weldable vertical toggle clamp offers the flexibility to position the base, clamp arm & handle and weld these in any desired position to suit different applications. It comprises accurately machined components having hardened & ground pivot pins and bushings, ensuring maximum function and excellent performance. The clamp offers a stationary alternative to removable C clamps or spring clamps when securing material to a work surface. It holds workpieces in place using a lever handle that is pushed to the upright position when the clamp is engaged and is equipped with an ergonomically designed handle to minimise strain and pain while working. The lever handle engages & releases the clamping head, which holds a workpiece onto a worktable and is used in welding, assembling & heavy duty production applications. This hold down toggle clamp features high clamping ability to reduce necessary fixtures for a particular application. It can adapt to workpieces of different heights and is virtually maintenance free as it only requires a few drops of lubricating oil to keep the clamp in an excellent condition. Destaco 501-B clamp enables the user to undertake an action without being worried by the frequent movement of a workpiece. It has high exerting force and flexible adjustability that are useful when working with materials of varying thicknesses. The fixed design of the clamp secures & loosens workpieces without moving the clamp itself.

Destaco 501-B weldable vertical hold down clamp offers a wide combination of features, making it adaptable to applications such as assembling, welding & heavy duty production, in the aerospace, automotive and food & packaging industries.

• Destaco 501-B weldable vertical hold down clamp features forged alloy steel construction to offer exceptional strength & structural rigidity and handle loads up to 450 lb.
• The clamp comes with hardened pivot pins and bushings to ensure long service life.
• It combines modular construction with a fixed design that offers the ability to secure and loosen material without moving the clamp.
• This Destaco 501-B vertical hold down toggle clamp is available in a swivel base option to suit the application requirements.

• Destaco 503502, 501503 & 501502: These replacement, heavy duty clamps enhance the capabilities of Detaco 501-B variable stroke straight line action clamps. They are used for high performance workholding, automation and containment solutions.

• Destaco 501-B weldable vertical hold down clamp is ISO 9001:2015 and ISO 14001:2015 certified.

• Destaco 501-B variable stroke straight line action clamp features a weldable design to allow the user to weld base, clamp arm & handle in any desired position for versatile clamp set up to meet different application requirements.
