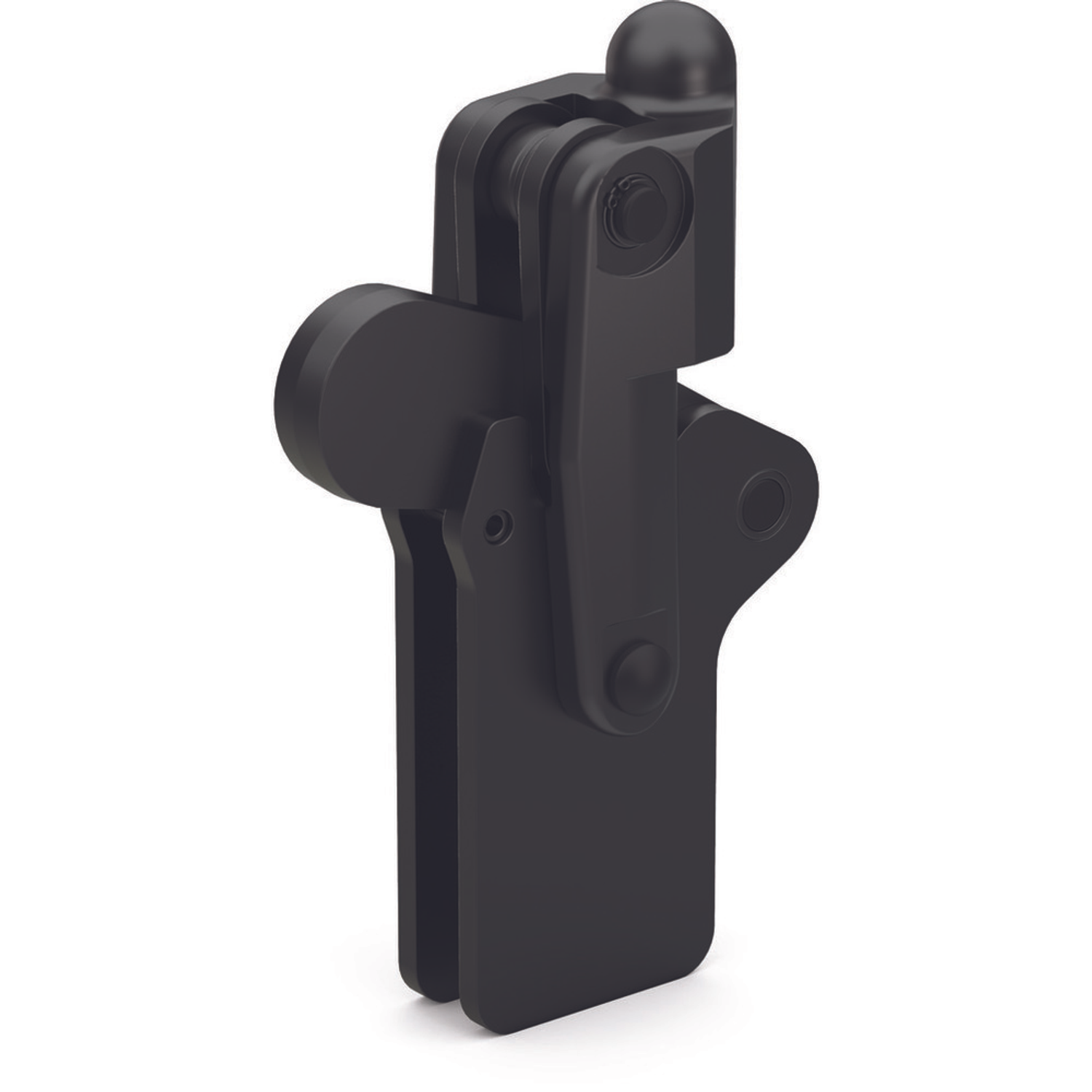

DESTACO 505-MLB Vertical Hold Down Clamp, 1.14 Inch Clamp Arm, 2400 lb

Destaco 505-MLB vertical hold down clamp is designed for holding large workpieces in manufacturing plants and production line facilities. This toggle clamp is an ideal choice for operations where there is a requirement to clamp / detach the workpiece repeatedly throughout the operation. Its forged alloy steel construction resists bending / breaking under heavy loads and modular design offers complete flexibility to position the clamp arm, base and handle. It features a weldable clamping arm for ensuring secure installation and a bar with adjustable angle (upto 200 degrees) for clearing the work area. Destaco 505-MLB vertical hold down clamp comes with a locking spring clip that secures the handle in open position for enabling easy clamping. This heavy duty clamp has hardened pivot pins & bushings for minimising clamp wear over intensive usage. However, this clamp is not recommended for woodworking, food processing and closure checking applications. Destaco vertical hold down clamp is also offered in swivel base with locking spring clip style variants on Raptor Supplies.

• Destaco 505-MLB vertical hold down clamp is designed for performing production line clamping, welding, checking fixtures, machining and assembly operations. However, these clamps are not recommended for woodworking & checking closures.

• Destaco 505-MLB vertical hold down clamp features forged alloy steel construction that resists bending / breaking under heavy loads.
• It features modular design that offers complete flexibility to position the clamp arm, base and handle.
• Destaco vertical hold down clamp features a weldable clamping arm for ensuring secure installation and a bar with adjustable angle (upto 200 degrees) for clearing the work area.
• This heavy duty clamp has hardened pivot pins & bushings for minimising clamp wear over intensive usage.
• Destaco vertical hold down clamp comes with a locking spring clip that secures the handle in open position for enabling easy clamping.
• Destaco also offers a wide variety of vertical hold down clamps in a range of configurations & styles, such as J hook style arm clamps, low profile T style handle clamps & Toggle Lock Plus enabled clamps.

• Destaco 505-MLB vertical hold down clamp supports various accessories including Destaco 505503-L replacement handle (used for controlling the clamping bar movement), Destaco 505501 clamping bar & Destaco 505502 base plate (used for installing the clamp to a flat surface).

• Destaco 505-MLB vertical hold down clamp is manufactured in compliance with ISO 9001:2015 & ISO 14001:2015 international industry standards.

• Destaco 505-MLB clamp features a long base that can be fixed to a mounting plate and can be screwed on a flat surface afterwards. Upon requirement, the clamp can also be removed by just unscrewing its screws using a simple screwdriver.
