| Item | Belt Drive Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 8 5/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | Belt Drive Fan/Blower |
|---|---|
| Motor Thermal Protection | Auto |
| Motor Type | Split Phase |
| Mounting Stud Pattern | 4 1/8" x 4 1/8" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 10 5/16" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/2" |
| Ring To Ring Center | 7 13/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2" |
| Standards | CSA |
| Stud Pattern | 4 1/8" x 4 1/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Height (cm) | 21.59 |
|---|---|
| Length (cm) | 35.56 |
| Width (cm) | 20.32 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 20 |
| Style | Model | Voltage | Rpm Range | Motor Enclosure Design | No. Of Speeds | Motor Mounting Type | Phase | Nameplate Rpm | Frame | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

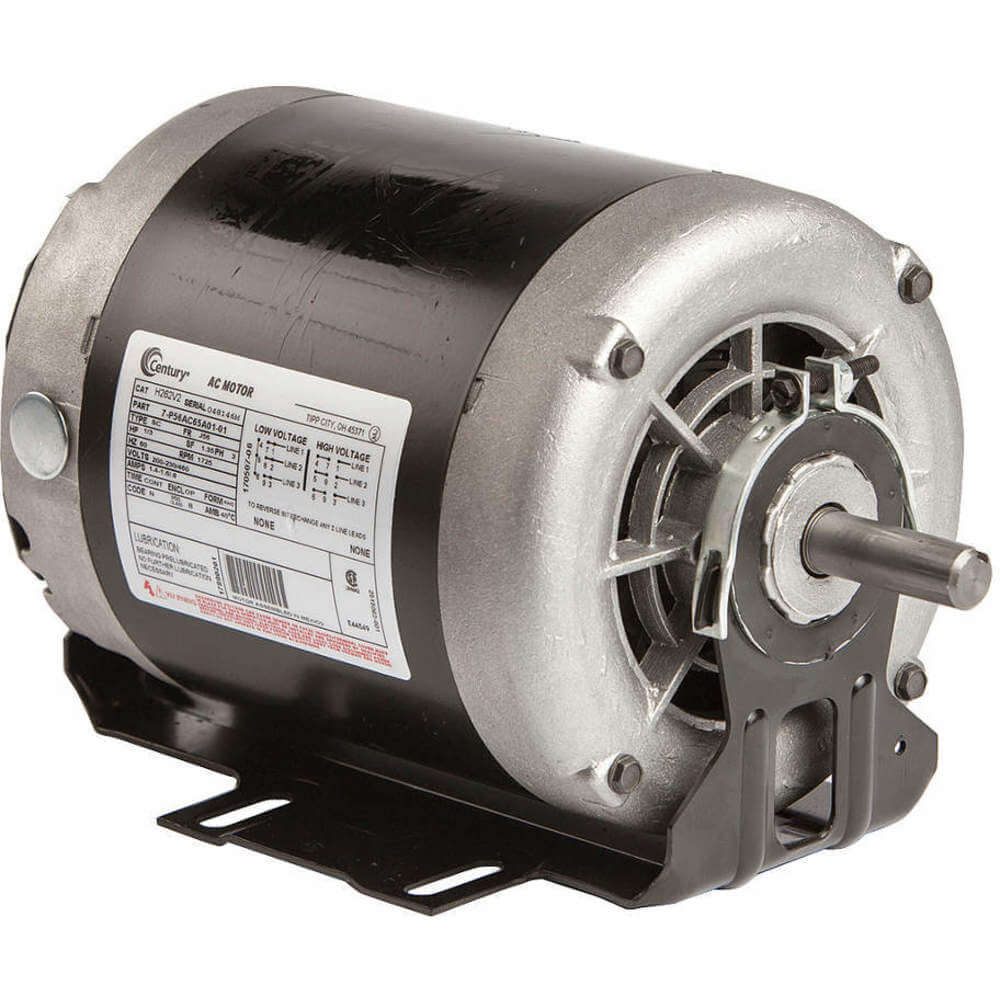

| A | H262V2 | 200-230/460V AC | 1701-1800 RPM | Open Dripproof | 1 | Cradle Base | 3 | 1725 RPM | 56 | $566.86 | |
| B | B722L | 115/208-230V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 1 | 3450 RPM | 56 | $813.54 | |
| C | H843V1 | 200-230/460V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 3 | 3450 RPM | 56H | $566.64 | |

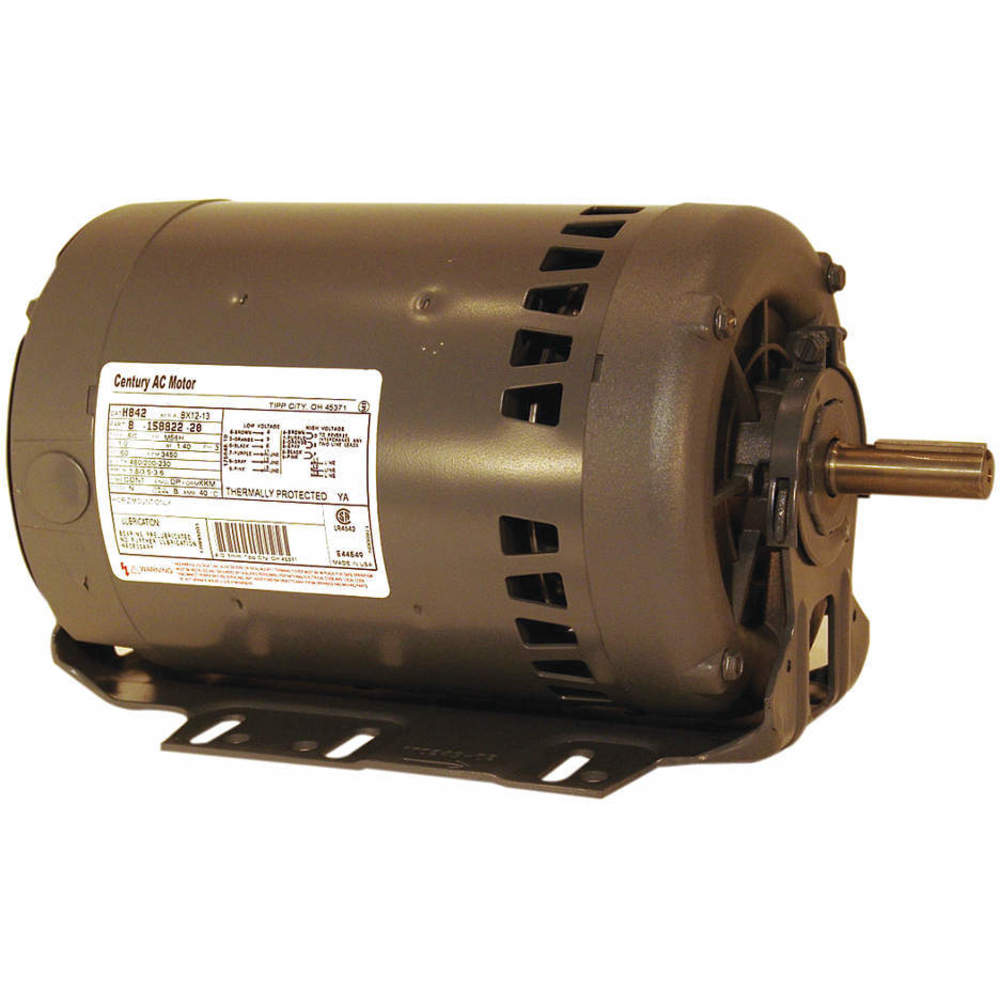

| D | H844 | 200-230/460V AC | 3001-3600 RPM | Open Dripproof | 1 | Cradle Base | 3 | 3450 RPM | 56H | $573.79 | |
| E | RB1204AV1 | 115/208-230V AC | 1701-1800 RPM | Open Dripproof | 1 | Cradle Base | 1 | 1725 RPM | 56H | $920.21 | |
| F | C533 | 115V AC | 1701-1800 RPM | Open Dripproof | 2 | Cradle Base | 1 | 1725/1140 RPM | 56 | $1,025.60 | |

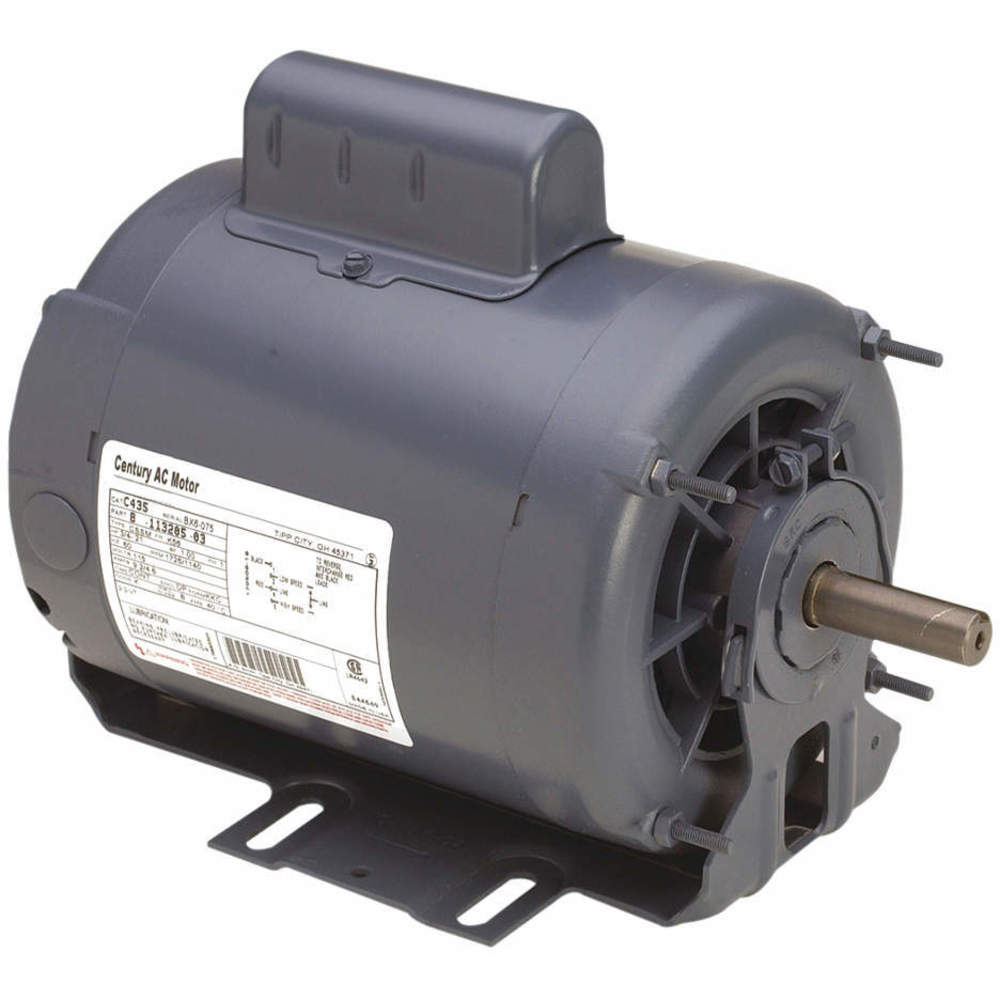

| F | C471A | 115V AC | 1701-1800 RPM | Open Dripproof | 2 | Cradle Base | 1 | 1725/1140 RPM | 56 | - | RFQ
|
