| Item | Direct Drive Blower Motor |
|---|---|
| Bearing Type | Sleeve |
| Body Dia. | 5 5/8" |
| Capacitor Included | No |
| Capacitor Required | 2MDV3 |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Full Load Amps | 4.9/2.5A |
| Hp | 1/4 hp |
| Hz | 60 Hz |
| Includes | Resilient Mounting Ring |
| Insulation Class | Class B |
| Length Less Shaft | 5 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
|---|---|
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Mounting | Ring |
| Mounting Holes | 4 |
| Mounting Type | Cushion Ring |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Number Of Shafts | 1 |
| Number Of Studs | 4 |
| Overall Length | 9 1/2" |
| Phase | 1 |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 5 1/16" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Type | Flat |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 17.78 |
|---|---|
| Length (cm) | 27.94 |
| Width (cm) | 19.05 |
| HS Code | 73102990000 |
|---|---|
| Country Of Origin | IN |
| Weight (kg) | 13 |
| Style | Model | Hp | Capacitor Required | Full Load Amps | Motor Mounting Position | Overall Length | Capacitor Included | Ring To Ring Center | Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

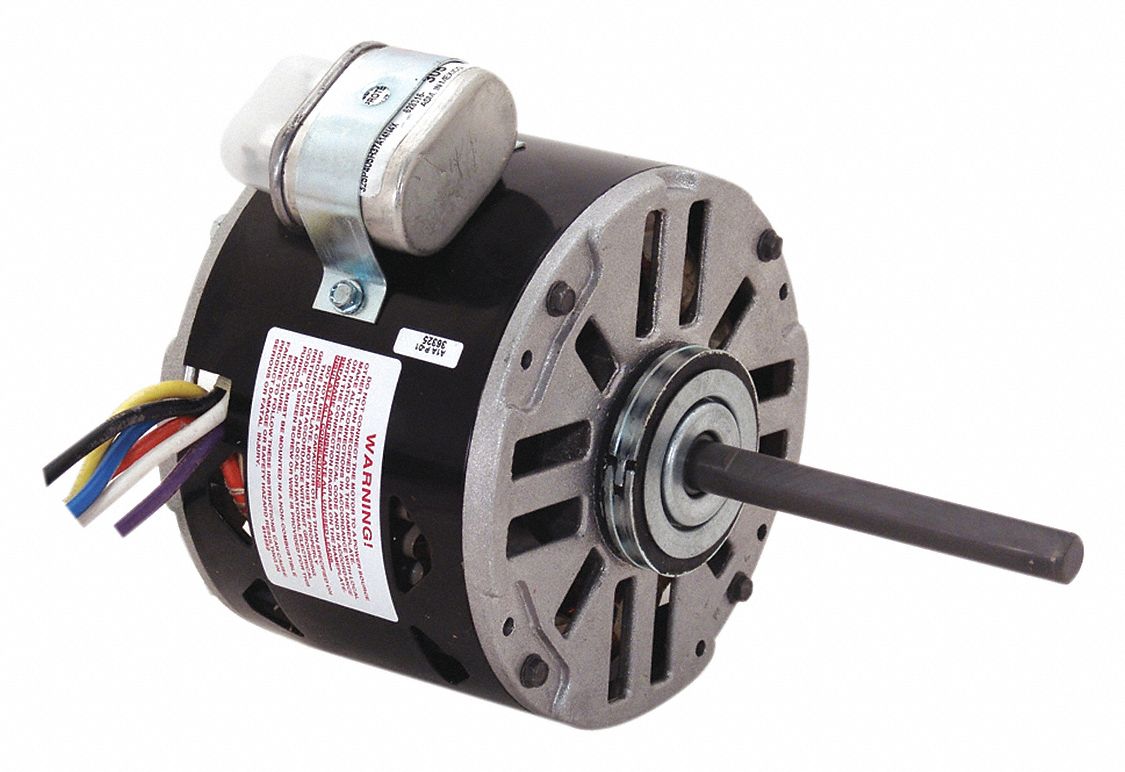

| A | 9704 | 1/8 hp | Included | 2.7/1.2/1.4A | All Angle | 9 1/8" | Yes | 4 11/16" | 115/208-230V AC | $294.52 |
