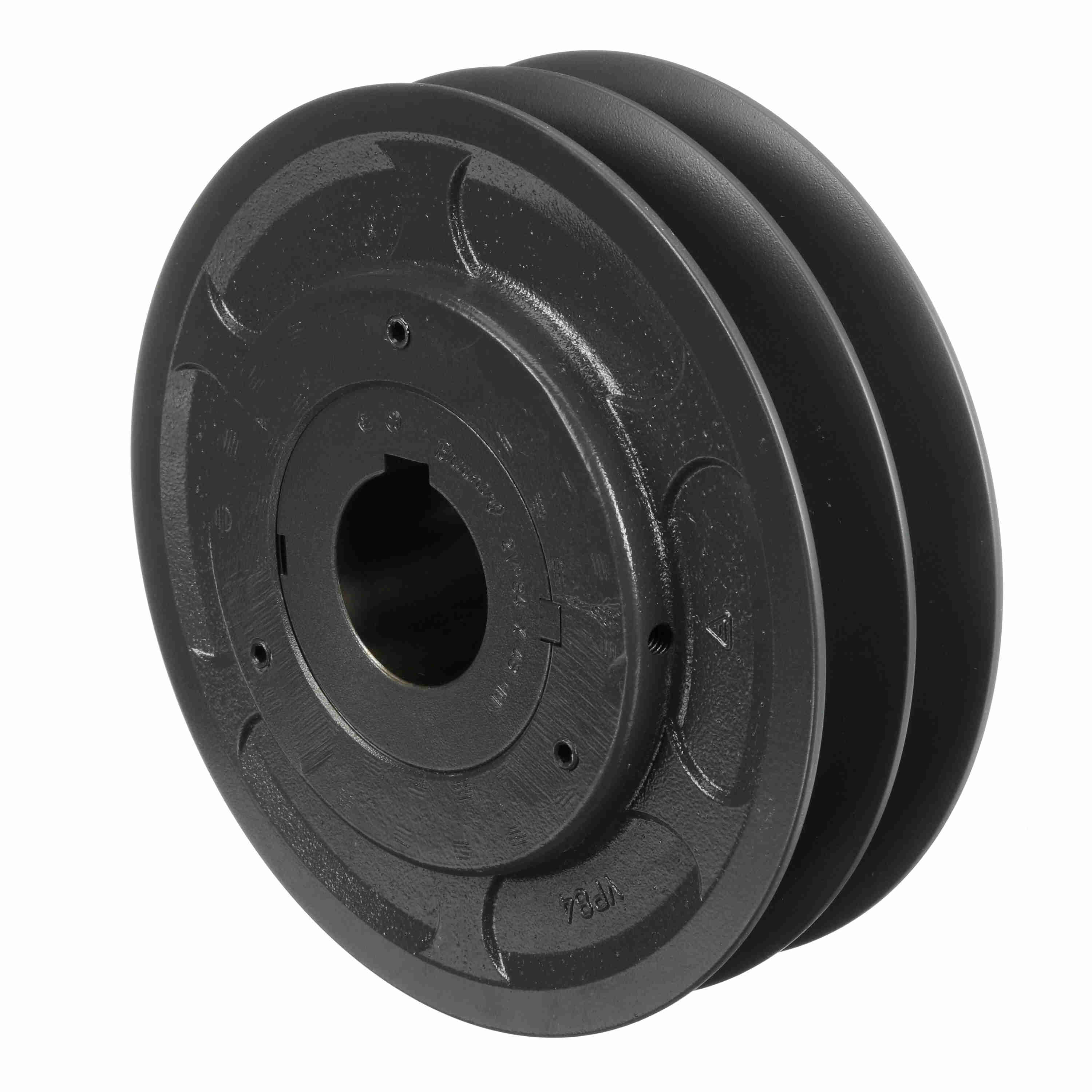

| Item | V-Belt Sheave |
|---|---|
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 48 mm |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 5/8" to 2 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Pitch Dia. | 8 2/5" |
| Min. Belt Width | 1/2" |
| Min. Pitch Dia. | 6.7" |
|---|---|
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 8 1/2" |
| Overall Length | 3.3" |
| Pitch Dia. (5v) | 7 1/5" to 8 2/5" |
| Pitch Dia. (a) | 6.9" to 7.9" |
| Pitch Dia. (b) | 7 1/5" to 8 2/5" |
| Series | 2VP Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Metric |
| Height (cm) | 21.59 |
|---|---|
| Length (cm) | 8.38 |
| Width (cm) | 21.59 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 10.035 |
