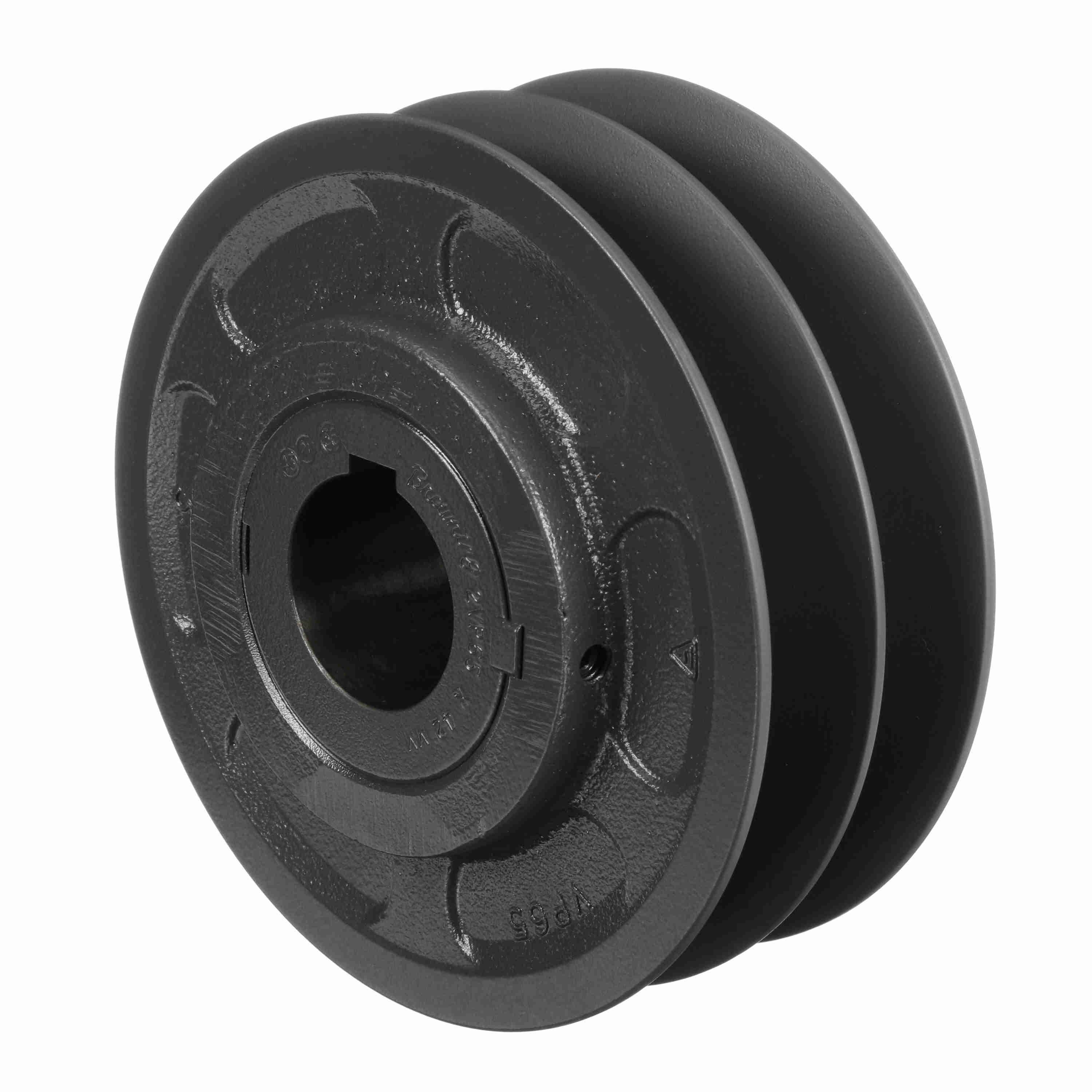

| Item | V-Belt Sheave |
|---|---|
| Adjustment Method | Manual Turn |
| Belt Series | 4L, A, 5L, B, 5V Series |
| Bore Dia. | 42 mm |
| Bore Size | 1.654" |
| Bore Type | Finished Bore |
| Bushing Size | No Bushing |
| Face Width | 1 5/8" to 2 3/8" |
| Keyway Included | Yes |
| Keyword String | Transmission |
| Long Description | Variable Speed Pulley, 42 mm Bore, 2 Grooves, 165.1 mm Outside Diameter, Finished Bore, No Bushing, 12.7 mm Belt Width Min, 12.7 mm Belt Width Max, 4L, A, 5L, B, 5V Belt Series, 16.662 mm Pitch Dia Min, 124.46 mm Pitch Dia Max, 162.56 mm Face Wid Min, 41.275 mm Face Wid Max, Keyway, Manual Turn Adjustment |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2 3/8" |
| Max. Pitch Dia. | 6 2/5" |
|---|---|
| Min. Belt Width | 1/2" |
| Min. Face Width | 1 5/8" |
| Min. Pitch Dia. | 4.9" |
| Minimum Plain Bore | No |
| Mounting Method | Finished |
| No. Of Grooves | 2 |
| Outside Dia. | 165.1 mm |
| Overall Length | 3 1/4" |
| Pitch Dia. | 4.9" to 5.9", 5.2" to 6.4" |
| Series | VP Series |
| Suitable For Use With | Gripbelt 4L/A, 5L/B And 5V Cross Section FHP V-Belt |
| System Of Measurement | Metric |
| Type | Type 5 |
| Height (cm) | 16.51 |
|---|---|
| Length (cm) | 8.26 |
| Width (cm) | 16.51 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 5.94 |
