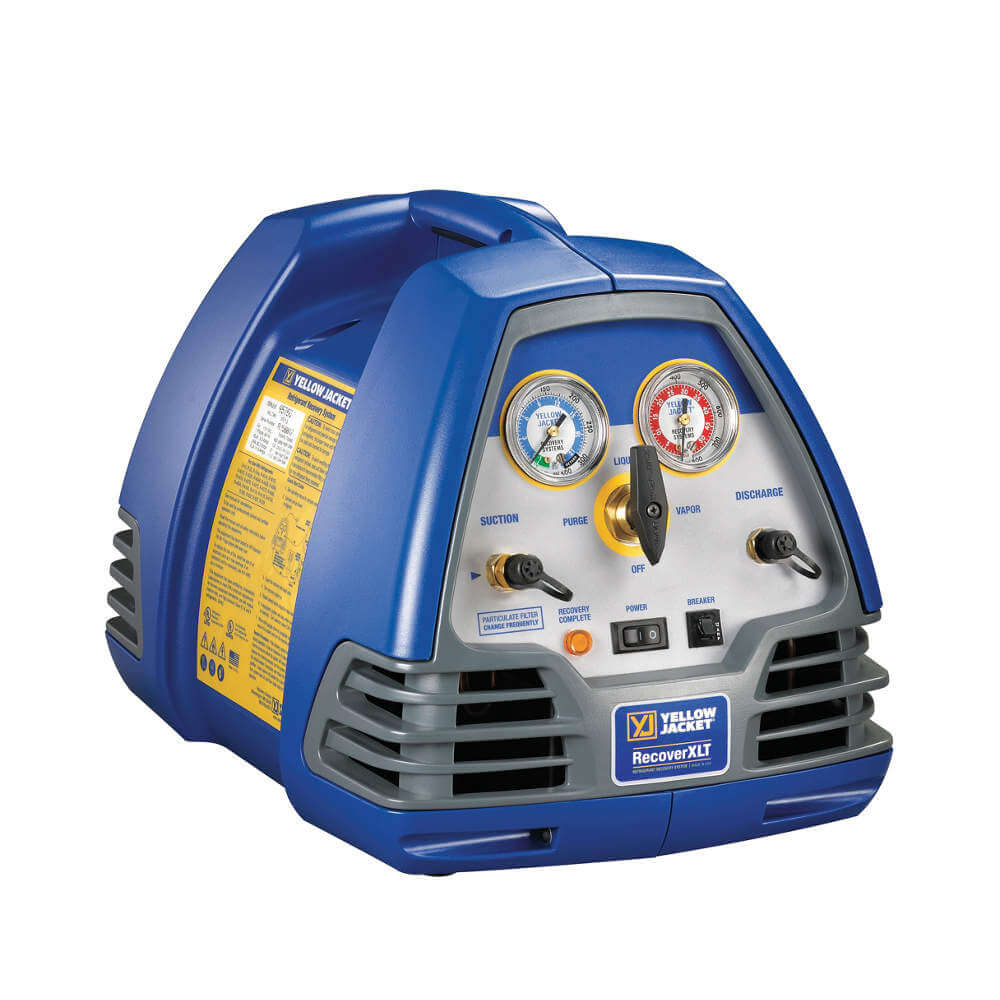

Yellow Jacket 95760 | 1WLG1 | Refrigerant Recovery Machine, 1/2HP, 115V

Q: How to set up this YELLOW JACKET 95760 refrigerant recovery machine?

Firstly, place the machine on a stable surface.Install a clean filter screen or filter / dryer to the inlet fitting.Connect a hose from the liquid port of the recovery cylinder into the outlet fitting on the unit.Connect a hose from the outlet port of a manifold gauge set to the inlet fitting on the unit through the filter / dryer.Connect a hose from the selected system's liquid side to the liquid (low pressure) side of the manifold gauge set.Connect a hose from the system's vapour side to the vapour (high) side of the manifold gauge set.Close all the inlet &amp; outlet valves and place the cylinder on a weighing scale to prevent its overfilling.

Specifications

Item	Refrigerant Recovery Machine
A2l Compatibility	A2L Compatible
Body Material	Plastic
Calibration Certificate Type	Not Certified
Capability	Liquid, Push/Pull, Vapor
Compressor	Oilless
Compressor Type	Oilless
Current	12A
Depth	19 5/16"
For Refrigerant Type	R-12, R-134A, R-22, R-407C, R-410A
Frequency	60/50 Hz
Height	12 1/2"
High Pressure Cut-off	517 psi
Hose Connection Gender	Male
Hose Connection Size	1/4"
Hose Connection Thread Direction	Right Hand
Hose Connection Type	SAE
Includes Tank Overfill Switch	Tank Overfill Switch Not Included
Liquid Recovery Rate - General	2 lbs./min.
Liquid Recovery Rate - R-22	2 lbs./min.
Liquid Recovery Rate - R-410a	2 lbs./min.
Low Pressure Cut-off	15 in. hg
Mobility	Handle
Motor Hp	1/2 hp
Motor Type	Brushless DC

Nema Plug Configuration	5-15P
Number Of Cylinders	2
Number Of Ports	2
Operating Temp. Range	40°F to 120°F
Operating Temperature - Maximum	122°F
Operating Temperature - Minimum	40°F
Overall Height	15"
Overall Length	13 1/2"
Overall Width	13 1/2"
Power Cord Length	6 ft.
Power Source	Plug In
Product Type	Refrigerant Recovery Machine
Promotion Restriction	Not Eligible For Promotion
Push/pull Recovery Rate - General	12.8 lbs./min.
Push/pull Recovery Rate - R-22	12.8 lbs./min.
Push/pull Recovery Rate - R-410a	11.6 lbs./min.
Requires	Connection Hoses And Recovery Tank
Series	RECOVERXLT Series
Vapor Recovery Rate - General	0.4 lbs./min.
Vapor Recovery Rate - R-22	0.4 lbs./min.
Vapor Recovery Rate - R-410a	0.4 lbs./min.
Voltage	100-240V AC
Warranty	1 yr.
Width	12 13/32"
Standards	UL TO ARI 740-98 (ARI 740-95 FOR 95700 AND 95765)

Product Details

YELLOW JACKET 95760 refrigerant recovery machine is employed in HVAC and refrigeration service to safely and efficiently recover refrigerants from systems. It is ideal for technicians involved in refrigeration and HVAC system maintenance to capture and recycle refrigerants, preventing their release into the atmosphere.

Shipping Information

Height (cm)	37.59
Length (cm)	55.88
Width (cm)	40.13

HS Code	8414100000
Country Of Origin	US
Weight (kg)	18.0225

Working Mechanism

Refrigerant recovery machine works by letting users easily switch between liquid and vapour modes using a single valve. It has a built-in compressor that's protected against liquid refrigerant for safety. The machine automatically shuts off at a specific vacuum level (13 or 15 inches, depending on the unit) and restarts when pressure rises, ensuring safe operation. It is compatible with various refrigerants and requires connection hoses and a recovery tank for a complete process. The machine meets industry standards, holding ARI certification for reliable and compliant refrigerant recovery.

Features

YELLOW JACKET 95760 refrigerant recovery machine features a single-valve changeover for easy switching between liquid and vapour to purge operation.
This refrigerant recovery machine comes with a compressor protected against liquid refrigerant, ensuring durability and safe operation.
It is equipped with an automatic shutoff system at 13 or 15 inches of vacuum (depending on the unit) that restarts on pressure rise, enhancing user safety.
This machine offers compatibility with a range of refrigerants, including HP and MP blends, R-114, R-134A, R-22 and others.
It comes with electrical connections featuring a NEMA 5-15p male plug and a hose connection of 1/4 inch for convenient use.
This refrigerant recovery machine requires connection hoses and a recovery tank, ensuring a complete and effective refrigerant recovery process.
It is ARI-certified for use with HFC and CHFC refrigerants, demonstrating compliance with industry standards and ensuring reliability in refrigerant recovery operations.

Standards and Approvals

ISO-9001

Frequently Asked Questions

Why is it necessary to recover refrigerants?

Refrigerants play an essential role in the heat transfer process that allows air conditioning and heating systems to function. Chlorofluorocarbons (CFCs), hydrochlorofluorocarbons (HCFCs) and hydrofluorocarbons are some of the most commonly used refrigerants (HFCs).

What are the three methods of refrigerant recovery?

Vapor recovery, the push-pull method, and the liquid recovery method are the three different recovery methods.
Vapour Recovery: In the vapour recovery method, the refrigerant is eliminated from the HVAC system in a vapour state. The recovery unit then condenses the vapour into a liquid and transfers it to the recovery cylinder.
Push-pull Recovery: This method is used to transfer large amounts of liquid refrigerant. The recovery unit extracts vapour from the recovery cylinder and generates high-pressure discharge gas which forces the liquid out of the HVAC system and back into the recovery cylinder.
Liquid Recovery Method: In the liquid recovery method, refrigerant is transferred while still in the liquid state. Recovering liquid is suitable for recovering large amounts of refrigerant.

What are the most common applications for refrigerants?

To keep production running, refrigerants are used to cool down large data centres and electricity production warehouses. R407C, R410A, R1234ze, and R134a are common refrigerants used for this purpose.

How to set up this YELLOW JACKET 95760 refrigerant recovery machine?

Firstly, place the machine on a stable surface.
Install a clean filter screen or filter / dryer to the inlet fitting.
Connect a hose from the liquid port of the recovery cylinder into the outlet fitting on the unit.
Connect a hose from the outlet port of a manifold gauge set to the inlet fitting on the unit through the filter / dryer.
Connect a hose from the selected system's liquid side to the liquid (low pressure) side of the manifold gauge set.
Connect a hose from the system's vapour side to the vapour (high) side of the manifold gauge set.
Close all the inlet & outlet valves and place the cylinder on a weighing scale to prevent its overfilling.

What type of cylinders are required for YELLOW JACKET 95760 refrigerant recovery machine?

The selected cylinder should be an authorised, refillable refrigerant storage cylinder specs.
Robinair recommends using 400 psi (27.6 bar) cylinders or at least a 350 psi (24.1 bar) cylinder.
Closed cylinders should be filled up to 80% of their volume to prevent personal injury & equipment damage.
Recovery cylinders & filter / dryers should be used with only one refrigerant type.
Refrigerant cylinders should be stored in a cool, dry place.
