| Item | Vacuum Pump |
|---|---|
| Amps | 3A |
| Application | Centrifugal Concentrators, For Schlenk Line Drying Manifolds, Freeze Dryers Up To 6L, Many Other Deep Vacuum Applications, Vacuum Ovens |
| Current Rating | 3A |
| Displacement | 1.2 CFM |
| Fluid Compatibility | Oil Less |
| Free Air Displacement | 5.3 CFM |
| Frequency | 50/60 Hz |
| Inlet Size | 3/8" |
| Inlet Type | NPT |
| Lead-free | No |
| Maximum Discharge Pressure | 0 mbar |
| Maximum Operating Pressure | 0 psi |
| Maximum Operating Temperature | 104°F |
| Maximum Vacuum | 0.07 mbar |
|---|---|
| Minimum Operating Temperature | 50°F |
| Outlet Size | 1/4" |
| Outlet Type | NW25 |
| Output Power | 1/2 hp |
| Overall Height | 18" |
| Overall Length | 18" |
| Overall Width | 9" |
| Phase | 1 |
| Pump Type | Rotary Vane |
| Runs Dry | Yes |
| Sound Level | 57 dBA |
| Valve Type | Gas Ballast |
| Voltage | 115V AC |
| Height (cm) | 78.74 |
|---|---|
| Length (cm) | 91.44 |
| Width (cm) | 91.44 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 27 |
| Style | Model | Voltage | Frequency | Rpm | Displacement | Hp | Overall Width | Outlet Size | Overall Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1400B-01 | 115V AC | 60 Hz | 580 RPM | 0.9 CFM | 1/3 hp | 9" | 7/16" | 12.62" | $4,649.04 | |

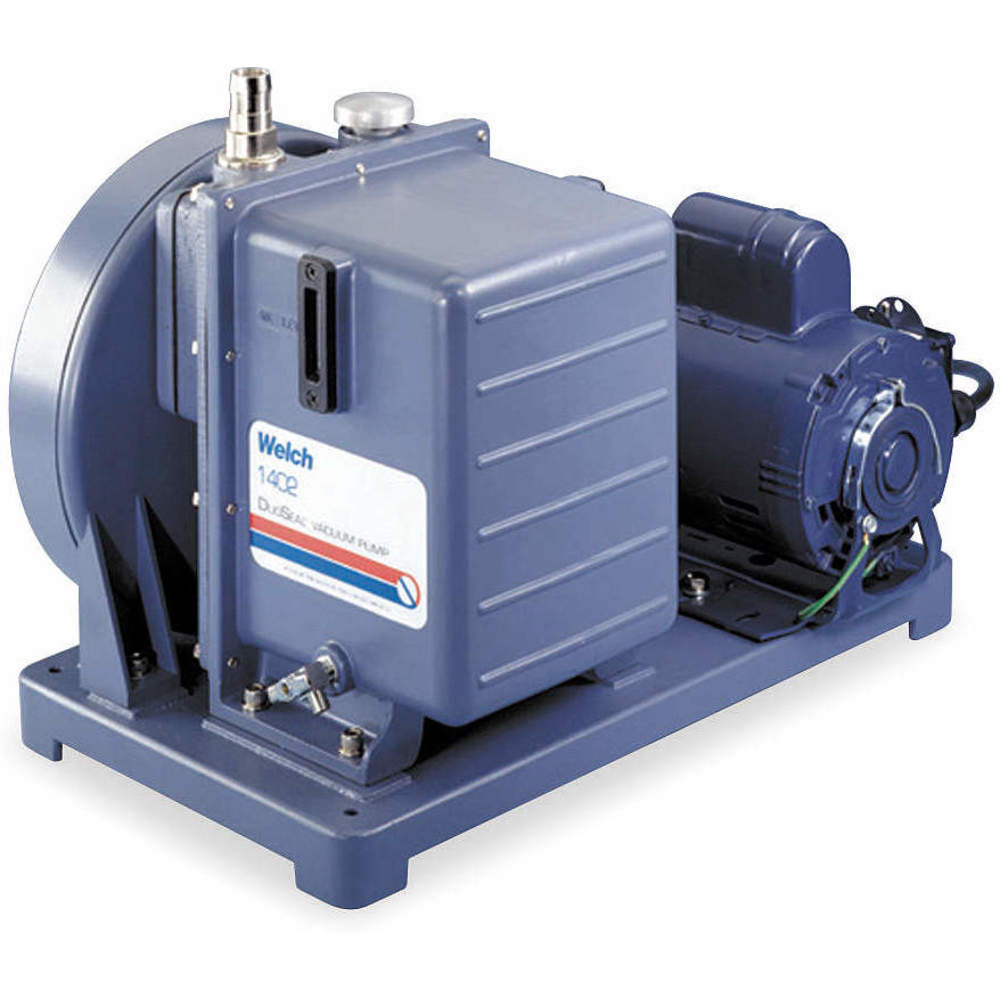

| B | 1402B-01 | 115/230V AC | 50 Hz | 525 RPM | 5.6 CFM | 1/2 hp | 12" | 13/16" | - | $6,767.60 | |
| B | 1376B-01 | 115/230V AC | 50 Hz | 525 RPM | 10.6 CFM | 1 hp | 14.12" | 13/16" | 15.37" | $8,958.44 | |

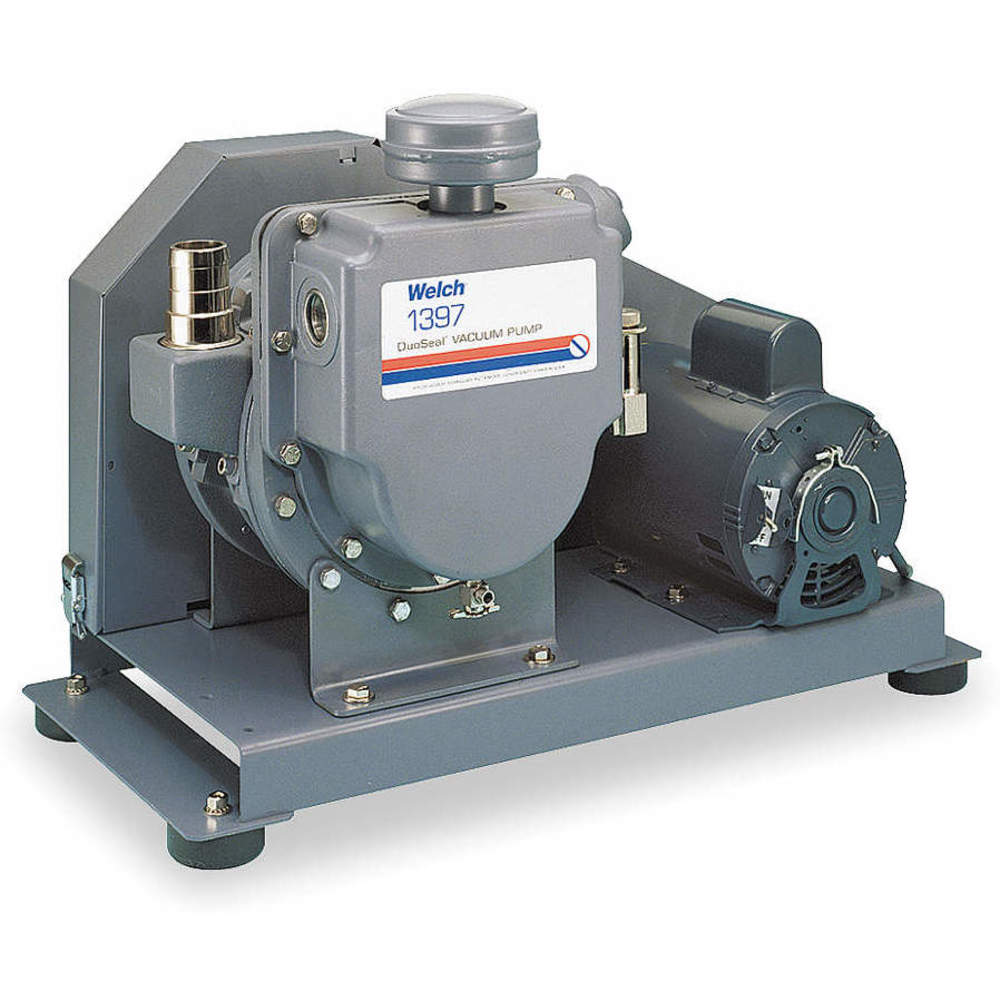

| C | 1397B-01 | 115/230V | - | 400 RPM | 17.7 CFM | 1 hp | 13 3/4" | 1 3/4"-20 | 18 3/4" | $12,364.51 | |

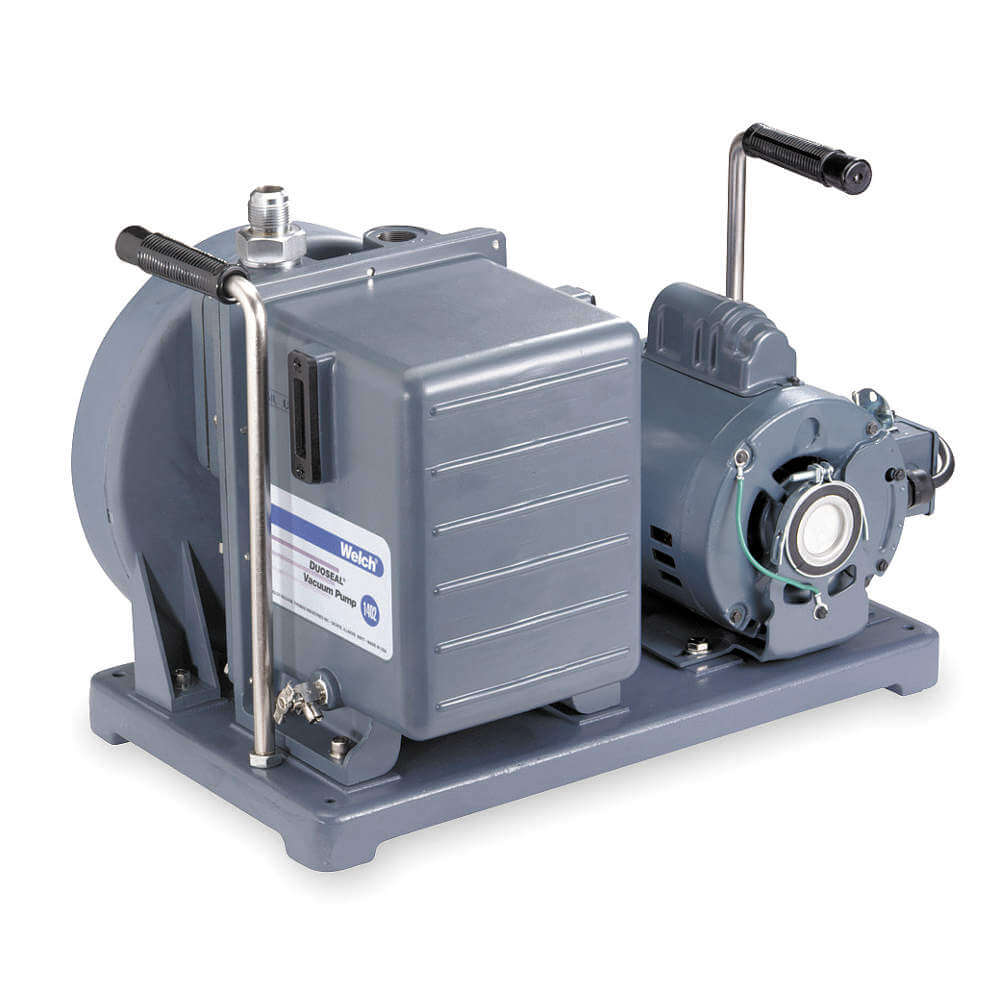

| D | 1402B-46 | 115/230V AC | 50/60 Hz | 525 RPM | 5.6 CFM | - | 12" | 13/16" | 15" | $7,081.04 | |
| E | 3021-01 | 115V AC | 60 Hz | 1740 RPM | - | - | 5 2/5" | 7/16" | 9 1/5" | $4,271.32 |
