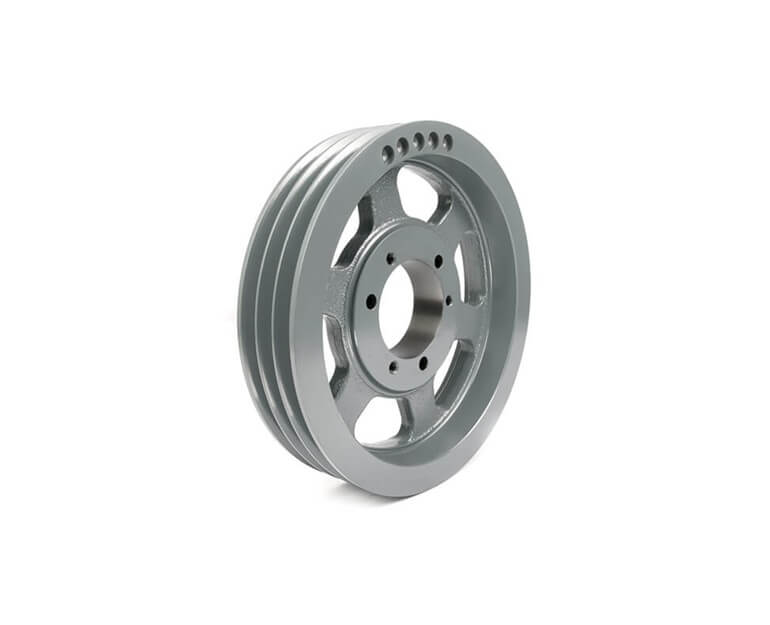

| Item | V-Belt Sheave |
|---|---|
| 5v Belt Pitch Dia. | 16" |
| 5vx Pitch Diameter | 16" |
| Belt Type | 5V |
| Bore Type | Bushed |
| Bushing | E |
| Bushing Required | E |
| C Or Cx Belt Pitch Dia. | 16" |
| Construction | Arm |
| Datum Dia. | 16" |
| Dimension E | 4/25" |
| Dimension L | 2.63" |
| Dimension M | 0.09" |
| Face Width | 2 3/8" |
| For Belt Section | 5V, 5VX |
| For Bushing Size | E |
| For Bushing Type | Quick Detachable |
| For V-belt Type | Wedge, Cogged, Banded |
| Hub Location | 1 1/4" |
|---|---|
| Industry Number | 5V1603 |
| Inside Dia. | 14.13" |
| Length Through Bore | 2 5/8" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. Rpm | 1570 RPM |
| No. Of Grooves | 3 |
| Outside Dia. | 16" |
| Overall Length | 2 5/8" |
| Overall Width | 2 5/8" |
| Pitch Dia. | 16" (5V) |
| Product Type | Narrow |
| Pulley Construction | Spoked |
| Pulley Industry Number | 5V1600 |
| Pulley Series | Narrow Wedge |
| Set Screw Included | No |
| Standards | ISO 9001:2015 CERTIFICATION |
| Height (cm) | 9.4 |
|---|---|
| Length (cm) | 43.18 |
| Width (cm) | 43.69 |
| HS Code | 8483509040 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 17.1 |
