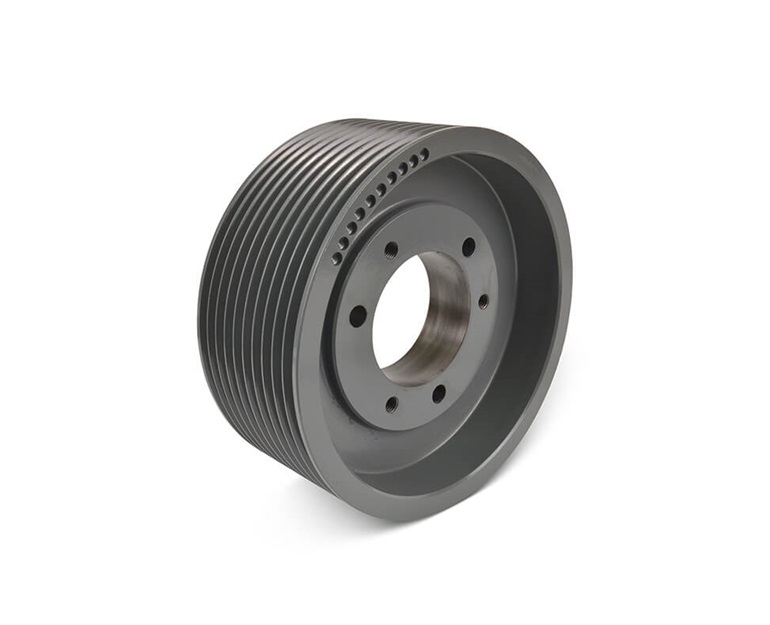

| Item | V-Belt Sheave |
|---|---|
| Balance | Standard, 1 plane |
| Belt Type | 5V |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Diameter | 13.2" |
| Dimension E | 2.31" |
| Dimension L | 4 1/2" |
| Dimension M | 0.38" |
| Face Width | 7.19" |
| Hub Location | 3.56" |
| Inertia Wr | 15.1 lbs.-sq. ft. |
|---|---|
| Inside Dia. | 11.31" |
| Material | Cast Iron |
| Max. Rpm | 1900 RPM |
| Number Of Grooves | 10 |
| Outside Dia. | 13.2" |
| Overall Length | 7.1875" |
| Pitch Dia. | 13.2" |
| Product Type | Narrow |
| Rpm High | 1,900RPM |
| Weight | 80 Lbs. |
| Height (cm) | 33.53 |
|---|---|
| Length (cm) | 33.53 |
| Width (cm) | 18.26 |
|---|---|
| Weight (kg) | 36 |
