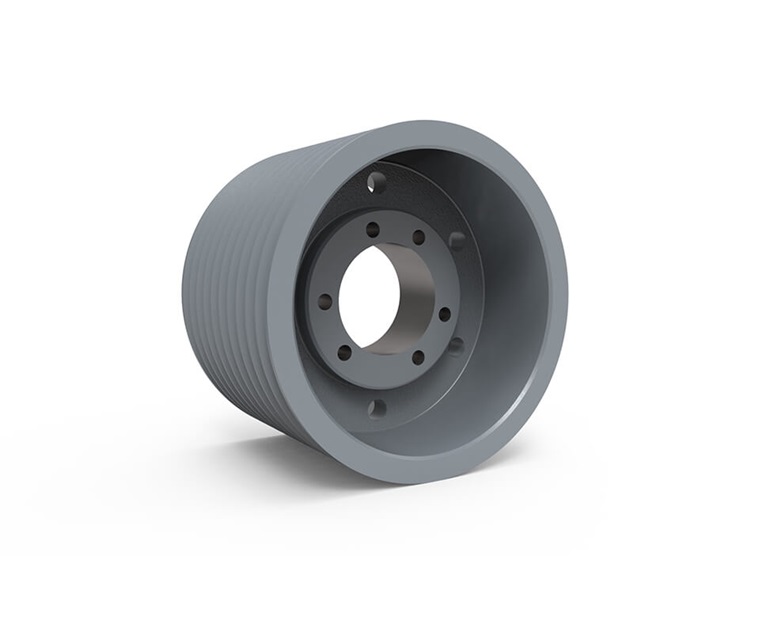

| Item | V-Belt Sheave |
|---|---|
| Belt Type | C |
| Bore Type | Quick Disconnect Bushing |
| Bushing | J |
| Datum Dia. | 14" |
| Dimension E | 2.31" |
| Dimension L | 4 1/2" |
| Dimension M | 3 14/25" |
| Face Width | 10.38" |
| Hub Location | 3 14/25" |
|---|---|
| Inside Dia. | 12 1/4" |
| Material | Cast Iron |
| Max. Rpm | 1740 RPM |
| No. Of Grooves | 10 |
| Outside Dia. | 14 2/5" |
| Overall Length | 10 3/8" |
| Pitch Dia. | 14 2/5" |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 36.58 |
| Width (cm) | 36.58 |
|---|---|
| Weight (kg) | 49.86 |
