| Item | Ball Valve |
|---|---|
| 3-a Compliance | Not Rated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | PVC |
| Body Style | Inline |
| Connection Gender - Side 1 | Male |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 1/8" |
| Connection Size - Side 2 | 1/8" |
| Connection Type | FNPT x MNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| Handle | Wedge |
| Handle Material | PVC |
| Handle Type | Wedge |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 125 psi |
|---|---|
| Media Temp. Range | 20°F to 140°F |
| Nominal Valve Size | 1/8" |
| Nsf Certifications For Food And Drinking Water | NSF 51 |
| Number Of Pieces | 1 |
| Overall Length | 4.16" |
| Pipe Size | 1/8" |
| Port | Full |
| Pressure For Water | 125 psi WOG |
| Seal Material | Buna N |
| Seat Material | Buna-N |
| Standards | Nsf Std 51 |
| Stem Material | PVC |
| Stem Type | Self Lubricating |
| Temp. Range | +20°F to +140°F |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Height (cm) | 3.3 |
|---|---|
| Length (cm) | 5.59 |
| Width (cm) | 4.06 |
| HS Code | 8481805090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0225 |
| Style | Model | Seat Material | Seal Material | Overall Length | Handle | Pipe Size | Connection Type | Stem Material | Handle Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3997890 | Buna-N | Buna N | 2.18" | Wedge | 1/4" | FNPT x MNPT | PVC | PVC | $40.66 | |
| A | 3991190 | FKM | FPM | 2.18" | Wedge | 1/4" | FNPT x MNPT | PVC | PVC | $40.09 | |
| B | 6380490 | Buna-N | Buna N | 2.89" | - | 1/4" | FNPT x MNPT | PVC | PVC | $22.27 | |
| B | 6380990 | Buna-N | Buna N | 2.89" | - | 3/8" | FNPT x MNPT | PVC | PVC | $22.36 | |
| B | 7127790 | FKM | FPM | 2.89" | - | 1/4" | FNPT x MNPT | PVC | PVC | $26.17 | |
| B | PVC 638-6M6F-F | FKM | FKM | 4.16" | - | 3/8" | FNPT x MNPT | PVC | PVC | $28.56 | |

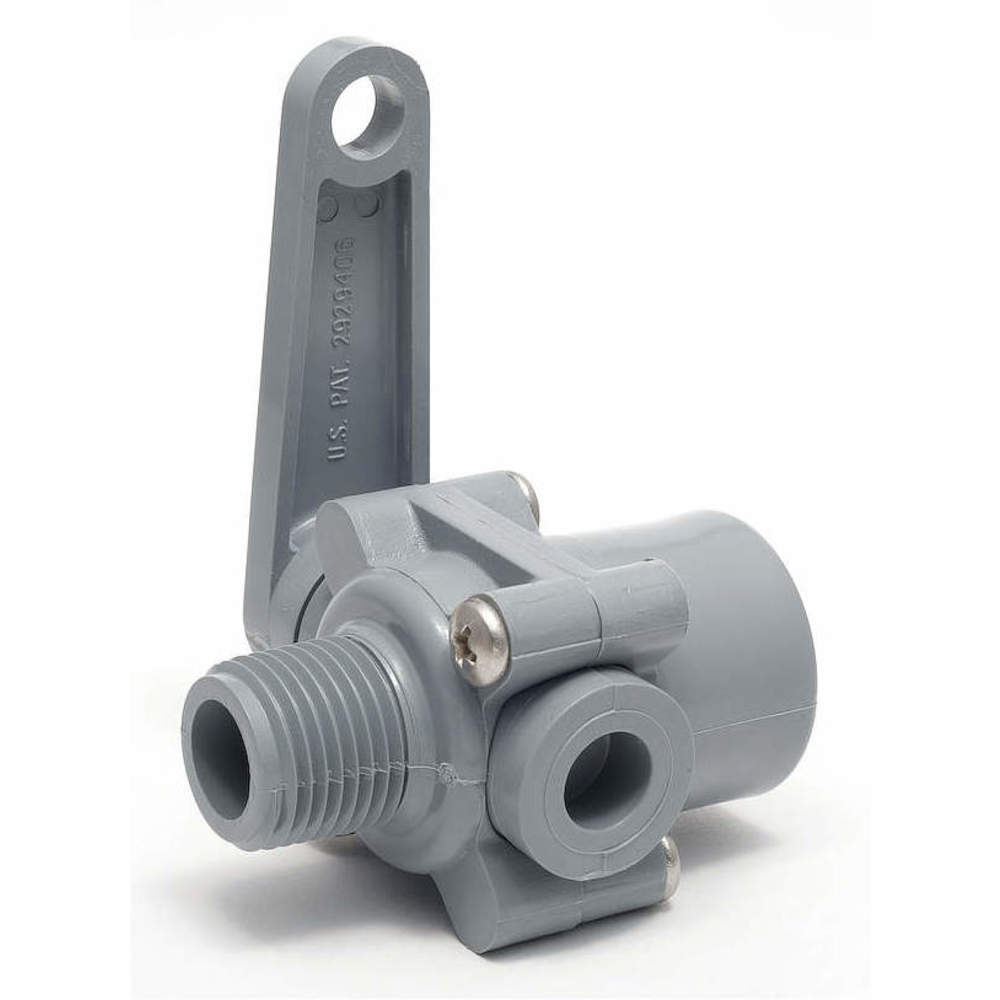

| C | 2270790 | Buna-N | Buna N | 2.62" | Lever | 1/2" | FNPT x MNPT | PVC | PVC | $67.74 |
