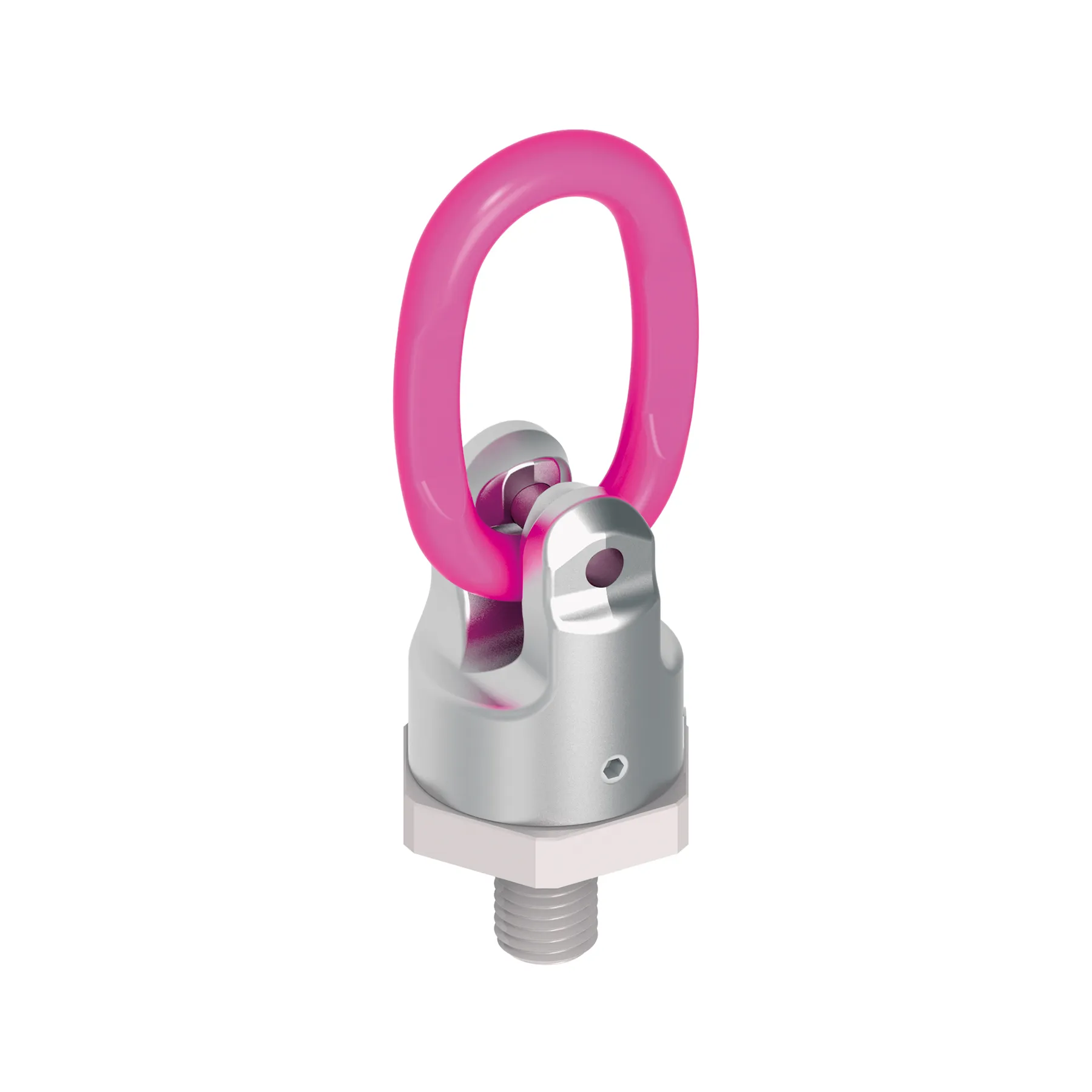

| Item | Hoist Ring |
|---|---|
| Bail Dia. | 23/32" |
| Bail Inside Length | 2 5/8" |
| Bail Inside Width | 2 1/8" |
| Bail Thickness | 23/32" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot, Swivel |
| Installation Torque | 295 lbs.-ft. |
| Load Capacity | 8820 lbs. |
| Material | Steel |
| Max. Operating Temp. | 662°F |
| Mfr. Series | VLBG-Z Series |
| Min. Operating Temp. | -40°F |
| Minimum Installation Torque | 295 lbs.-ft. |
| Mount Type | Screw On |
| Mounting Style | Screw On |
|---|---|
| Nominal Size | 1"-8 |
| Nominal Wll (kg) | 4000 Kg |
| Operation | Lifting |
| Overall Length | 7 1/4" |
| Overall Width | 3 1/4" |
| Pivot Angle | 180° |
| Rotate Angle | 360° |
| Swivel Angle | 360° |
| System Of Measurement | Imperial |
| Thread Projection | 1 5/8" |
| Thread Size | 1"-8 |
| Thread Type | Coarse |
| Usable Thread Length | 1 5/8" |
| Working Load Limit | 8820 lbs. |
| Standards | DGUV-R 109-017:2020-12, DIN EN 1677-1:2009-03, DIN EN 1677-4:2009-03 |
| Height (cm) | 9.5 |
|---|---|
| Length (cm) | 32.99 |
| Width (cm) | 9.5 |
| HS Code | 7318190000 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 1.4895 |
| Style | Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 8504256 | Not Available | 3/8"-16 | Imperial | 180° | 360° | - | 1390 lbs. | $129.20 | |
| A | 8502354 | Not Available | 1 1/4"-8 | Imperial | 180° | 360° | - | 11000 lbs. | $296.70 | |
| A | 8504257 | Not Available | 1 1/2"-6 | Imperial | 180° | 360° | - | 17630 lbs. | $571.50 | |
| A | 8504258 | - | 2"-4.5 | Imperial | 180° | 360° | - | 44090 lbs. | $885.00 | |
| A | 8502349 | Steel | 1/2"-13 | Imperial | 180° | 360° | Powder Coated | 2200 lbs. | $402.71 | |
| A | 8502350 | Steel | 5/8"-11 | Imperial | 180° | 360° | Powder Coated | 3300 lbs. | $455.40 | |
| A | 8502351 | Steel | 3/4"-10 | Imperial | 180° | 360° | Powder Coated | 5500 lbs. | $499.85 |
