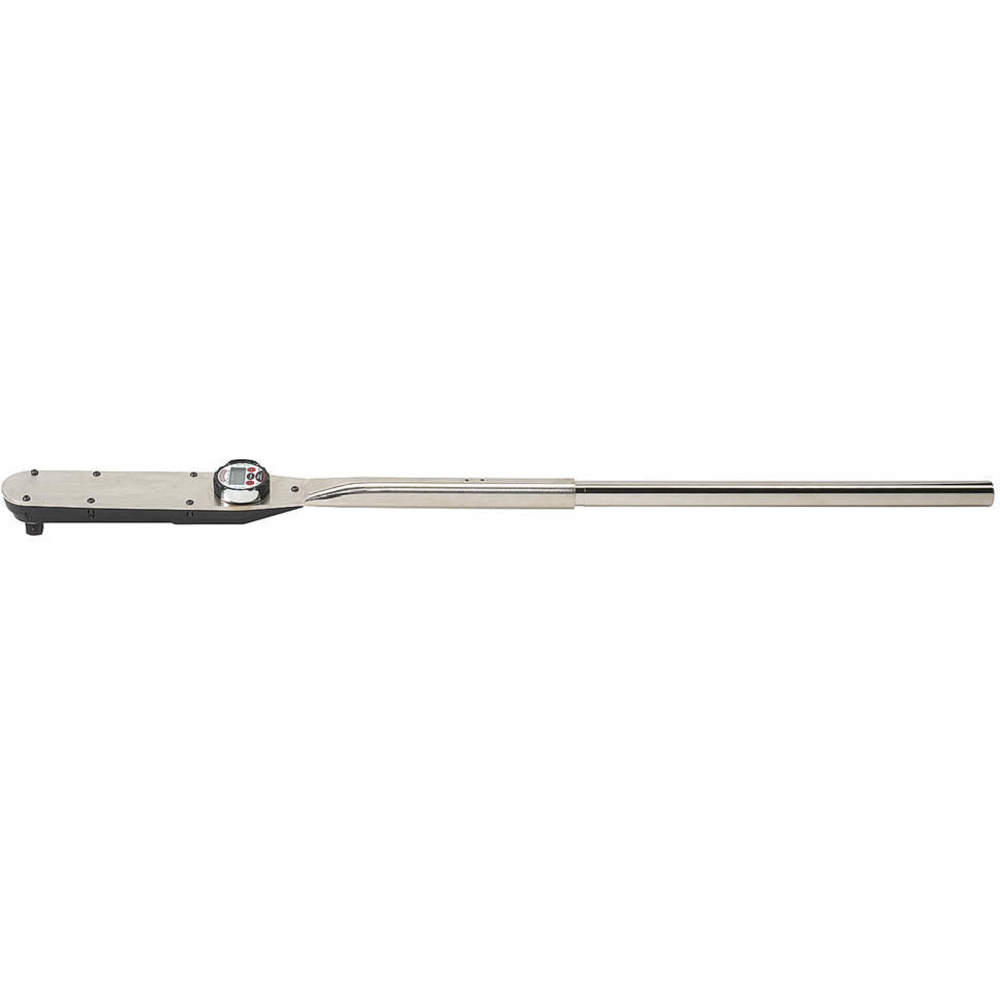

PROTO J6347 Dial Torque Wrench, Steel, 22 Inch Length, 3/4 Inch Drive Size

Item: AD8VZW
Model: J6347
Cross Ref: 4NAJ3
Check Availability
In Stock.

Get it by Thursday, Feb 12

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$3,307.64
10% off
$2,976.88 /unit (ex. VAT)
Add To Cart
Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Payment

Delivery

Specifications

Item Electronic Dial Torque Wrench
Angle Settings 359°
Calibration Certificate Yes
Clockwise Accuracy -1% to +1%
Color Black
Converts ft.-lbs., in.-lbs., N-m
Corrosion Resistance Yes
Counterclockwise Accuracy ±1% CCW
Drive Size 3/4"
Extended Data Testing Yes, Nist
Features High Contrast Rotary Dial Display
Finish Chrome
Graduations 1
Handle Type Ergonomic
Head Type Standard
Includes Blow Molded Case
Insulated No
Material Alloy Steel
Maximum Torque 600 lbs.-ft.
Measurement Type SAE
Minimum Torque 60 lbs.-ft.
Non-sparking No
Overall Length 22"
Overall Width 3"
Power Source (1) 9V Battery
Ratcheting No
Rotation CW/CCW
Torque Adjustability Adjustable
Torque Measurement Type Foot-Pound, In.-Lbs., Newton Meter
Torque Range 60 lbs.-ft. to 600 lbs.-ft.
Torque Range (ft.-lb.) 60 lbs.-ft. to 600 lbs.-ft.
Torque Range (in.-lbs.) 720 lbs. to 7200 lbs.
Torque Range (nm) 81 N-m to 813 N-m
Visual/audible Indicators Audible and Visual
Voltage 9V DC
Standards ASME B107.28

Product Details

    • Designed for use in torque measurement applications; tests, audits and verifies torque applied to joints
    • Comes with an extended operating range in ft lb, in lb and N m units
    • Features a precision accuracy of +/-1% in both directions from 10 to 100% of the full scale
    • Easy-to-read, large digits displayed
    • Has patented rotary bezel for easy viewing
    • Torque target zone can be adjusted from 1 to 10% and is used to indicate when the desired torque limit approaches: yellow indicates the low end of the zone, green light & buzzer sound when the target is reached and red light with an intermittent buzzer indicate over-torque
    • Meets ASME B107.28 standards

Shipping Information

Height (cm) 10.16
Length (cm) 55.88
Width (cm) 7.62
HS Code 8204110060
Country Of Origin US
Weight (kg) 5.985
