| Item | Rotary Vane Pump |
|---|---|
| Body Material | Brass |
| Drive | Single Flat |
| Dry Suction Lift | 3.28 ft. |
| Dry Weight | 4.5 lbs. |
| Flow Rate @ 100 Psi | 263 GPH |
| Flow Rate @ 150 Psi | 261 GPH |
| Flow Rate @ 200 Psi | 259 GPH |
| Flow Rate @ 250 Psi | 257 GPH |
| Flow Rate @ 50 Psi | 265 GPH |
| Hp | 43/50 hp |
| Hp @ 100 Psi | 43/100 hp |
| Hp @ 150 Psi | 63/100 hp |
| Hp @ 200 Psi | 41/50 hp |
| Hp @ 250 Psi | 1 1/100 hp |
| Hp @ 50 Psi | 6/25 hp |
| Inlet Size | 1/2" |
| Max. Flow Rate | 12.5 LPM |
| Max. Motor Speed | 2400 RPM |
| Max. Operating Pressure | 60 psi |
| Max. Operating Temp. | 160°F |
| Max. Relief Pressure | 250 psi |
|---|---|
| Max. Viscosity | 100 cPS |
| Min. Operating Temp. | -4°F |
| Min. Rpm | 1000 RPM |
| Mounting Type | Bolt On |
| Noise Level | 60 dBA |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Ph Range | 6 pH |
| Relief Valve Pressure | 250 psi |
| Rotation | Clockwise |
| Rotor Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
| Series | 4 Series |
| Shaft Material | Stainless Steel |
| Static Pressure | 100 psi |
| Tds Resolution | 5000 ppm |
| Valve Configuration | Standard Non External Adjust |
| Valve Type | Solid Ultem |
| Wet Suction Lift | 6.6 ft. |

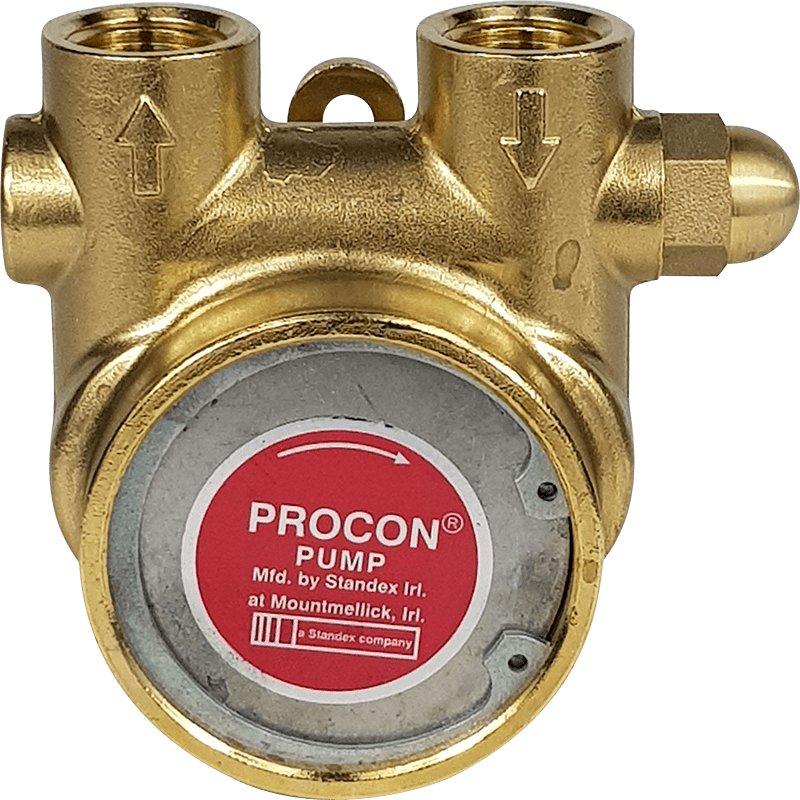

Procon 104E265G12BA rotary vane pump uses a series of vanes mounted on a rotor to create a vacuum or pressurise fluids. This pump is commonly used for vacuum packaging, refrigeration, air conditioning systems and automotive power brakes.
| Height (cm) | 10.97 |
|---|---|
| Length (cm) | 9.73 |
| Width (cm) | 10.41 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.584 |
Procon 104E265G12BA rotary vane pump makes only 60 dB.
The main components of a rotary vane pump include the rotor, vanes, housing or cavity and intake & exhaust ports.
Routine maintenance for a rotary vane pump includes checking & replacing worn vanes, inspecting seals for leaks, cleaning the pump internals and changing the pump oil regularly.
| Style | Model | Mounting Type | Max. Flow Rate | Max. Operating Pressure | Seal Material | Flow Rate @ 150 Psi | Flow Rate @ 200 Psi | Flow Rate @ 50 Psi | Flow Rate @ 100 Psi | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 114B190F11BA | Carbonator Clamp | 190 GPH | 150 psi | Carbon, Ceramic | 186 GPH | 182 GPH | 193 GPH | 190 GPH | $233.67 | |
| A | 114B240F11BA | Carbonator Clamp | 240 GPH | 150 psi | Carbon, Ceramic | 236 GPH | 232 GPH | 243 GPH | 240 GPH | $233.67 | |

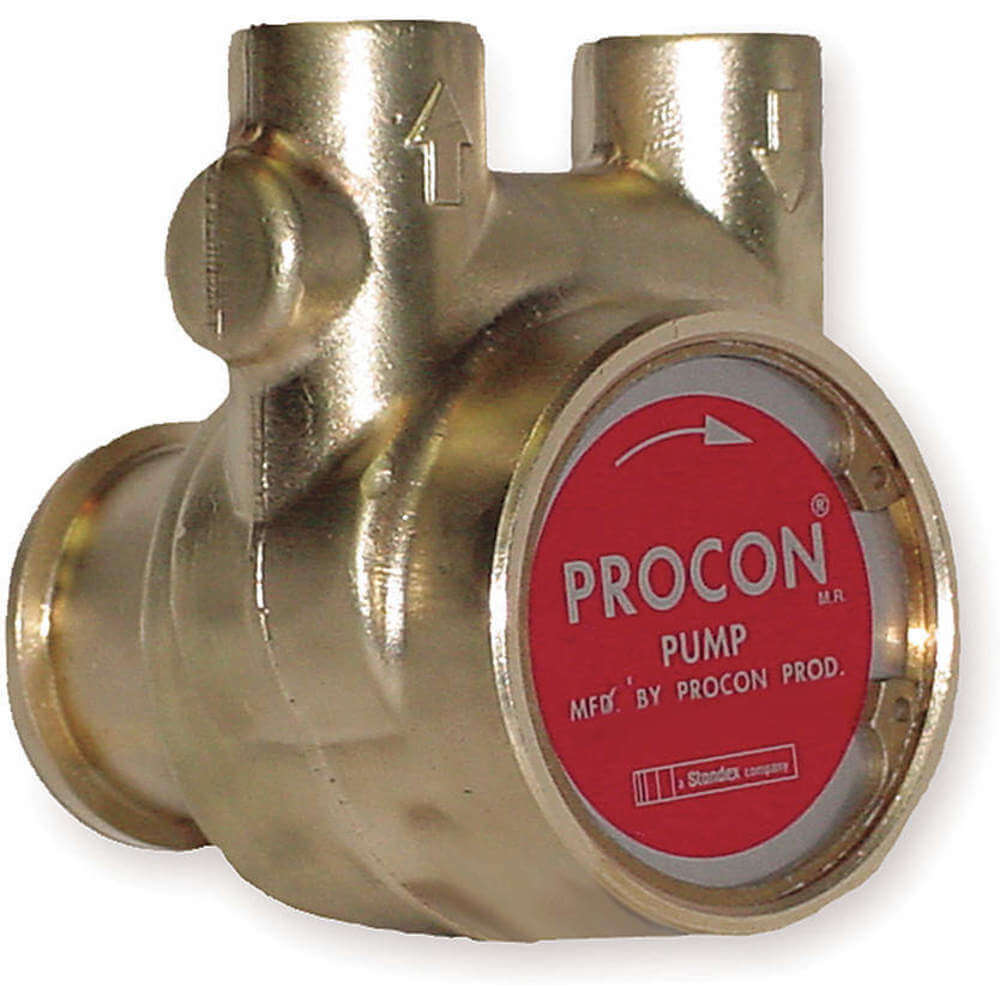

| B | 114B330F11XX | Carbonator Clamp | 330 GPH | 250 psi | Carbon, Ceramic | 328 GPH | 327 GPH | 331 GPH | 330 GPH | $232.88 | |

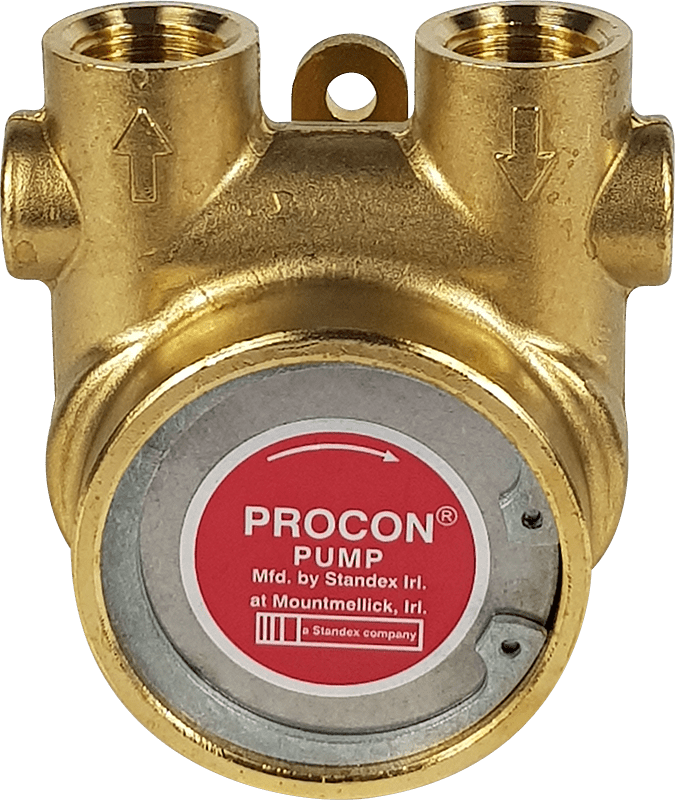

| C | 114E330F11XX | Bolt On | 12.5 LPM | 250 psi | Carbon Ceramic | 328 GPH | 327 GPH | 331 GPH | 330 GPH | $167.47 | |

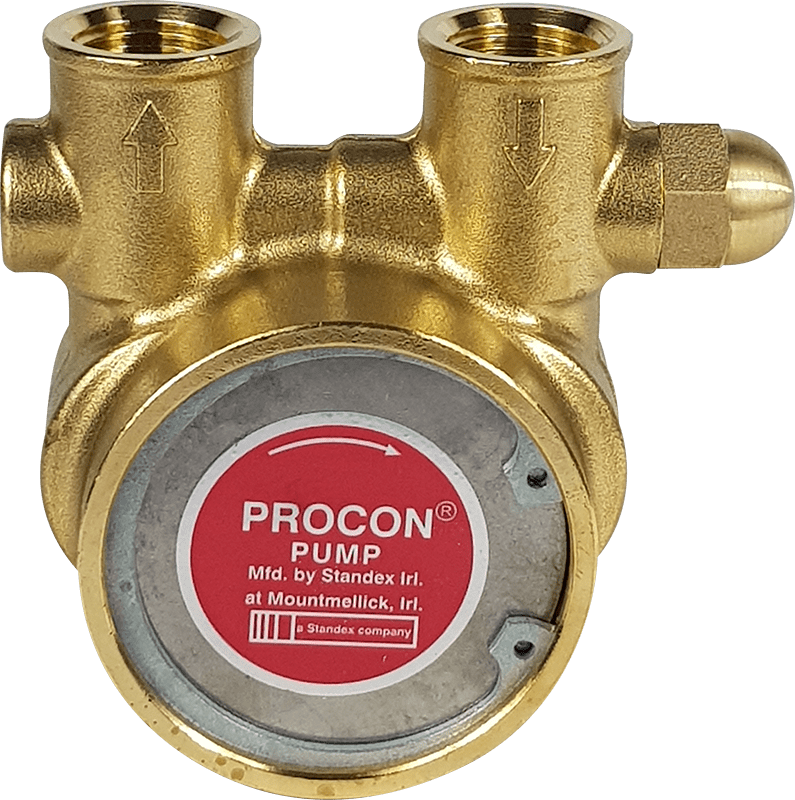

| D | 104B240F11BC | Clamp On | 240 GPH | 150 psi | Carbon Ceramic | 236 GPH | 232 GPH | 243 GPH | 240 GPH | $169.99 |
