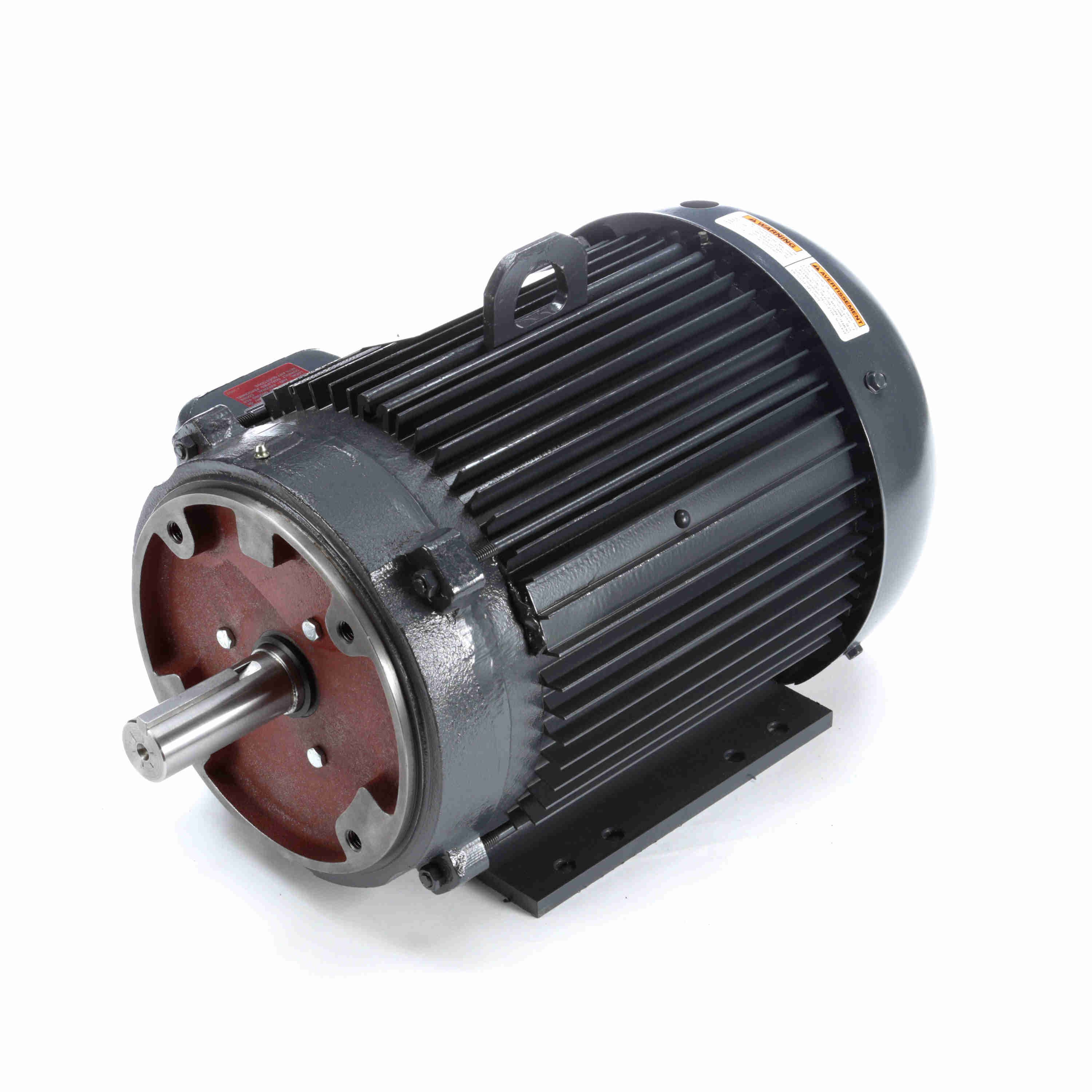

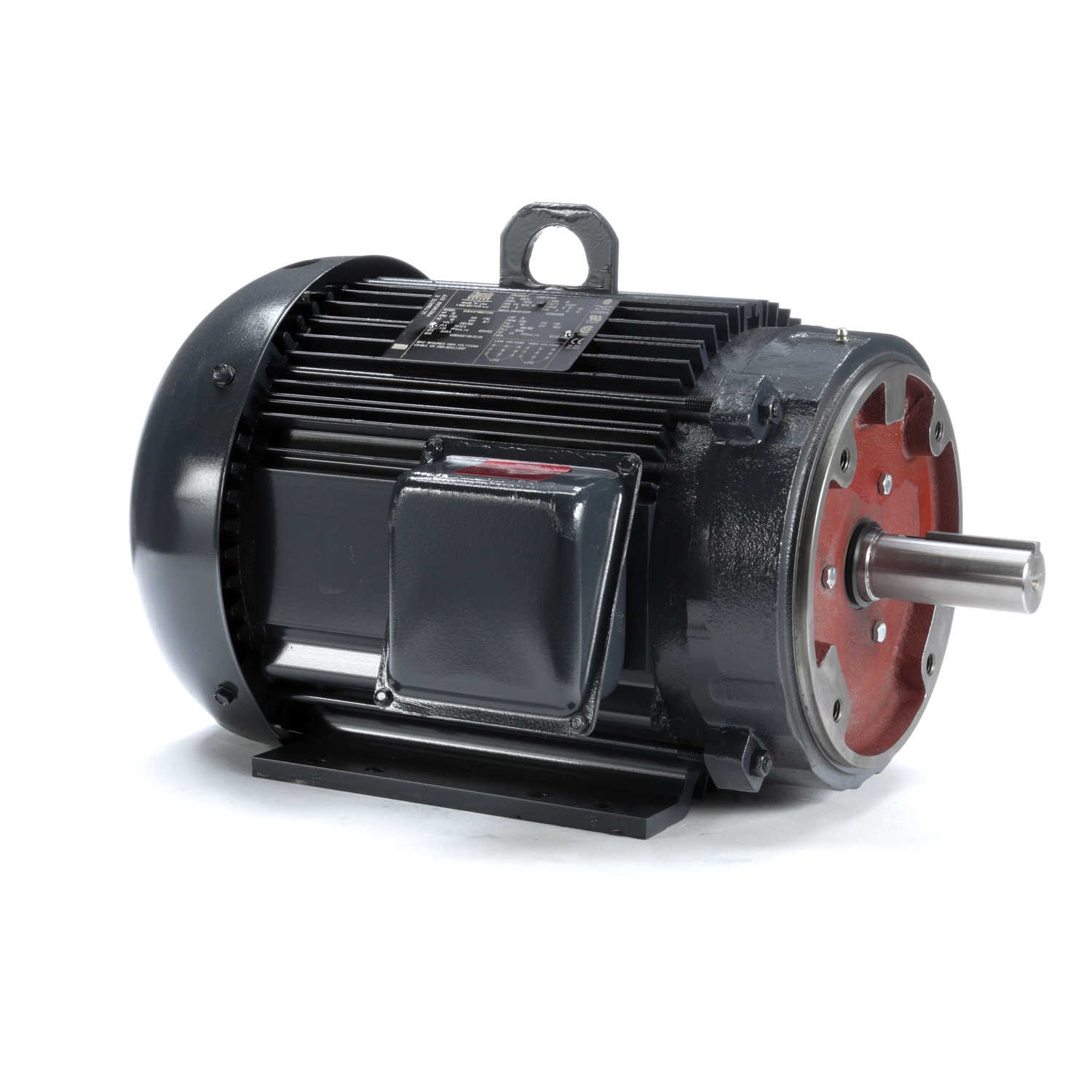

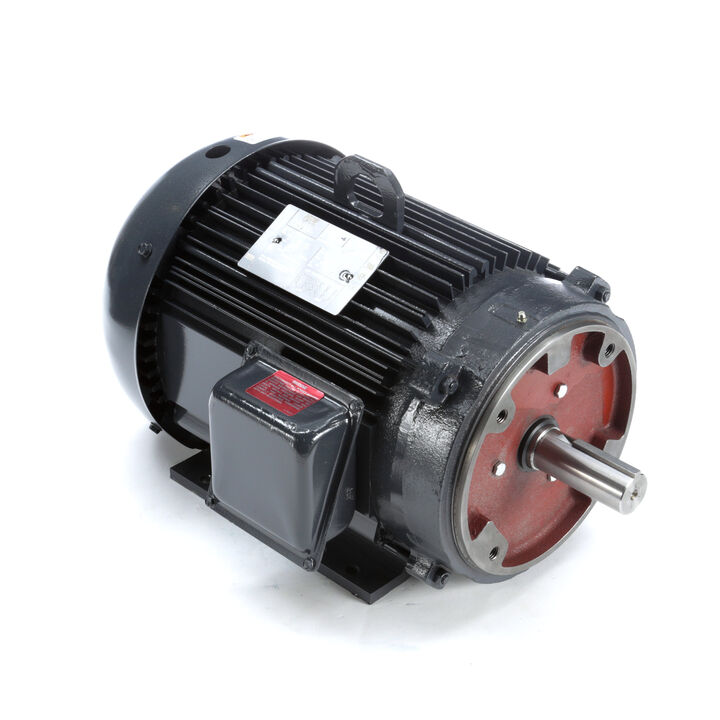

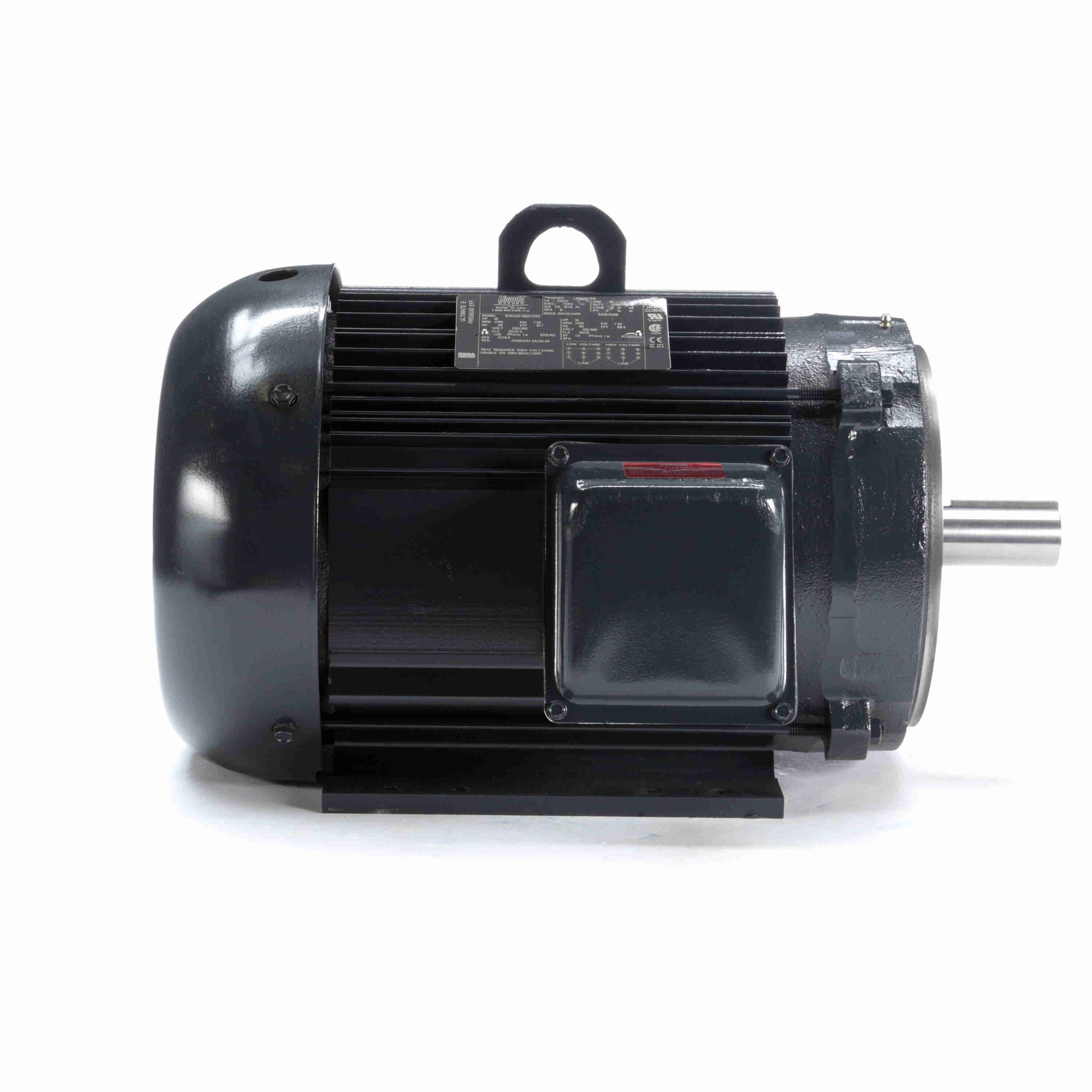

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 25/12.5A |
| Assembly/box Mounting | F1, F2 Capable |
| Cc Number | CC004A |
| Code | G |
| Curvepoint | Full Load |
| Design Code | B |
| Drive End Bearing Size | 6208 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 90.2% |
| Efficiency @ 100% | 91.7% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 215TC |
| Frame Length | 9 1/2" |
| Frame Material | Aluminum |
| Frame Size | 215TC |
| Frame Suffix | Tc |
| Frequency | 50/60 Hz |
| Full Load Amps | 15/30A |
| Hazardous Location | Not Available |
| Hp | 10 hp |
| Insulation Class | Class F |
| Ip Code | 43 |
| Kw | 7.5 kW |
| Load | 1.25 |
| Lubrication | Standard |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
|---|---|
| Mounting Type | Rigid |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, G |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Outline | B-SS330102LN-950 |
| Output Kw | 7.5 kW |
| Overall Length | 19.57" |
| Packaging | B |
| Paint | Standard |
| Phase | 3 |
| Power Factor | 82 |
| Resistance Main | 0.894 ohms |
| Rotation Type | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Service Factor Amps | 15.5A |
| Shaft Dia. | 1 3/8" |
| Shaft Extension | 3.38" |
| Shaft Type | T |
| Speed Range | Not Available |
| Starting Method | Across The Line |
| Synchronous Rpm | 1800/1500 RPM |
| Thermal Protection | No Protection |
| Torque | 29.8 lbs.-ft. |
| Torquepct | 100 |
| Type | TFL |
| Voltage | 230/460V |
| Winding | K2154249 |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 57.15 |
| Width (cm) | 42.7 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 67.5 |
