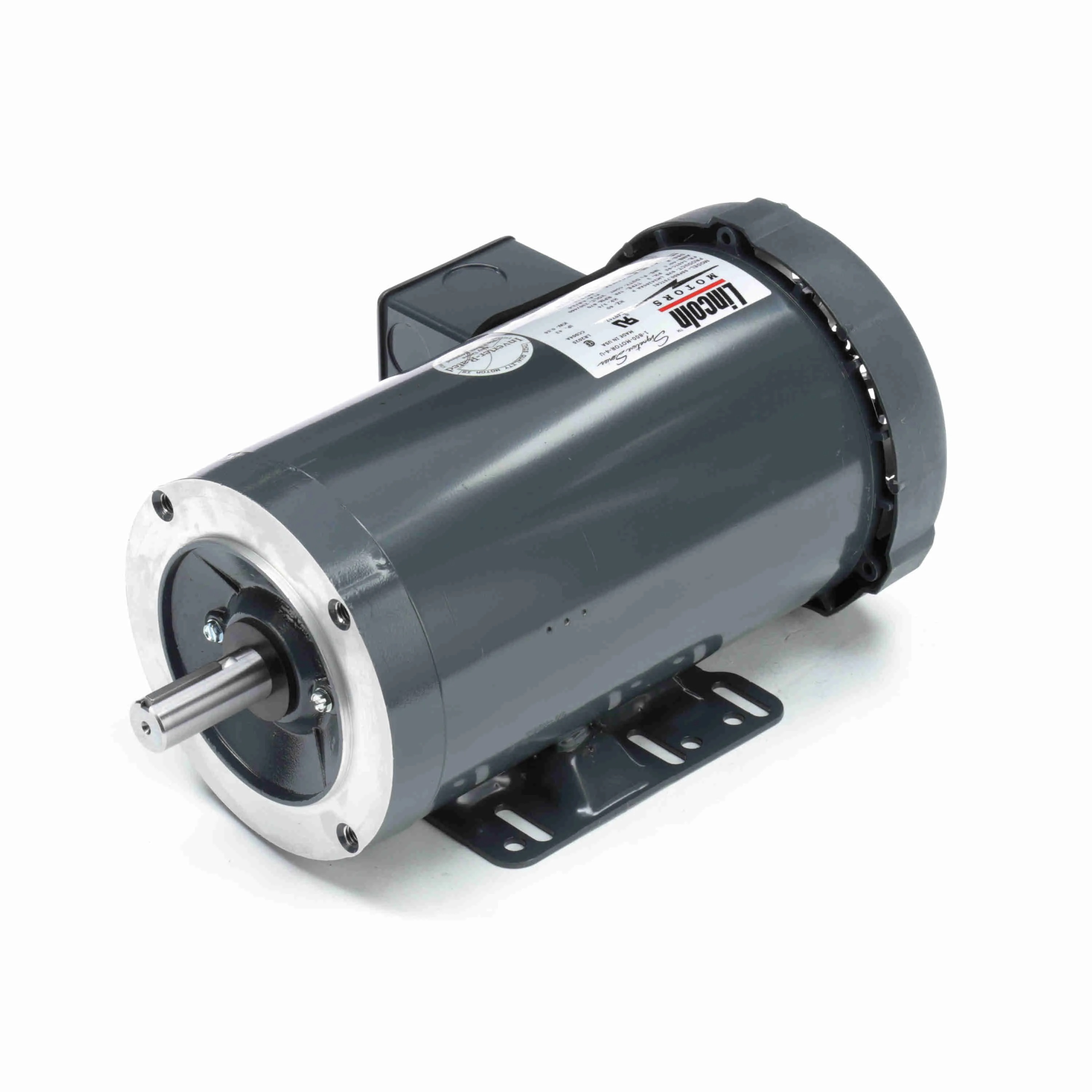

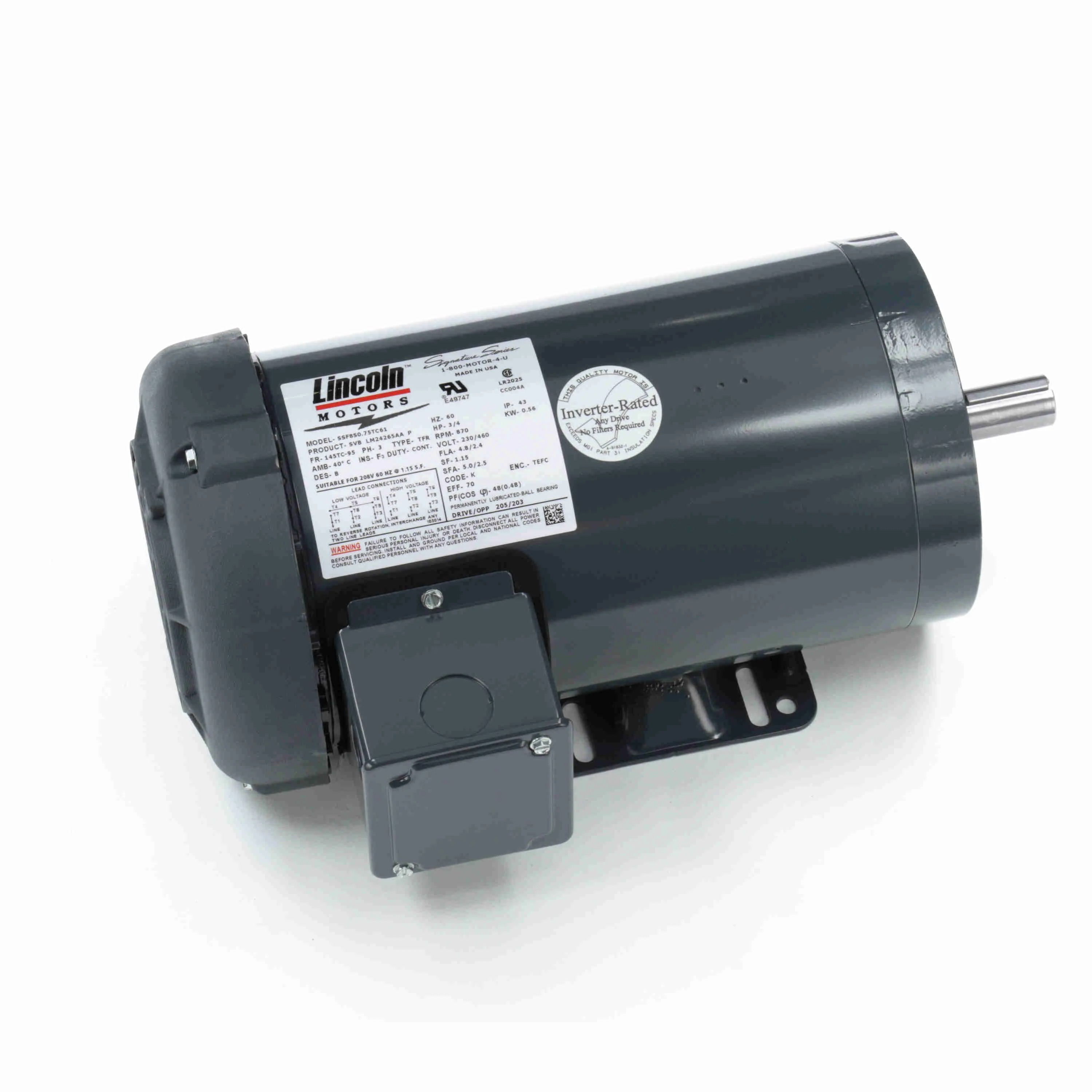

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 2.4/4.8A |
| Assembly/box Mounting | F1 Only |
| Code | K |
| Curvepoint | Pull Up |
| Design Code | B |
| Drive End Bearing Size | 205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Efficiency @ 100% | 70% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 9 14/25" |
| Frame Material | Rolled Steel |
| Frame Size | 145TC |
| Frame Suffix | Tc |
| Frequency | 60 Hz |
| Full Load Amps | 2.4A |
| Grease Type | Polyrex EM |
| Hazardous Location | Not Available |
| Height | 8 3/25" |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Inverter Type | Not Available |
| Ip Code | 43 |
| Kva Code | H |
| Kw | 0.56 kW |
| Length | 19 22/25" |
| Load | 1 |
| Lubrication | Standard |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
|---|---|
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid |
| Nameplate Rpm | 900 RPM |
| Nema Design | B, H |
| No. Of Poles | 8 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 203 |
| Opp. Drive End Bearing Type | Ball |
| Outline | A-100106LN-956 |
| Output Kw | 0.56 kW |
| Overall Length | 14.37" |
| Packaging | B |
| Paint | UNK |
| Phase | 3 |
| Power Factor | 57.3 |
| Resistance Main | 21 ohms |
| Rotation Type | Reversible |
| Rpm | 835 RPM |
| Service Factor | 1.15 |
| Service Factor Amps | 2.5A |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Speed Range | Unk |
| Starting Method | Across The Line |
| Synchronous Rpm | 900 RPM |
| Thermal Protection | No Protection |
| Torque | 12 lbs.-ft. |
| Torquepct | 273 |
| Type | TFR |
| Voltage | 230/460V |
| Winding | ZT800 |
| Height (cm) | 20.62 |
|---|---|
| Length (cm) | 50.5 |
| Width (cm) | 26.04 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 23.4 |
