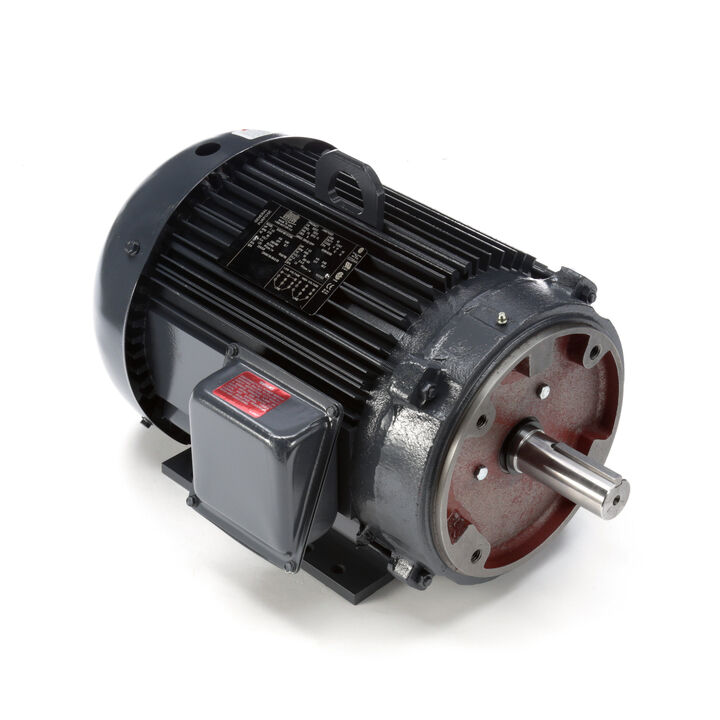

| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 40°C |
| Amps | 23.6/21/11.8/10.5A |
| Assembly/box Mounting | F1, F2 Capable |
| Code | H |
| Curvepoint | Pull Up |
| Design Code | B |
| Drive End Bearing Size | 208 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 91.7%, 92% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Footnotes | A, US |
| Frame | 215TC |
| Frame Length | 10 1/2" |
| Frame Material | Aluminum |
| Frame Size | 215TC |
| Frame Suffix | Tc |
| Frequency | 50/60 Hz |
| Full Load Amps | 23.6/11.8A |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Load Ratio | 20:1 |
| Inverter Load Type | Variable |
| Ip Code | 43 |
| Kva Code | H |
| Load | 0.75 |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
|---|---|
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600/3000 RPM |
| Nema Design | B, H |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 7.5 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 87 |
| Resistance Main | 0.8 ohms |
| Rotation Type | Reversible |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15, 1.25 |
| Shaft Extension | 3 3/25" |
| Shaft Type | T |
| Starting Method | Line Or Inverter |
| Synchronous Rpm | 3600/3000 RPM |
| Thermal Protection | No Protection |
| Torque | 27 lbs.-ft. |
| Torquepct | 181 |
| Type | TFL |
| Voltage | 230/460V |
| Height (cm) | 35.56 |
|---|---|
| Length (cm) | 57.15 |
| Width (cm) | 42.7 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 67.5 |
